China 5.5kw 5kw solar system off grid solar power systems with high efficiency inverter solar power system for sale

5.5kw 5kw solar system off grid solar power systems with high efficiency inverter solar power system

Name: 5.5kw 5kw solar system off grid solar power systems with high efficiency inverter solar power system
Brand: TTN New Energy Technology (Wenzhou) Co., Ltd

Price Negotiable

Price: $420.00/pieces 1-49 pieces

MOQ: Negotiable

Delivery Time: Negotiable

Brand: TTN

Product Description

Products Description

TTN Hybrid Inverter

An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.

The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.

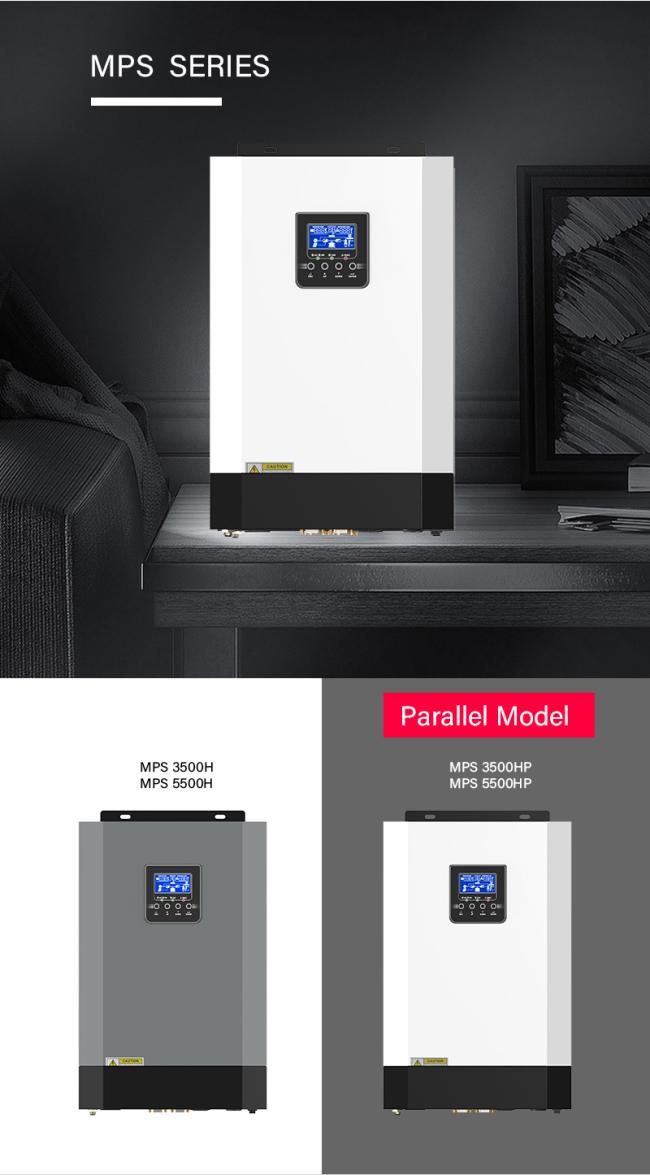

TTN-MPS-H/TTN-MPS-HP

Higher yields / Safe & Reliable / Smart / User-friendly

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

•High efficiency pure sine wave inverter(PF=1);
• Wide PV input range(120Vdc--500Vdc)110A MPPT SCC;
•Surges to 2X continuous power for 5 seconds for motor loads.
• Intelligent functionality enables utility and solar input prioritication
•Wide utility input range(90Vac--280Vac)for unreliable grid even
• In the most challenging environments.
• Field serviceable with replacement boards and spare parts.
• Monitor,troubleshoot,or communication with USB/RS232.
•System configures quickly into compact,wall-mounted system.
• Working without batteries in sun day
• Remote LCD panel(Optional)

Note:

How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.
For details, please refer to the manual recommendation or consult online customer service.

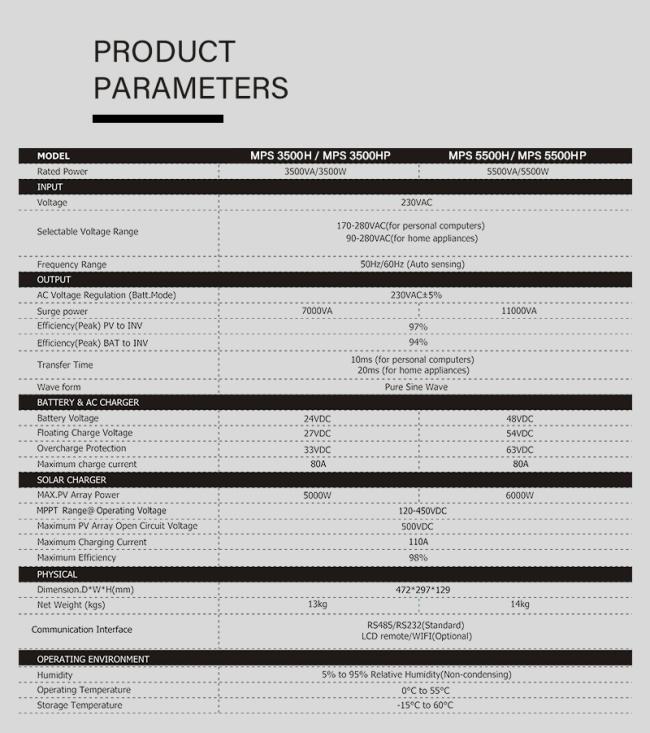

Model No.			TTN-MPS 3500H/MPS 3500HP	TTN-MPS 5500H/MPS 5500HP
Rated power			3500VA /3500W	5500VA /5500W
Input	voltage	230VAC
		selectable voltage range	170-280VAC(For Personal Computers) 90-280Vac(For Home Appliances)
		Frequency range	50Hz/60Hz(Auto Sensing)
Output	AC voltage regulation (Batt.mode)	230VAC ±5%
		Surge power	7000VA	11000VA
		Efficiency (peak)PV to INV.	97%
		Efficiency (peak)Battery to INV.	94%
		transfer time	10 ms(For Personal Computers);20ms(For Home Appliances)
		waveform	Pure sine wave
Battery&AC charger	battery voltage	24VDC	48VDC
		floating charge voltage	27VDC	54VDC
		overcharge protection	33VDC	63VDC
		maximum charge current	80A	80A
Solar charger	MAX PV array power	5000W	6000W
		MPPT range@ operating voltage	120~450VDC
		maximum PV array open circuit voltage	500VDC
		maximum charging current	110A
		maximum efficiency	98%
Physical	Dimension, DWH(mm)	472297129
		Net weight (kgs)	13	14

		Communication interface	RS485/RS232(Standard) LCD remote/WIFI(Optional)
operating Environment	humidity	5% to 95% Relative Humidity(Non-condensing)
		operating temperature	0℃ to 55℃
		storage temperature	-15℃ to 60℃

NOTE 1: This is a wide voltage Hybrid inverter. The voltage that starts to connect to the solar panel must be above 150V for the Hybrid inverter to work normally.
NOTE 2: This Hybrid Inverter supports the WIFI function but without the WIFI Monitor.
