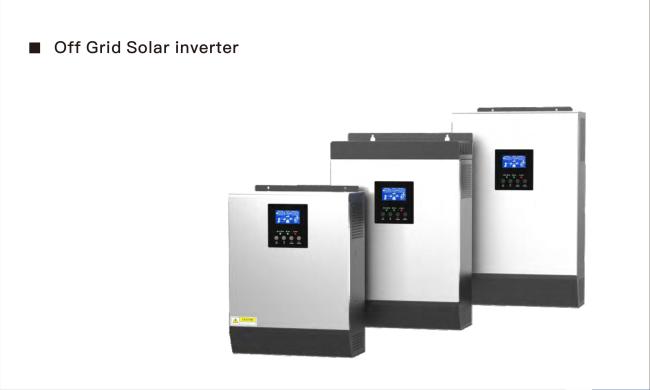

3kVA 3kW 3000W 24Vdc 230Vac With 50A PWM Controller Hybrid Solar Inverter Wall Mountable
Price:
$152.55/units 10-99 units
MOQ:
10 units
Delivery Time:
Negotiable
Brand:
TNN
Product Description
MODEL | PS PLUS 1K-12 | PS PLUS 1.5K-24 | PS PLUS 3K-24 | PS PLUS 5K-48 | |||
Rated Power | 1000VA/1000W | 1500VA/1500W | 3000vA/3000W | 5000VA/5000W | |||
INPUT | |||||||
Voltage | 230VAC | ||||||
Voltage Select | 170-280VAC(for personal computers) selectable voltage Range 90-280VAC(for home appliances) | ||||||
Frequency Range | 50Hz/60Hz(Auto sensing) | ||||||
OUTPUT | |||||||
AC Voltage Reguiation (Batt.Mode) | 230VAC士5% | ||||||
Surge power | 2000VA | 3000VA | 6000VA | 10000VA | |||
Transfer Time | 10 ms (for personal computers) 20 ms(for home appliances) | ||||||
Wave form | Pure Sine Wave | ||||||
BATTERY & AC CHARGER | |||||||
Battery Voltage | 12VDC | 24VDC | 24VDC | 48VDC | |||
Floating Charge Voltage | 13.5VDC | 27VDC | 27VDC | 54VDC | |||
Overcharge Protection | 15.0VDC | 30VDC | 30VDC | 60VDC | |||
Maximum charge current | 10A/20A | 20A/30A | 20A/30A | 10A/20A/30A/40A/50A/60A | |||
SOLAR CHARGER & AC CHARGER | |||||||
Charging Current | |||||||
Maximum Pv Array Open Circuit Voltage | 40VDC | 80VDC | 80VDC | 105VDC | |||
PV Range @ operating voltage | 15-18VDC | 39-32VDC | 30-40VDC | 60-105VDC | |||
Standby Power Consumption | 1w | 2w | 2w | 3w | |||
PHYSICAL | 2w | 2w | 3w | ||||
Dimension.D*W*H(mm) | 240*327.6*110 | 368*272*100 | 368*272*100 | 467.6*295*120 | |||
Net Weight (kgs) | 4.5kg | 5.5kg | 6.9kg | 9.8kg | |||
OPERATING ENVIRONMENT | |||||||
Humidity | 5% to 95%Relative Humidity(Non-condensing) | ||||||
Operating Temperature | 0°c to 55℃ | ||||||
Storage Temperature | -15°c to 60°c | ||||||
