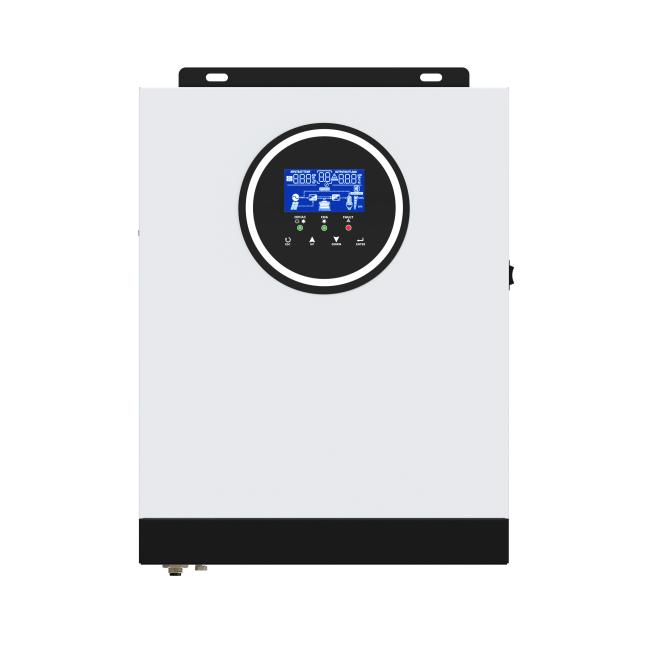

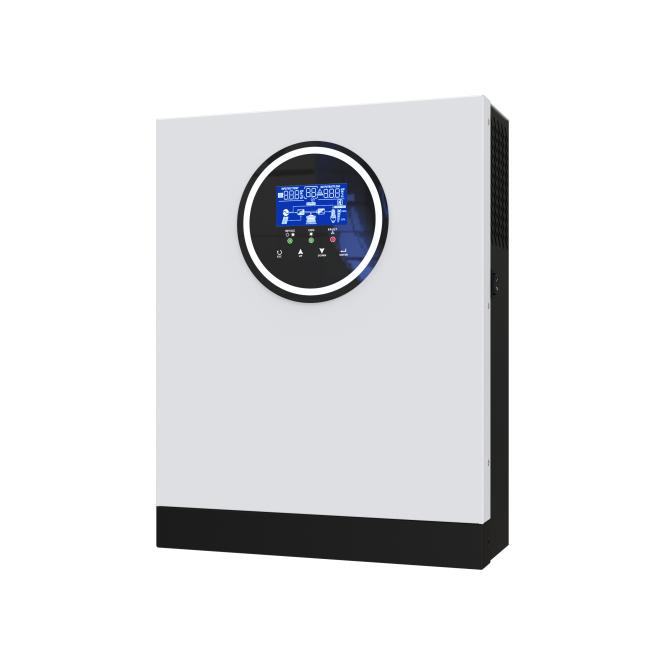

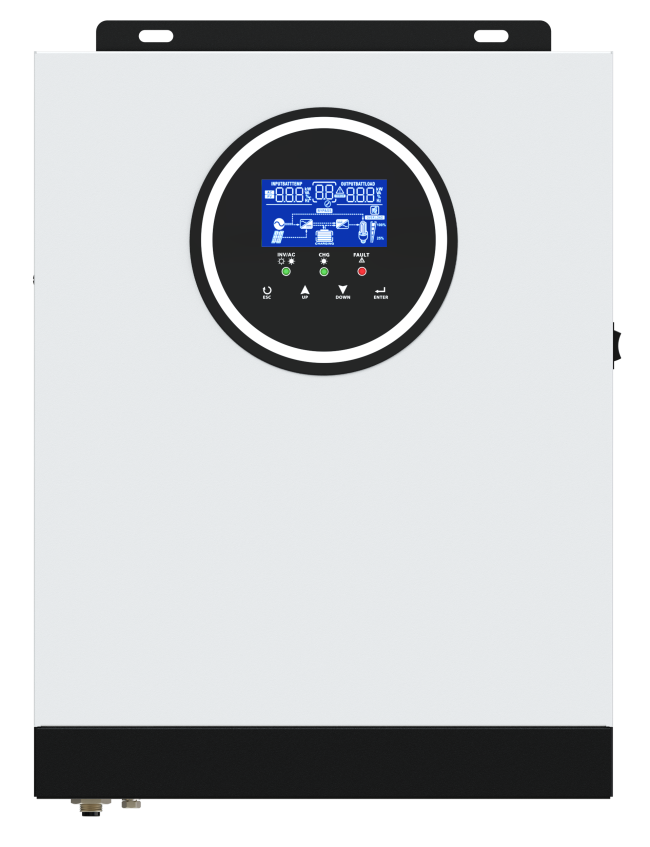

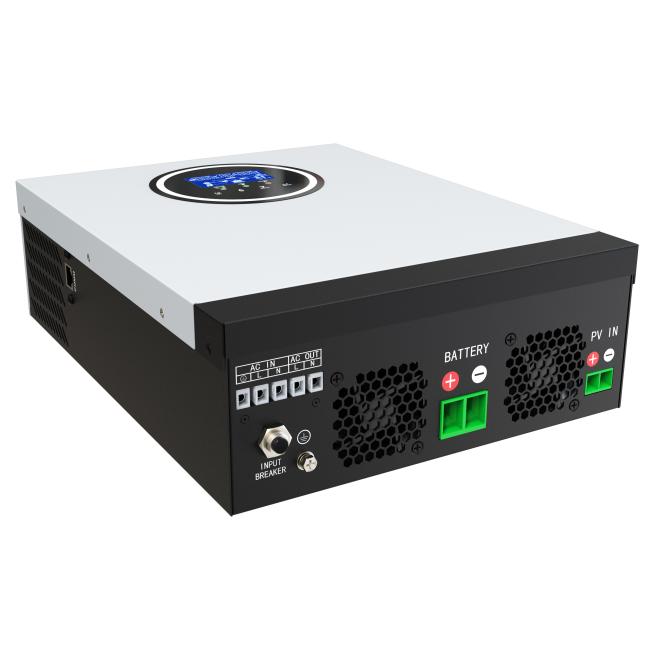

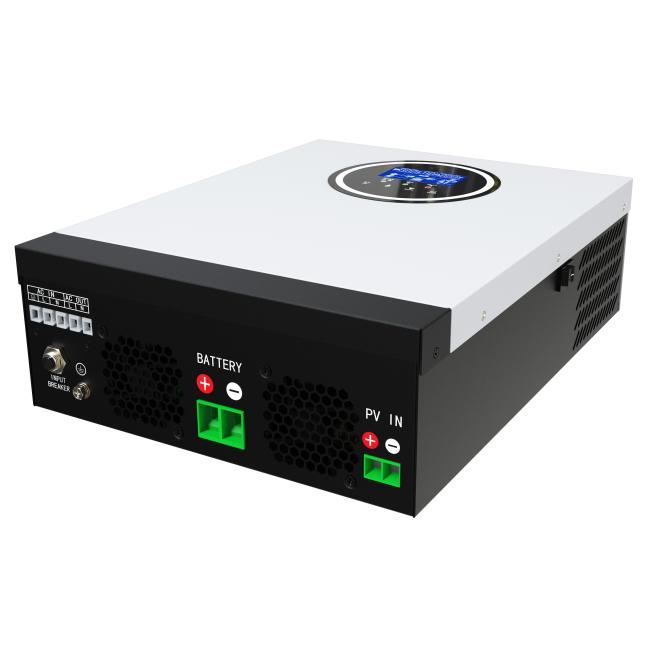

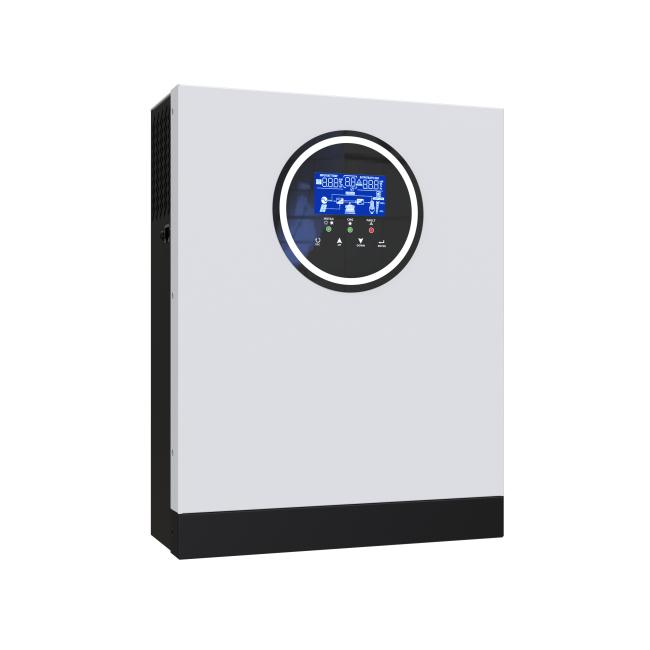

TTNergy SM-H 1800W 3000W solar inverter on off grid hybrid solar inverter grid tied 48v/24V 1.8KW 3KW 2KVA 3KVA
Price:
$198.00/pieces 1-49 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
TTNergy
Product Description
Specification
MODEL | SM-2200H | SM-3200H | ||
Rated Power | 2200VA/1800W | 3200VA/3000W | ||
INPUT | ||||
Voltage | 230VAC | |||
Selectable Voltage Range | 170-280VAC(for personal computers) 90-280VAC(for home appliances) | |||
Frequency Range | 50Hz/60Hz(Auto sensing) | |||
OUTPUT | ||||
AC Voltage Regulation (Batt.Mode) | 230VAC±5% | |||
Surge power | 4400VA | 6400VA | ||
Transfer Time | 10ms (for personal computers) 20ms (for home appliances) | |||
Wave form | Pure Sine Wave | |||
BATTERY & AC CHARGER | ||||
Battery Voltage | 12VDC | 24VDC | ||
Floating Charge Voltage | 13.5VDC | 27VDC | ||
Overcharge Protection | 16VDC | 33VDC | ||
Maximum charge current | 60A | |||
SOLAR CHARGER | ||||
MAX.PV Array Power | 2000W | 3000W | ||
MPPT Range@ Operating Voltage | 90-450VDC | |||
Maximum PV Array Open Circuit Voltage | 450VDC | |||
Maximum Charging Current | 80A | |||
Maximum Efficiency | 98% | |||
PHYSICAL | ||||
Dimension.D*w*H(mm) | 348*259*105mm | |||
Net Weight (kgs) | 5KG | 5.5KG | ||
Communication Interface | RS232(Standard) GPRS/WIFI(Optional) | |||
OPERATING ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
Operating Temperature | -10°℃ to 55°℃ | |||
Storage Temperature | -15°℃ to 60℃ | |||
