2023 TTNergy 10kw hybrid Solar Inverter

Name: 2023 TTNergy 10kw hybrid Solar Inverter
Brand: TTN New Energy Technology (Wenzhou) Co., Ltd

Price Negotiable

Price: $461.70/pieces 1-49 pieces

MOQ: Negotiable

Delivery Time: Negotiable

Brand: TTNergy

Product Description

Products Description

TTN Hybrid Inverter

An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.

The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.

TTN-MPS-V MAX 7.2KW / 8.2KW / 10.2KW

Higher yields / Safe & Reliable / Smart / User-friendly

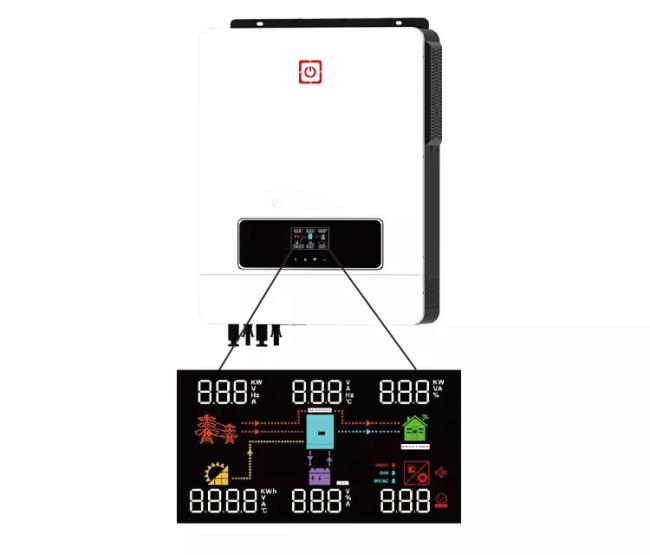

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features ※ Pure sine wave solar inverter (on/off Grid).

※ Output power factor 1.0. ※ WIFI&GPRS available for IOS and Android.

※ Inverter running without battery.

※ One-click restoration to factory Settings

※ Built-in Lithium battery automatic activation.

※ Built-in 160A (for 7.2KW/8.2KW)/180A (for 10.2KW) MPPT solar charger ※ High PV input voltage range(90~500VDC)

※ Built-in anti-dusk kit for harsh environment

※ Smart battery charge design to optimize battery life ※ Dual output ※ Touch button

Note:

How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.
For details, please refer to the manual recommendation or consult online customer service.

Specifications
MODEL	MPS-V MAX 7.2KW	MPS-V MAX 8.2KW	MPS-V MAX 10.2KW
Phase	1-phase
Maximum PV Input Power	7200W	8200W	10200W
Rated Output Power	7200W/7200VA	8200W/8200VA	10200W/10200VA
Maximum Solar Charging Current	160A	160A	180A
GRID-TIE OPERATION
PV Input(DC)
Nominal DC Voltage/	360VDC/500VDC
Maximum DC Voltage	360VDC/500VDC
Start-up Voltage/	90VDC/120VDC
Initial Feeding Voltage	90VDC/120VDC
MPPT Voltage Range	90VDC~450VDC
Number of MPPT Trackers/Maximum Input Current	1/27A
GRID OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Voltage Range	195.5~253VAC
Nominal Output Current	31.3A	35.6A	44.3A
Power Factor	>0.99
Feed-in Grid Frequency Range	49~51±1Hz
EFFICIENCY
Maximum Conversion Efficiency(DC/AC)	98%
TWO LOAD OUTPUT POWER
Full Load	7200W	8200W	10200W
Maximum Main Load	7200W	8200W	10200W
Maximum Second Load(battery mode)	2400W	2733W	3400W
Main Load Cut Off Voltage	44VDC	44VDC	44VDC
Main Load Return Voltage	48VDC	48VDC	48VDC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/	120-140VAC/180VAC
Auto Restart Voltage	120-140VAC/180VAC
Acceptable Input Voltage Range	90-280VAC or 170-280VAC
Maximum AC Input Current	40A	40A	50A
Nominal operating frequency	50/60Hz
Surge power	14400W	16400W	20400W
PV INPUT(DC)
Maximum DC Voltage	500VDC
MPPT Voltage Range	90VDC~450VDC
Number of MPPT Trackers/Maximum Input Current	1/27A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage	48VDC	48VDC	48VDC
Output Waveform	Pure sine wave
Efficiency(DC to AC)	94%
BATTERY & CHARGER
Nominal DC Voltage	48VDC	48VDC	48VDC
Maximum Solar Charging Current	160A	160A	180A
Maximum AC Charging Current	140A	140A	160A
