2023 New 120A MPPT Charger Controller Pure Sine Wave on/Off Grid 6200W Hybrid Solar Inverter w/RGB Light

Name: 2023 New 120A MPPT Charger Controller Pure Sine Wave on/Off Grid 6200W Hybrid Solar Inverter w/RGB Light
Brand: TTN New Energy Technology (Wenzhou) Co., Ltd

Price Negotiable

Price: $230.00/pieces 1-99 pieces

MOQ: Negotiable

Delivery Time: Negotiable

Brand: TTNergy

Product Description

Products Description

TTN Solar Inverter

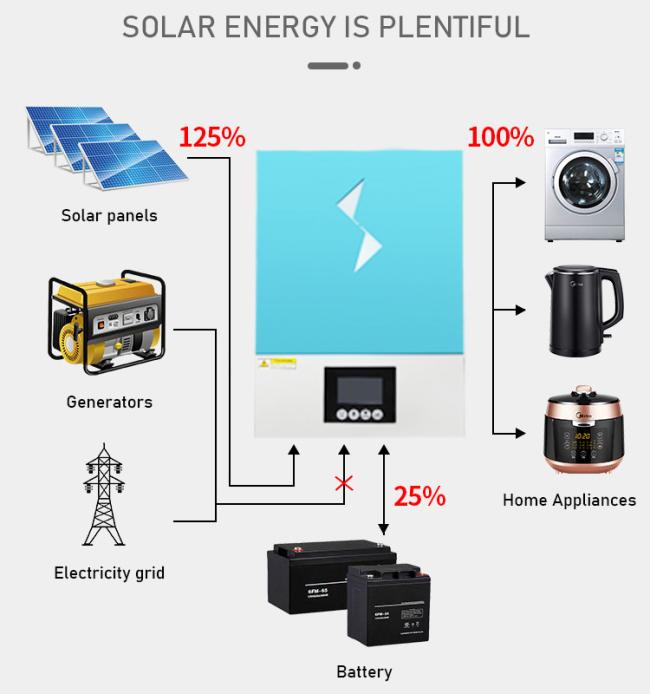

An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.

The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.

TTN-NM-IV 3600W 4200W 6200W

Higher yields / Safe & Reliable / Smart / User-friendly

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Pure sine wave solar inverter(on/off Grid)

Output power factor 1.0

WIFI&GPRS available for IOS and Android

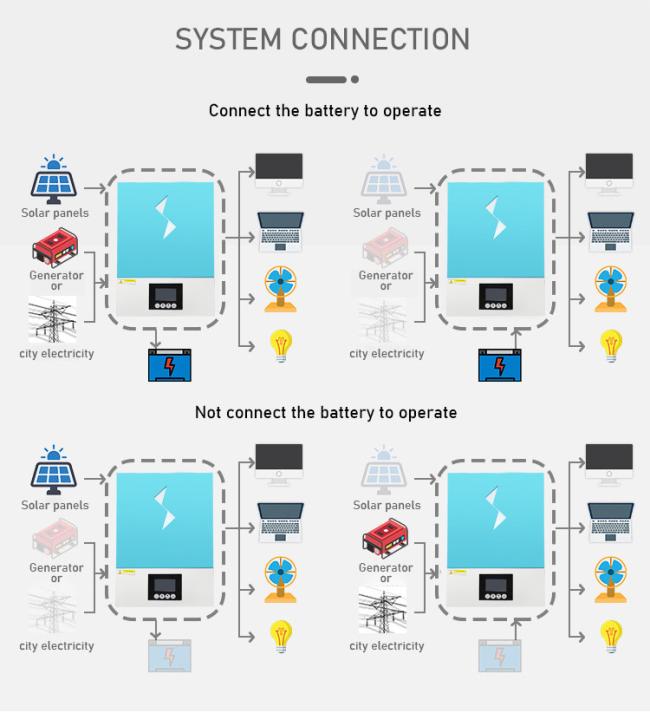

Inverter can run without battery

One-key restoration to factory Settings

Built-in Lithium battery automatic activation Built-in 120A(for 3.6KW/6.2KW)/140A(for 4. 2KW) MPPT Solar charge: max 6200w(for 3.6kw/4.2kw), max 6500w (for 6.2kw)

High PV input voltage range(90~500VDC)

Built-in anti-dustkit for harsh environment

Smart battery charge design to optimize battery life

Model	TTN-NM-IV-3600W	TTN-NM-IV-4200W	TTN-NM-IV-6200W
Phase	1-Phase
Maximum PV Input Power	6200W	6200W	6500W
Rated Output Power	3600W/3600VA	4200W/4200VA	6200W/6200VA
Maximum Solar Charging Current	120A	140A	120A
GRID-TIE OPERATION
PV Input(DC)
Nominal DC Voltage/Maximum DC Voltage	360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage	90VDC/120VDC
MPPT Voltage Range	90~450VDC
Number of MPPT/Max Input Current	1/27A
GRID OUTPUT(AC)
Norminal Output Voltage	220/230/240VAC
Output Valtage Range	195.5~253VAC
Norminal Output Current	15.7A	18.2A	27.0A
Power Factor	>0.99
Feed-in Grid Frequency Range	59~61±1Hz
EFFICIENCY
Max Conversion Efficiency(Solar to AC)	98%
TWO LOAD OUTPUT POWER(V2.0)
Full Load	3600W	4200W	6200W
Maximum Main Load	3600W	4200W	6200W
Max Second Load(battery mode)	1200W	1400W	2067W
Main Load Cut Off Voltage	22VDC	22VDC	44VDC
Main Load Return Voltage	24VDC	24VDC	48VDC
OFF-GRID OPERATION
AC Input
AC Start-up Voltage/Auto Restart Voltage	120-140VAC/180VAC
Acceptable Input Voltage Range	90-280VAC or 170-280VAC
Maximum AC Input Current	30A	30A	40A
Nominal operating frequency	50/60Hz
Surge power	7200W	8400W	12400W
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Waveform	Pure sine wave
Efficiency(DC to AC)	94%
BATTERY&CHARGER
Nominal DC Voltage	24VDC	24VDC	48VDC
Maximum Solar Charging Current	120A	140A	120A
Maximum AC Charging Current	100A
GENERAL
PHYSICAL
Dimension,DWH(mm)	420310110
Net Weight(Kgs)	10	11	11
INTERFACE
Communication Port	RS232/WiFi/GPRS
ENVIRONMENT
Operating Temperature	-10~50℃

Note:

How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.
For details, please refer to the manual recommendation or consult online customer service.
