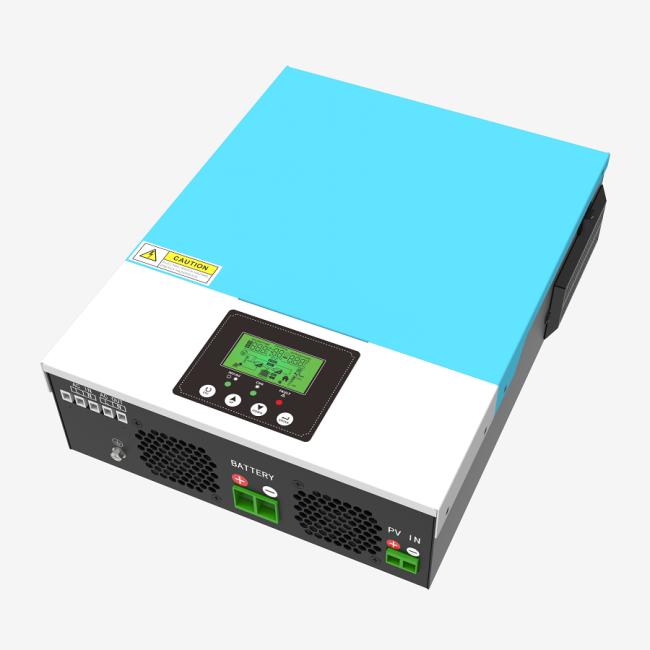

1.5kw/1.6KW/2.4kw/3.2KW Off Grid Solar Inverter 80A MPPT Solar Controller
Price:
$161.70/boxes 1-9 boxes
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
TTNergy
Product Description
Products Description
TTN Solar Inverter
The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.
TTN-SM 1500W 1600W 2400W 3000W
Higher yields / Safe & Reliable / Smart / User-friendly
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
High PV input voltage range(90~450VDC)
WIFI&GPRS available for IOS and android
Smart battery charge design to optimize battery life
Buit-in 80A MPPT solar charger
Solar energy is provided directly to the load first
Buit-in anti-dusk kit for harsh environment(optinal)
Can meet the rich custom needs of customers
Compatibe with lithium-ion battery
|
Model
|
SM-1500-12
|
SM-2000-12
|
SM-2400-24
|
SM-3200-24
|
||||
|
Rated Output Power
|
1500VA/1500W
|
2000VA/1600W
|
2400VA/2400W
|
3200VA/3000W
|
||||
|
INPUT
|
|
|
|
|
||||
|
Voltage
|
230VAC
|
|
|
|
||||
|
Selectable Voltage Range
|
170~280VAC(For Personal Computers)
|
|
|
|
||||
|
Frequency Range
|
90~280VAC(For Home Appliance)
|
|
|
|
||||
|
AC OUTPUT
|
|
|
|
|
||||
|
AC Voltage Regulation(Batt.Mode)
|
230VAC±5%
|
|
|
|
||||
|
Surge power
|
3000VA
|
4000VA
|
4800VA
|
6400VA
|
||||
|
Efficiency(Peak)PV to INV
|
98%
|
|
|
|
||||
|
Efficiency(Peak)Battery to INV
|
94%
|
|
|
|
||||
|
Transfer Time
|
10ms(For Personal Computers);20ms(For Home Appliance)
|
|
|
|
||||
|
BATTERY&AC CHARGER
|
|
|
|
|
||||
|
Battery Voltage
|
12VDC
|
|
24VDC
|
|
||||
|
Floating Charge Voltage
|
13.5VDC
|
|
27VDC
|
|
||||
|
Overcharge Protection
|
16VDC
|
|
33VDC
|
|
||||
|
Maximum Charge Current
|
60A
|
|
|
|
||||
|
SOLAR CHARGER
|
|
|
|
|
||||
|
Maximum PV Array Power
|
2000W
|
|
3000W
|
|
||||
|
MPPT Range & Operating Voltage
|
90~430VDC
|
|
|
|
||||
|
Max PV Array Open Circuit Voltage
|
450VDC
|
|
|
|
||||
|
Max Charging Current
|
80A
|
|
|
|
||||
|
PHYSICAL
|
|
|
|
|
||||
|
Dimension,D*W*H(mm)
|
350*259*90
|
|
|
|
||||
|
Net Weight(Kgs)
|
4
|
|
5
|
|
||||
|
Communication interface
|
RS232/USB/GPRS
|
|
|
|
||||
|
OPERATING ENVIRONMENT
|
|
|
|
|
||||
|
Humidity
|
5% to 95% Relative Humidity (No~condensing)
|
|
|
|
||||
|
Operating Temperature
|
-10~50°C
|
|
|
|
||||
Note:
How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.
For details, please refer to the manual recommendation or consult online customer service.
For details, please refer to the manual recommendation or consult online customer service.
