5.6KW 230vac MPPT 120A Off Grid Hybrid Inverter PV Input 6000W 450vdc
Price:
$668.00/pieces 1-4 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
TTNergy
Product Description
Products Description
TTN Solar Inverter
The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.
TTN-MKS-IV 3600W 5600W
Higher yields / Safe & Reliable / Smart / User-friendly

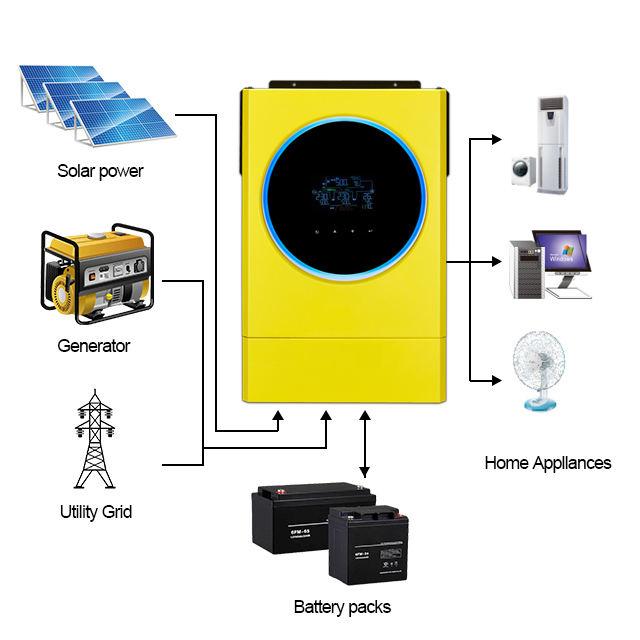

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
·Touchable button with 4.3" colored LCD
· Supports USB On-the-Go function
· Data log events stored in the inverter
· Self-consumption and Feed-in to the grid
·Programmable supply priority for PV, Battery or Grid
·User-adjustable charging current and voltage
·Programmable multiple operationmodes:Grid-tie,off-grid and grid-tie with backup
· Built-in Wi-Fi for mobile monitoring (App is available)
· Reserved communication port for BMS
· Parallel operation up to 9 units
|
MODEL
|
TTN-MKS-IV 3.6KW
|
TTN-MKS-IV 5.6KW
|
||
|
PHASE
|
1-phase in / 1-phase out
|
|
||
|
MAXIMUM PV INPUT POWER
|
5000W
|
6000W
|
||
|
RATED OUTPUT POWER
|
3600W
|
5600W
|
||
|
MAXIMUM CHARGING POWER
|
5000W
|
6000W
|
||
|
GRID-TIE OPERATION
|
|
|
||
|
PV INPUT (DC)
|
|
|
||
|
Nominal DC Voltage
Maximum DC Voltage |
360 VDC / 500 VDC
|
360 VDC / 450 VDC
|
||
|
Start-up Voltage
Initial Feeding Voltage |
110VDC / 120 VDC
|
110VDC / 120 VDC
|
||
|
MPP Voltage Range
|
120 VDC ~ 430 VDC
|
120 VDC ~ 430 VDC
|
||
|
Number of MPP Trackers
Maximum Input Current |
1 / 18 A
|
1 / 27 A
|
||
|
GRID OUTPUT (AC)
|
|
|
||
|
Nominal Output Voltage
|
220/230/240 VAC
|
|
||
|
Output Voltage Range
|
184 - 264.5 VAC or 195.5 - 253 VAC (Selectable)
|
|
||
|
Nominal Output Current
|
15.6A
|
24.3A
|
||
|
Power Factor
|
> 0.9
|
|
||
|
EFFICIENCY
|
|
|
||
|
Maximum Conversion Effciency(DC/AC)
|
96%
|
96%
|
||
|
OFF-GRID OPERATION
|
|
|
||
|
AC INPUT
|
|
|
||
|
AC Start-up Voltage
Auto Restart Voltage |
120 - 140 VAC / 180 VAC
|
|
||
|
Acceptable Input Voltage Range
|
90 - 280 VAC or 170 - 280 VAC
|
|
||
|
Maximum AC Input Current
|
40 A
|
40 A
|
||
|
PV INPUT (DC)
|
|
|
||
|
Maximum DC Voltage
|
500 VDC
|
450 VDC
|
||
|
MPP Voltage Range
|
120 VDC ~ 430 VDC
|
120 VDC ~ 430 VDC
|
||
|
Number of MPP Trackers
Maximum Input Current |
1 / 18 A
|
1 / 27 A
|
||
|
BATTERY MODE OUTPUT (AC)
|
|
|
||
|
Nominal Output Voltage
|
220/230/240 VAC
|
|
||
|
Output Waveform
|
Pure sinewave
|
|
||
|
Efficiency(DC to AC)
|
93%
|
93%
|
||
|
HYBRID OPERATION
|
|
|
||
|
PV INPUT (DC)
|
|
|
||
|
Nominal DC Voltage
Maximum DC Voltage |
360 VDC / 500 VDC
|
360 VDC / 450 VDC
|
||
|
Start-up Voltage
Initial Feeding Voltage |
110VDC / 120 VDC
|
110VDC / 120 VDC
|
||
|
MPP Voltage Range
|
120 VDC ~ 430 VDC
|
120 VDC ~ 430 VDC
|
||
|
Number of MPP Trackers
Maximum Input Current |
1 / 18 A
|
1 / 27 A
|
||
|
GRID OUTPUT (AC)
|
|
|
||
|
Nominal Output Voltage
|
220/230/240 VAC
|
|
||
|
Output Voltage Range
|
184 - 264.5 VAC or 195.5 - 253 VAC (Selectable)
|
|
||
|
Nominal Output Current
|
15.6A
|
24.3A
|
||
|
AC INPUT
|
|
|
||
|
AC Start-up Voltage
Auto Restart Voltage |
120 - 140 VAC / 180 VAC
|
|
||
|
Acceptable Input Voltage Range
|
90 - 280 VAC or 170 - 280 VAC
|
|
||
|
Maximum AC Input Current
|
40A
|
40A
|
||
|
BATTERY MODE OUTPUT (AC)
|
|
|
||
|
Nominal Output Voltage
|
220/230/240 VAC
|
|
||
|
Efficiency(DC to AC)
|
93%
|
93%
|
||
|
BATTERY & CHARGER
|
|
|
||
|
Nominal DC Voltage
|
48 VDC
|
48 VDC
|
||
|
Maximum Solar Charging Current
|
100A
|
120A
|
||
|
Maximum AC Charging Current
|
100A
|
120A
|
||
|
Maximum Charging Current
|
100A
|
120A
|
||
|
GENERAL
|
|
|
||
|
PHYSICAL
|
|
|
||
|
Dimension, D x W x H (mm)
|
140 x 295 x 468
|
|
||
|
Net Weight (kgs)
|
11
|
12
|
||
|
INTERACE
|
|
|
||
|
Parallel Function
|
Yes, 9 units
|
|
||
|
Communication Port
|
USB/RS232/RS485/WIFI/Dry-contact
|
|
||
|
ENVIRONMENT
|
|
|
||
|
Humidity
|
0 ~ 90% RH (Non-condensing)
|
|
||
|
Operating Temperature
|
-10 to 50ºC
|
|
||
Note:
How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.
For details, please refer to the manual recommendation or consult online customer service.
For details, please refer to the manual recommendation or consult online customer service.
Product Details

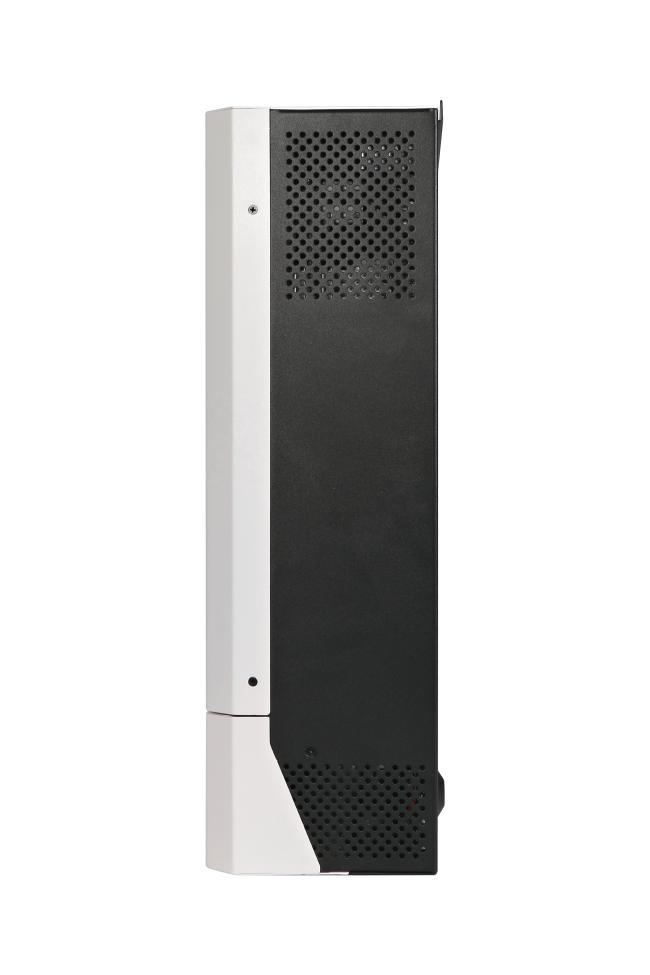

Details Images
