Dc To Ac Off Grid Hybrid Inverter 5kva 2kva 4kva 5000w 3000w Power Inverter
Price:
$139.00/pieces 5-19 pieces
MOQ:
5 pieces
Delivery Time:
Negotiable
Brand:
TTNergy
Product Description
Products Description
TTN Solar Inverter
The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.
TTN-DA
Higher yields / Safe & Reliable / Smart / User-friendly
2. Dedicated micro-processing chip design, equipment operation speed is faster and more stable;
3. LCD display,real-time view of setting parameters and operating status;
4. AC charging current 0~30A adjustable,battery configurations are more flexible by users;
5. Three working modes(AC first,battery first,energy-saving mode);
6. Equipped with stable voltage and frequency output, stronger load compatibility;
7. Perfect all-round automatic protection function, stable and reliable performance;
8. Perfect fault code query function, convenient for users to monitor the running status in real time;
9. Support diesel or petrol generators,adapt to any tough electricity environment;
10. RS485 communication port/APP(WIFI or GPRS) optional.
|
Specification
|
|
|
|
|
|
|
|
|
||||||||
|
Model DA
|
|
10212/24/48
|
15212/24/48
|
20212/24/48
|
30224/48
|
40224/48
|
50248
|
60248
|
||||||||
|
Rated Power
|
|
1000W
|
1500W
|
2000W
|
3000W
|
4000W
|
5000W
|
6000W
|
||||||||
|
Peak Power(20ms)
|
|
3000VA
|
4500VA
|
6000VA
|
9000VA
|
12000VA
|
15000VA
|
18000VA
|
||||||||
|
Start Motor
|
|
1HP
|
1.5HP
|
2HP
|
3HP
|
3HP
|
4HP
|
4HP
|
||||||||
|
Battery Voltage
|
|
12/24/48VDC
|
12/24/48VDC
|
|
24/48VDC
|
24/48VDC
|
48VDC
|
|
||||||||
|
Size(L*W*Hmm)
|
|
485*262*181
|
|
|
|
525*292*206
|
|
|
||||||||
|
Packing Size(L*W*Hmm)
|
|
580*310*240
|
|
|
|
620*340*265
|
|
|
||||||||
|
N.W.(kg)
|
|
16
|
18
|
20
|
23
|
40
|
43
|
46
|
||||||||
|
G.W.(kg)(Carton Packing)
|
|
18
|
20
|
22
|
25
|
43
|
46
|
49
|
||||||||
|

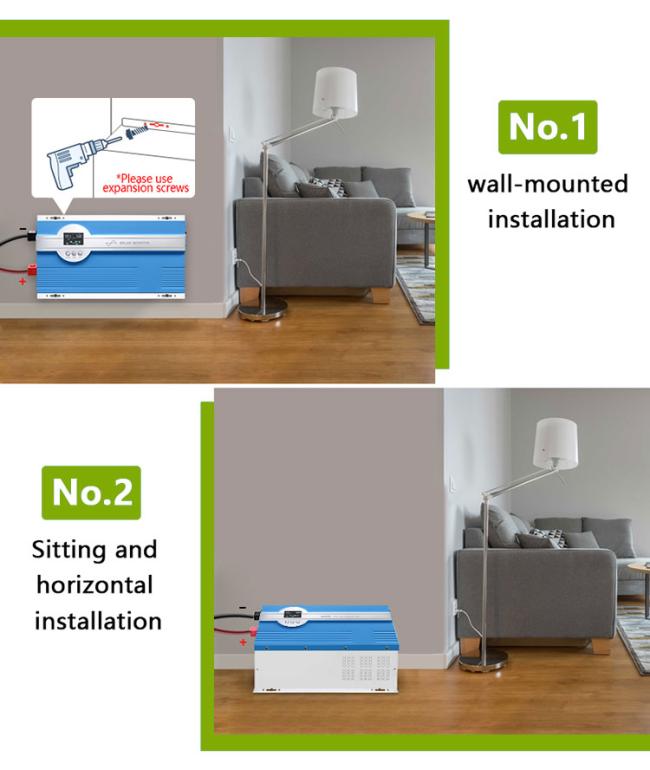

Installation Method
|
|
Wall-Mounted
|
|
|
|
|
|
|
||||||||
|
Parameter
|
|
|
|
|
|
|
|
|
||||||||
|
Input
|
DC Input Voltage Range
|
10.5-15VDC(Single battery voltage)
|
|
|
|
|
|
|
||||||||
|
|
AC Input Voltage Range
|
85VAC~138VAC(110VAC) / 95VAC~148VAC(120VAC) / 170VAC~275VAC(220VAC) / 180VAC~285VAC(230VAC) / 190VAC~295VAC(240VAC)
|
|
|
|
|
|
|
||||||||
|
|
AC Input Frequency Range
|
45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz)
|
|
|
|
|
|
|
||||||||
|
|
Max AC charging current
|
0~30A(Depending on the model)
|
|
|
|
|
|
|
||||||||
|
|
AC charging method
|
Three-stage (constant current, constant voltage, floating charge)
|
|
|
|
|
|
|
||||||||
|
Output
|
Efficiency(Battery Mode)
|
≥85%
|
|
|
|
|
|
|
||||||||
|
|
Output Voltage(Battery Mode)
|
110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
|
|
|
|
|
|
|
||||||||
|
|
Output Frequency(Battery Mode)
|
50/60Hz±1%
|
|
|
|
|
|
|
||||||||
|
|
Output Wave(Battery Mode)
|
Pure Sine Wave
|
|
|
|
|
|
|
||||||||
|
|
Efficiency(AC Mode)
|
>99%
|
|
|
|
|
|
|
||||||||
|
|
Output Voltage(AC Mode)
|
110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%
|
|
|
|
|
|
|
||||||||
|
|
Output Frequency(AC Mode)
|
Tracking Automatically
|
|
|
|
|
|
|
||||||||
|
|
Output waveform distortion
|
≤3%(Linear load)
|
|
|
|
|
|
|
||||||||
|
|
(Battery Mode)
|
|
|
|
|
|
|
|
||||||||
|
|
No load loss(Battery Mode)
|
≤2.5% rated power
|
|
|
|
|
|
|
||||||||
|
|
No load loss(AC Mode)
|
≤2% rated power( charger does not work in AC mode)
|
|
|
|
|
|
|
||||||||
|
|
No load loss(Energy saving Mode)
|
≤10W
|
|
|
|
|
|
|
||||||||
|
Battery Type
|
VRLA Battery
|
Charge Voltage :14.2V; Float Voltage:13.8V( 12V system; 24V system x2 ; 48V system x4)
|
|
|
|
|
|
|
||||||||
|
|
Customize battery
|
Charging and discharging parameters of different types of batteries can be customized according to user requirements
|
|
|
|
|
|
|
||||||||
|
|
|
(charging and discharging parameters of different types of batteries can be set through the operation panel)
|
|
|
|
|
|
|
||||||||
|
Protection
|
Battery undervoltage alarm
|
Factory default: 11V(12V system; 24V system x2; 48V system x4)
|
|
|
|
|
|
|
||||||||
|
|
Battery undervoltage protection
|
Factory default: 10.5V(12V system; 24V system x2; 48V system x4)
|
|
|
|
|
|
|
||||||||
|
|
Battery overvoltage alarm
|
Factory default: 15V(12V system; 24V system x2; 48V system x4)
|
|
|
|
|
|
|
||||||||
|
|
Battery overvoltage protection
|
Factory default: 17V(12V system; 24V system x2; 48V system x4)
|
|
|
|
|
|
|
||||||||
|
|
Battery overvoltage recovery voltage
|
Factory default: 14.5V(12V system; 24V system x2; 48V system x4)
|
|
|
|
|
|
|
||||||||
|
|

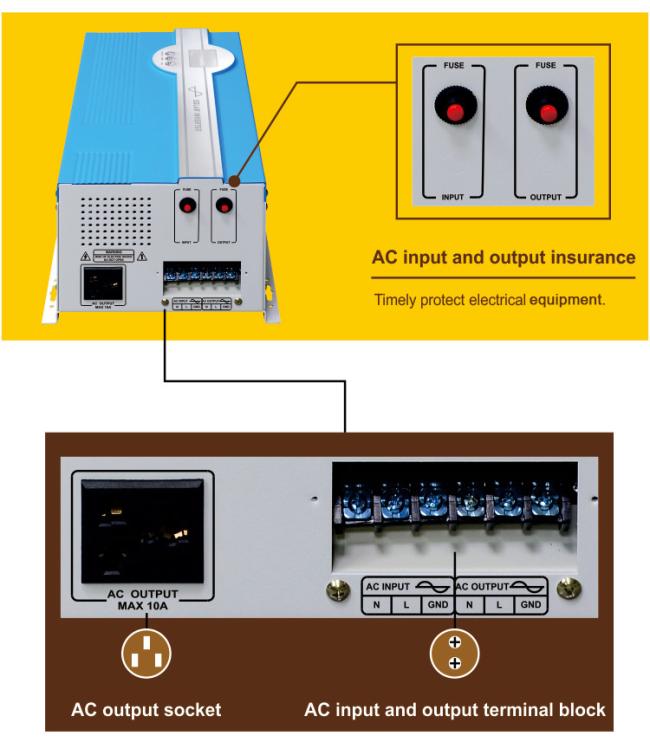

Overload power protection
|
Automatic protection (battery mode), circuit breaker or insurance (AC mode)
|
|
|
|
|
|
|
||||||||
|
|
Inverter output short circuit protection
|
Automatic protection (battery mode), circuit breaker or insurance (AC mode)
|
|
|
|
|
|
|
||||||||
|
|
Temperature protection
|
>90°C(Shut down output)
|
|
|
|
|
|
|
||||||||
|
Alarm
|
A
|
Normal working condition, buzzer has no alarm sound
|
|
|
|
|
|
|
||||||||
|
|
B
|
Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
|
|
|
|
|
|
|
||||||||
|
|
C
|
When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
|
|
|
|
|
|
|
||||||||
|
Working Mode
|
|
Battery First/AC First/Saving Energy Mode
|
|
|
|
|
|
|
||||||||
|
Transfer Time
|
|
≤4ms
|
|
|
|
|
|
|
||||||||
|
Display
|
|
LCD
|
|
|
|
|
|
|
||||||||
|
Thermal method
|
|
Cooling fan in intelligent control
|
|
|
|
|
|
|
||||||||
|
Communication(Optional)
|
|
RS485/APP(WIFI monitoring or GPRS monitoring)
|
|
|
|
|
|
|
||||||||
|
Environment
|
Operating temperature
|
-10℃~40℃
|
|
|
|
|
|
|
||||||||
|
|
Storage temperature
|
-15℃~60℃
|
|
|
|
|
|
|
||||||||
|
|
Noise
|
≤55dB
|
|
|
|
|
|
|
||||||||
|
|
Elevation
|
2000m(More than derating)
|
|
|
|
|
|
|
||||||||
|
|
Humidity
|
0%~95% ,No condensation
|
|
|
|
|
|
|
||||||||
Note:
How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.
For details, please refer to the manual recommendation or consult online customer service.
For details, please refer to the manual recommendation or consult online customer service.
Product Details
Wiring Diagram
1. We offer 3 optional working modes (transfer time≤4ms):
01 Grid priority mode: When the grid and battery are connected to the inverter, grid will supply power to the loads directly after voltage being stabilized and charge batteries via inverter. When the grid is cut off, the battery will automatically continue to supply power via inverter.
02 Energy saving mode: If the power of the connected AC loads is lower than 5% of the inverter’s rated power, there will be no output from the inverter. Only the chip of inverter is working. The power consumption of the inverter is only 1~6W. The LCD shows the output voltage 0. If the power of the connected loads is over 5%, within 5S the inverter will automatically convert DC to AC to supply power for the loads . The LCD shows the output voltage.
03 Battery priority mode: When the grid and battery are connected to the inverter, battery will supply power to the loads first. When battery capacity is not enough, the grid will continue to supply power automatically.
01 Grid priority mode: When the grid and battery are connected to the inverter, grid will supply power to the loads directly after voltage being stabilized and charge batteries via inverter. When the grid is cut off, the battery will automatically continue to supply power via inverter.
02 Energy saving mode: If the power of the connected AC loads is lower than 5% of the inverter’s rated power, there will be no output from the inverter. Only the chip of inverter is working. The power consumption of the inverter is only 1~6W. The LCD shows the output voltage 0. If the power of the connected loads is over 5%, within 5S the inverter will automatically convert DC to AC to supply power for the loads . The LCD shows the output voltage.
03 Battery priority mode: When the grid and battery are connected to the inverter, battery will supply power to the loads first. When battery capacity is not enough, the grid will continue to supply power automatically.
2.Battery number and capacity should be configured according to the rated voltage of the solar power system or invertor;
