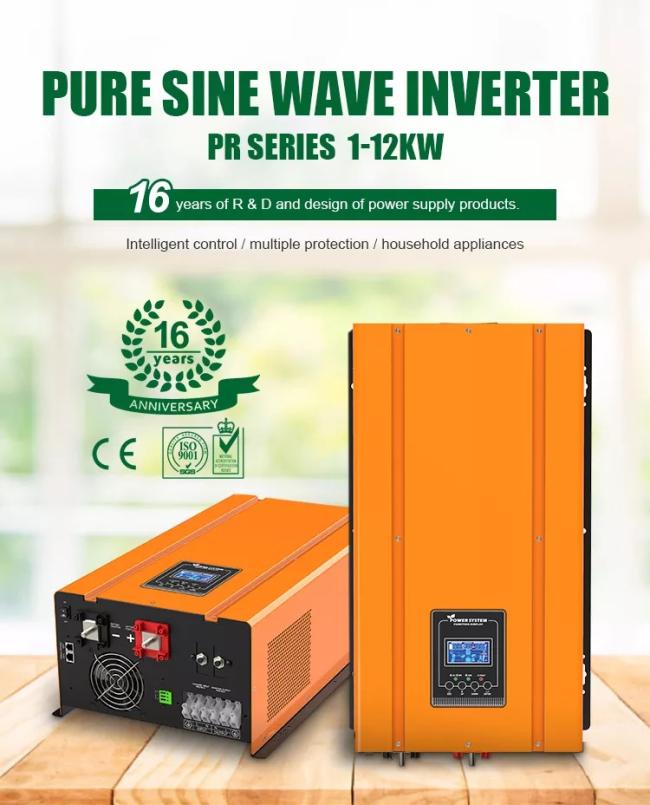

Pure Sine Wave Off Grid Solar Inverter 12V 220V 5000W/4000watt/3000w/6000w
Price:
$440.00/sets 1-49 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
TTN
Product Description
Products Description
TTN Solar Inverter
The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.

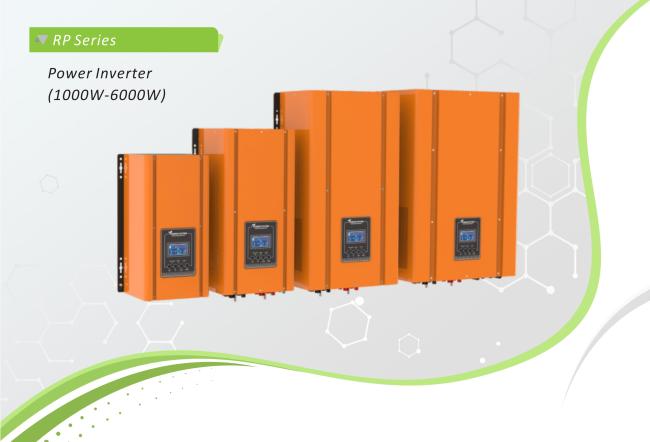

TTN-RP 1K / 2K / 3K / 4K / 5K / 6K / 8K / 10K / 12K
Higher yields / Safe & Reliable / Smart / User-friendly

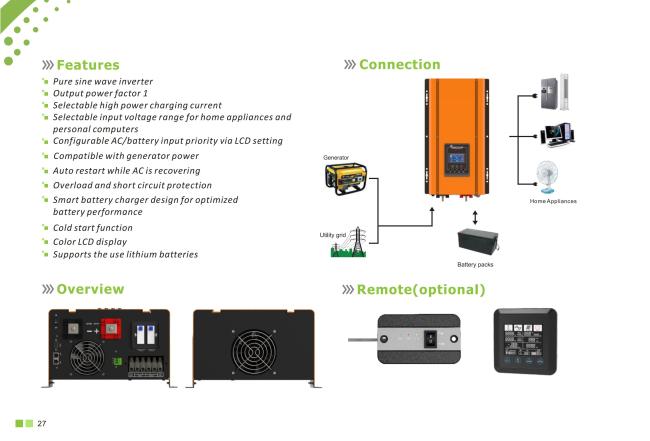

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Output power factor 1
Selectable high power charging current
Selectable input voltage range for home appliances and personal computers
Configurable ac/battery input priority via LCD setting
Compatible with generator power
Auto restart while AC is recovering
Overload and short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Color LCD display
Supports the use lithium batteries
Wave by wave phase detection, more stable and reliable
|
Model
|
RP 1K
|
RP 2K
|
RP 3K
|
RP 4K
|
RP 5K
|
RP 6K
|
RP 8K
|
RP 10K
|
RP 12K
|
|||||||||
|
Rated Power
|
1000W
|
2000W
|
3000W
|
4000W
|
5000W
|
6000W
|
8000W
|
10000W
|
12000W
|
|||||||||
|
INPUT
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Voltage
|
100/110/120Vac;220/230/240Vac
|
|
|
|
|
|
220/230/240Vac
|
|
|
|||||||||
|
Selectable Voltage Range
|
Wide Range : 75vac~138Vac; 155Vac~275Vac(for home appliances)
Narrow Range: 82Vac~138Vac; 165Vac~275Vac(for personal computer)
|
|
|
|
|
|
|
|
|
|||||||||
|
Frequency Range
|
40~70Hz (50Hz/60Hz)
|
|
40~70Hz( 50Hz/60Hz)
|
|
|
|
|
|
|
|||||||||
|
OUTPUT
|
|
|
|
|
|
|
|
|
|
|||||||||
|
AC Voltage Regulation(Battery. Mode)
|
100/110/120Vac; 220/230/240Vac
|
|
|
|
|
|
220/230/240Vac
|
|
|
|||||||||
|
Surge Power
|
2000VA
|
4000VA
|
9000VA
|
12000VA
|
15000VA
|
18000VA
|
24KVA
|
30KVA
|
36VA
|
|||||||||
|
Efficiency (Peak)
|
88%
|
|
91%
|
|
|
|
90%
|
|
|
|||||||||
|
Transfer time
|
<20ms
|
|
<10ms
|
|
|
|
<20ms
|
|
|
|||||||||
|
Waveform
|
Pure sine wave
|
|
|
|
|
|
|
|
|
|||||||||
|
Protection
|
Over charging, over temp, over battery voltage, over load, short circuit
|
|
|
|
|
|
|
|
|
|||||||||
|
Operating environment Temp
|
55°C
|
|
|
|
|
|
|
|
|
|||||||||
|
Cooling
|
Intelligent Fan
|
|
|
|
|
|
|
|
|
|||||||||
|
Display
|
Color LCD
|
|
|
|
|
|
|
|
|
|||||||||
|
Parameter setting
|
By LCD or Position Machine:Charging current , battery type , input voltage , output frequency, Wide and Narrow range of ac input
voltage , Power saver mode, ac/battery priority
|
|
|
|
|
|
|
|
|
|||||||||
|
PHYSICAL
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Dimension D*W*H(mm)
|
390*222*178
|
|
500*258*190
|
574*345*197
|
|
|
584*425*180
|
|
|
|||||||||
|
Net Weight(kg)
|
12.4/11.4
|
16/15
|
25.2/24.6
|
34.4/33.8
|
37.9/38.2
|
41.6/40.5
|
58.7/59
|
67/66.5
|
71.8/72
|
|||||||||
|
ENVIRONMENT
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Humidity
|
5-95% Relative Humidity (Non-condensing)
|
|
|
|
|
|
|
|
|
|||||||||
|
Operating Temp
|
-10°C to 50°C
|
|
|
|
|
|
|
|
|
|||||||||
|
Storage Tem.
|
-15°C to 60°C
|
|
|
|
|
|
|
|
|
|||||||||
|
BATTERY
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
1000W
|
2000W
|
3000W
|
|
|
4000W
|
|
5000W
|
|
|||||||||
|
Battery Voltage
|
12V
|
24V
|
12V
|
24V
|
48V
|
24V
|
48V
|
24V
|
48V
|
|||||||||
|
Charge current
|
35A
|
35A
|
75A
|
50A
|
25A
|
70A
|
35A
|
75A
|
45A
|
|||||||||
|
Fast charge voltage
|
14.3V
|
28.6V
|
14.3V
|
28.6V
|
57.2V
|
28.7V
|
57.3V
|
28.8V
|
57.4V
|
|||||||||
|
Float charge voltage
|
13.7V
|
27.4V
|
13.7V
|
27.4V
|
54.8V
|
27.5V
|
54.9V
|
27.6V
|
54.10V
|
|||||||||
|
Over voltage protect
|
16.5V
|
33.0V
|
16.5V
|
33.0V
|
66.0V
|
33.1V
|
66.1V
|
33.2V
|
66.2V
|
|||||||||
|
Battery low voltage alarm
|
10.5V
|
21.0V
|
10.5V
|
21.0V
|
42.0V
|
21.1V
|
42.1V
|
21.2V
|
42.2V
|
|||||||||
|
Battery low voltage shutdown
|
10.0V
|
20.0V
|
10.0V
|
20.0V
|
40.0V
|
20.1V
|
40.1V
|
20.2V
|
40.2V
|
|||||||||
|
|
6000W
|
|
8000W
|
|
10000W
|
|
12000W
|
|
|
|||||||||
|
Battery Voltage
|
24V
|
48V
|
48V
|
96V
|
48V
|
96V
|
48V
|
96V
|
|
|||||||||
|
Charge current
|
75A
|
50A
|
70A
|
35A
|
75A
|
40A
|
75A
|
50A
|
|
|||||||||
|
Fast charge voltage
|
28.9V
|
57.5V
|
57.2V
|
114.4V
|
57.2V
|
114.4V
|
57.2V
|
114.4V
|
|
|||||||||
|
Float charge voltage
|
27.7V
|
54.11V
|
54.8V
|
109.6V
|
54.8V
|
109.6V
|
54.8V
|
109.6V
|
|
|||||||||
|
Over voltage protect
|
33.3V
|
66.3V
|
66.0V
|
132.0V
|
66.0V
|
132.0V
|
66.0V
|
132.0V
|
|
|||||||||
|
Battery low voltage alarm
|
21.3V
|
42.3V
|
42.0V
|
84.0V
|
42.0V
|
84.0V
|
42.0V
|
84.0V
|
|
|||||||||
|
Battery low voltage shutdown
|
20.3V
|
40.3V
|
40.0V
|
80.0V
|
40.0V
|
80.0V
|
40.0V
|
80.0V
|
|
|||||||||
Note:
How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.
For details, please refer to the manual recommendation or consult online customer service.
For details, please refer to the manual recommendation or consult online customer service.
