TTN DC/AC Pure Sine Wave Power Inverter 300W To 8000W Single Output
Price:
$38.00/pieces 5-9 pieces
MOQ:
5 pieces
Delivery Time:
Negotiable
Brand:
TTN
Product Description
Products Description

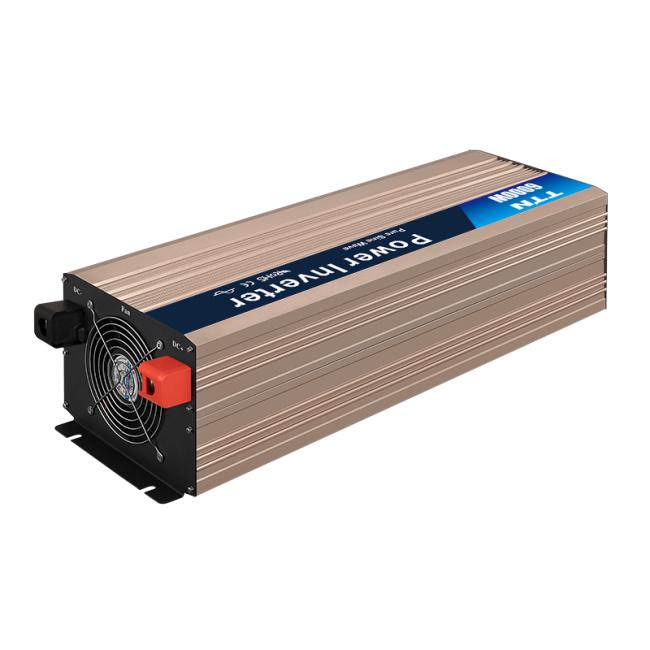

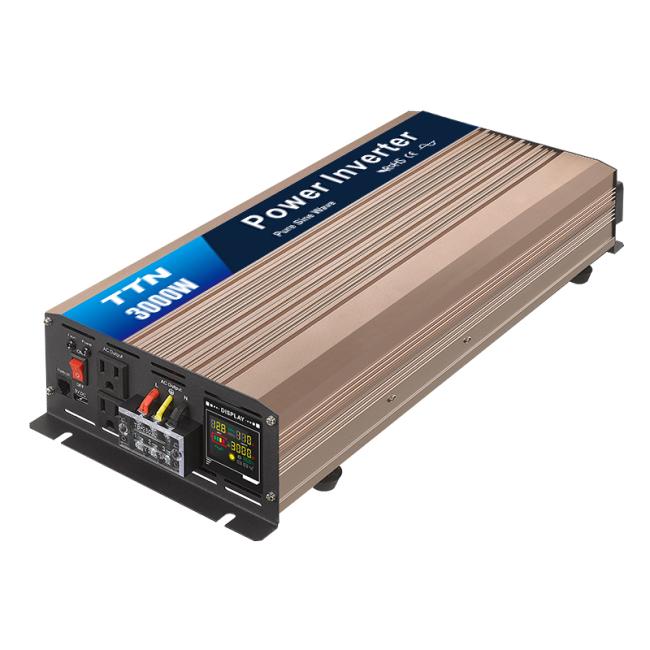

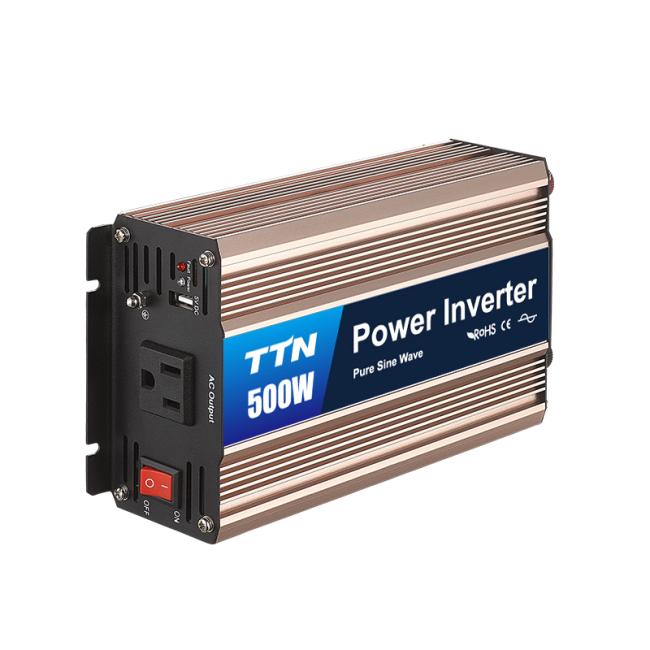

TTN Pure Sine Wave Inverter
TTN-SPGE 300W / 500W / 600W / 1000W / 1500W / 2000W
2500W / 3000W / 3500W / 4000W / 5000W / 6000W / 8000W
|
Model
|
300W-
12/24/48V
|
500W-
12/24/48V
|
600W-
12/24/48V
|
1000W-
12/24/48V
|
1500W-
12/24/48V
|
2000W-
12/24/48V
|
2500W-
12/24/48V
|
||||||
|
|
3000W-
12/24/48V
|
3500W-
12/24/48V
|
4000W-
12/24/48V
|
5000W-
12/24/48V
|
6000W-
12/24/48V
|
8000W-
24/48/96V
|
|
||||||
|
Digital display
|
300W/500W/8000W No display 600W/1000W/1500W/2000W/2500W/3000W/3500W/4000W/5000W/6000W LED display
|
|
|
|
|
|
|
||||||
|
Rated Power
|
300W~8000W
|
|
|
|
|
|
|
||||||
|
Surge Power
|
600W~16000W(few seconds)
|
|
|
|
|
|
|
||||||
|
Input Voltage
|
12VDC/24VDC/48VDC/96VDC
|
|
|
|
|
|
|
||||||
|
Output Voltage
|
110VAC±5%/220VAC±5%
|
|
|
|
|
|
|
||||||
|
USB Port
|
5V1A
|
|
|
|
|
|
|
||||||
|
Frequency
|
50Hz±3 or 60Hz±3
|
|
|
|
|
|
|
||||||
|
Output Waveform
|
Pure Sine Wave
|
|
|
|
|
|
|
||||||
|
Soft Start
|
YES
|
|
|
|
|
|
|
||||||
|
AC Regulation
|
THD<3%(Linear Load)
|
|
|
|
|
|
|
||||||
|
Output Efficiency
|
94% MAX
|
|
|
|
|
|
|
||||||
|
No Load Current
|
0.1A~3.8A
|
|
|
|
|
|
|
||||||
|
Cooling Way
|
Intelligent Cooling Fan
|
|
|
|
|
|
|
||||||
|
Protection
|
Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit. Reverse Polarity
|
|
|
|
|
|
|
||||||
|
Working Temperature
|
-10℃ - +50℃
|
|
|
|
|
|
|
||||||
|
Warranty
|
2 Years
|
|
|
|
|
|
|
||||||
|
Voltage Range
|
12V
|
24V
|
48V
|
96V
|
|
DC Voltage Range
|
10-15.5V
|
20-31V
|
40-61V
|
80~120V
|
|
Low Voltage Alarm
|
10.5±0.5V
|
21±0.5V
|
42±1V
|
83±1V
|
|
Low Voltage Shut Down
|
10±0.5V
|
20±0.5V
|
40±1V
|
80±1V
|
|
Low Voltage Recovery
|
13±0.5V
|
24±0.5V
|
48±1V
|
96±1V
|
|
Over Voltage Shut Down
|
15.5±0.5V
|
31±0.5V
|
61±1V
|
120±1V
|
|
Over Voltage Recovery
|
14.8V±0.5V
|
29V±0.5V
|
59V±1V
|
96±1V
|
|
Model
|
300W
|
500W
|
1000W
|
1500W
|
2000W
|
2500W
|
|
Net Dimension
|
19.5*11.2*6cm
|
23.2*15*7.8cm
|
32.6*16.5*8.7cm
|
36.2*16.5*8.7cm
|
43*16.5*8.7cm
|
44*17*10.5cm
|
|
Inner Box Dimension
|
25.6*15*9.8cm
|
28.6*20.3*13cm
|
35.1*20.5*12.2cm
|
45.6*20.6*12.2cm
|
45.6*20.6*12.2cm
|
noll
|
|
Meas/Ctn
|
51x49x30.7cm/18pcs
|
63*34*38.5cm/10pcs
|
67.5*37.3*29.7cm/6pcs
|
52*47.5*38cm/4pcs
|
52*47.5*38cm/4pcs
|
51.5*23.3*17.5cm/4pcs
|
|
N.W/Unit
|
1.0kg (1.2kg With Inner Box)
|
2.0kg (2.3kg With Inner Box)
|
3.1kg(3.5kg With Inner Box)
|
4.3kg(4.8kg With Inner Box)
|
5.2kg(5.7kg With Inner Box)
|
4.76kg(4.76kg With Inner Box)
|
|
G.W/Ctn
|
23KGS
|
24KGS
|
22KGS
|
20KGS
|
24.5KGS
|
22.52KGS
|
|
Packing
|
Colour box
|
Colour box
|
Colour box
|
Colour box
|
Colour box
|
Colour box
|
|
Model
|
3000W
|
3500W
|
4000W
|
5000W
|
6000W
|
8000W
|
|
Net Dimension
|
46*21*8.6cm(L×WxH)
|
44*20*15 cm(L×WxH)
|
46.5*21.6*15.6cm(LxWxH)
|
46.5*21.6*15.6cm(LxWxH)
|
51.8*20*14.5cm(LxWxH)
|
66*30*23.5cm(LxWxH)
|
|
Meas/Ctn
|
53.5*51.5*27.5cm/4pcs
|
56.5*30.8*24cm/1pcs
|
57.5*31.5*25cm/1pcs
|
57.5*31.5*25cm/1pcs
|
64.3*30*23.5cm/1pcs
|
74*30*23.5cm/1pcs
|
|
N.W/Unit
|
26kg
|
8.92kg
|
10kg
|
10.5kg
|
12kg
|
14kg
|
|
G.W/Ctn
|
28KGS
|
10.7KGS
|
12KGS
|
12.5KGS
|
14KGS
|
18KGS
|
|
Packing
|
Carton
|
Carton
|
Honeycomb carton
|
Honeycomb carton
|
Honeycomb carton
|
Honeycomb carton
|
Product Details
300W
500W
600W
1000W
1500w
2000W
2500W
3000W
3500W
4000W
5000W
6000W
8000W
Product packaging
Honeycomb carton
Super protective packaging.
Carton
Multi-layer cardboard synthetic carton, solid and durable.
