China TTNergy Placas Solares 1000W 400w 450w 550w 560w 570w 575w N Type 182mm 144cells Topcon Solar Panels Pannelli Solar for sale

TTNergy Placas Solares 1000W 400w 450w 550w 560w 570w 575w N Type 182mm 144cells Topcon Solar Panels Pannelli Solar

Name: TTNergy Placas Solares 1000W 400w 450w 550w 560w 570w 575w N Type 182mm 144cells Topcon Solar Panels Pannelli Solar
Brand: TTN New Energy Technology (Wenzhou) Co., Ltd

Price Negotiable

Price: $0.25/watts 550-5499 watts

MOQ: 550 watts

Delivery Time: Negotiable

Brand: TTNergy

Product Description

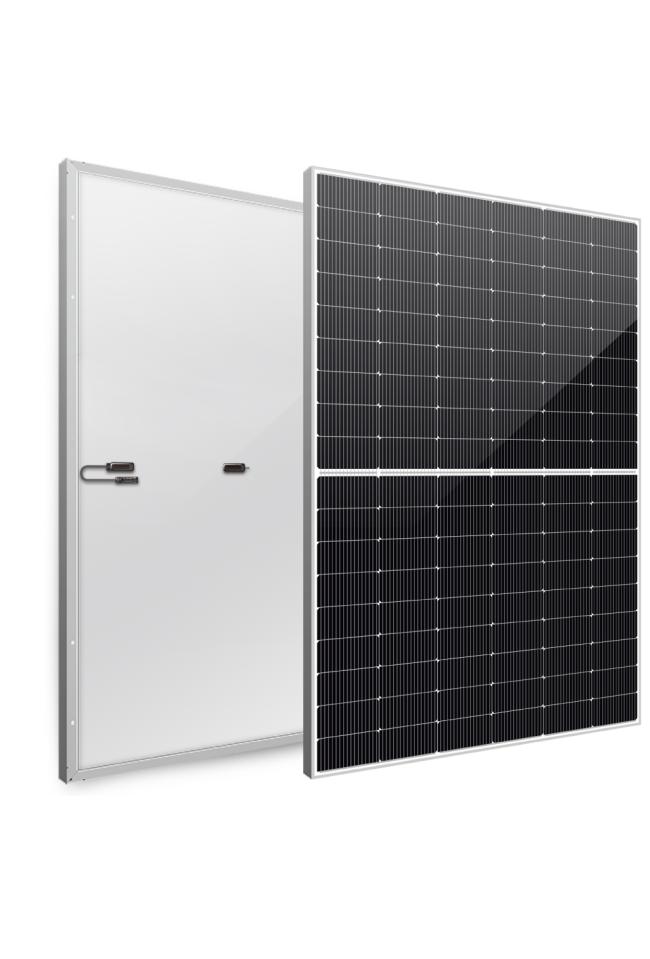

TTNergy TOPCon Mono crystalline 182mm 16BB Solar panel

Comparing with PERC solar panel, TOPCon solar panel based on Ntype Silicon wafer, have longer lifetime, lower degradation and higher potential of efficiency enhance. 430w TOPCon solar panel’s efficiency up to 22.02%, 575w TOPCon solar panel's efficiency up to 22.26%.

TOPCon Model	Maximum Power	Efficiency	External Dimensions	Weigh	Solar Cells	Tandem structure
TTNMH144-575-M16	575W	22.26%	2278x1134x35mm	28kg	Mono crystalline 182mm (2x72pcs)	16BB
TTNMH144-570-M16	570W	22.07%
TTNMH144-565-M16	565W	21.87%
TTNMH144-560-M16	560W	21.68%
TTNMH144-555-M16	555W	21.48%
TTNMH108-430-M10	430W	21.30%	1722x1134x30mm	22kg	Mono crystalline 182mm (2x54pcs)
TTNMH108-425-M10	425W	21.10%
TTNMH108-420-M10	420W	20.80%
TTNMH108-415-M10	415W	20.50%
TTNMH108-310-M10	410W	20.20%

Only some models, please contact customer service if other models are needed.

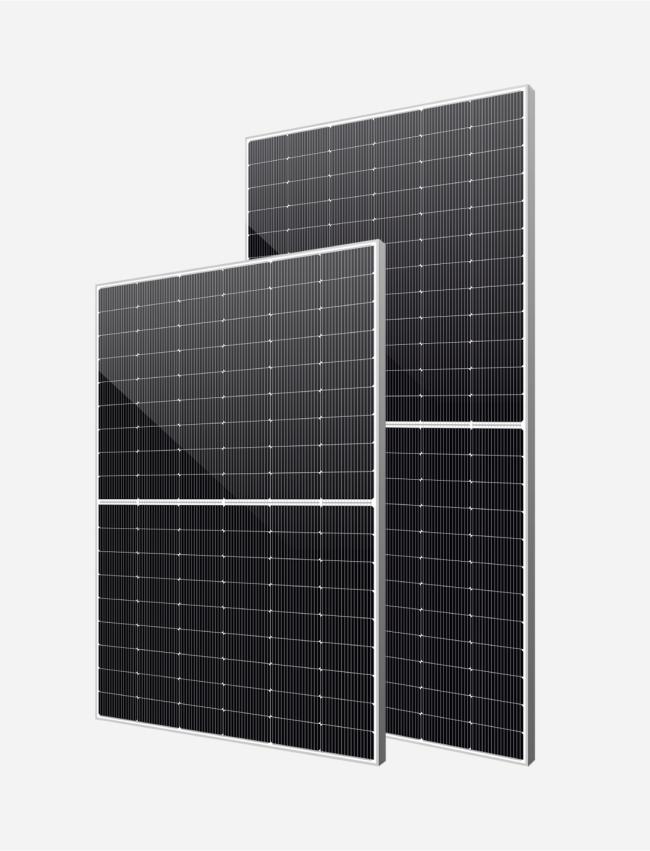

Extraordinary N-type Solar Panel

575W Solar Panel, 22.26% Ultra-high Eff

Comparing with PERC solar panel, TOPCon solar panel based on Ntype Silicon wafer, have longer lifetime, lower degradation and
higher potential of efficiency enhance. 430w TOPCon solar panel’s efficiency up to22.02%, 575w TOPCon solar panel's efficiency up
to 22.26%.

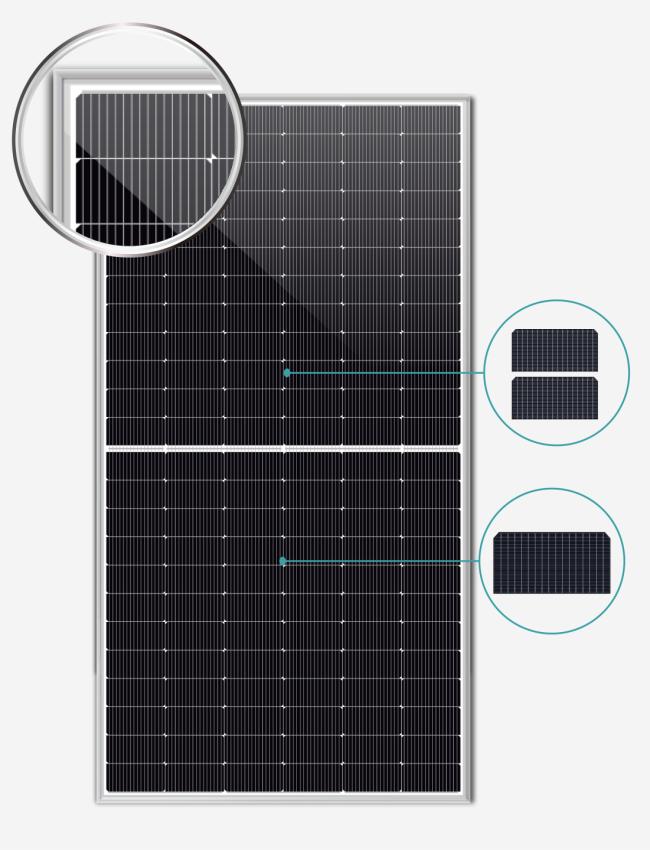

16BB Super-MBB Technology Half cell Technology

TOPCon Solar Panel adopts 16-busbar technology. More busbars of the cell decrease the current transverse propagation path by 50%, effectively reduce the internal loss, and improve power of solar panels.The half-cut cell design can decrease the power loss by
the shadow effectively. The optimized circuit design not only realizes the maximum power output but also assures the reliability
of solar panels.

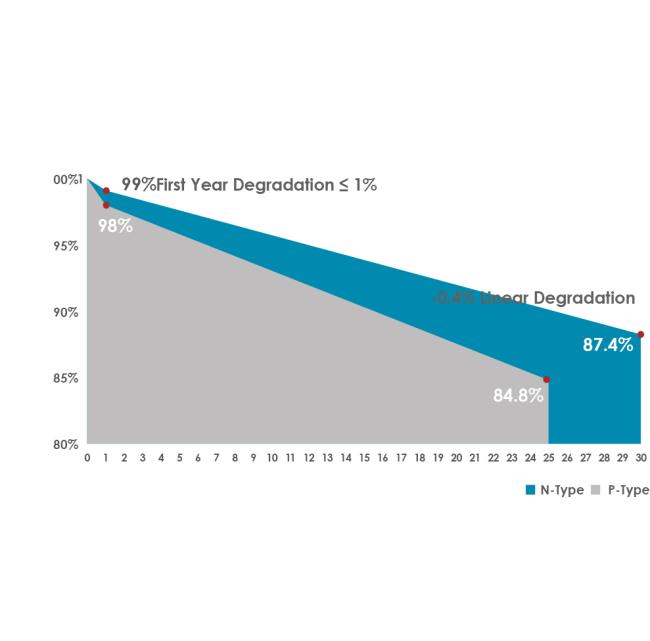

First Year Degradation < 1% -0.4% Linear Degradation

Comparing with PERC solar panel, TOPCon solar panel first year degradation is less than. After 30 years of certification, the
output power is not less than 87.40% of the original output power.

-0.30%/C Optimized Temp Coeff Excellent weak light performance

TTNergy TOPCon solar panel has Excellent weak light performance. When under the cloudy, haze condition, weak light performance help get more production.

The temperature coefficient of PERC solar panel is -0.35%/C, TOPCon solar panel is -0.30%/C. A temperature coefficient rating of-0.30%/C, Support TOPCon solar panels to generate up to 2% more power than PERC solar panels at high temperatures.

Lower LID /LETID

TTNergy TOPCon solar panel use N-type solar cell technology, result in extremely low LID/LETID, which supports reliability and
longevity. Supports more power generation than PERC solar panel.

More models

The following models are all TTNergy 182mm 10BB solar cells. We also have other solar cell models, which may have different sizes. If you need them, please contact customer service.
