The half-cut cell design can decrease the power loss by the shadow effectively. The optimized circuit design not only realizes the
maximum power output but also assures the reliability of solar panels.

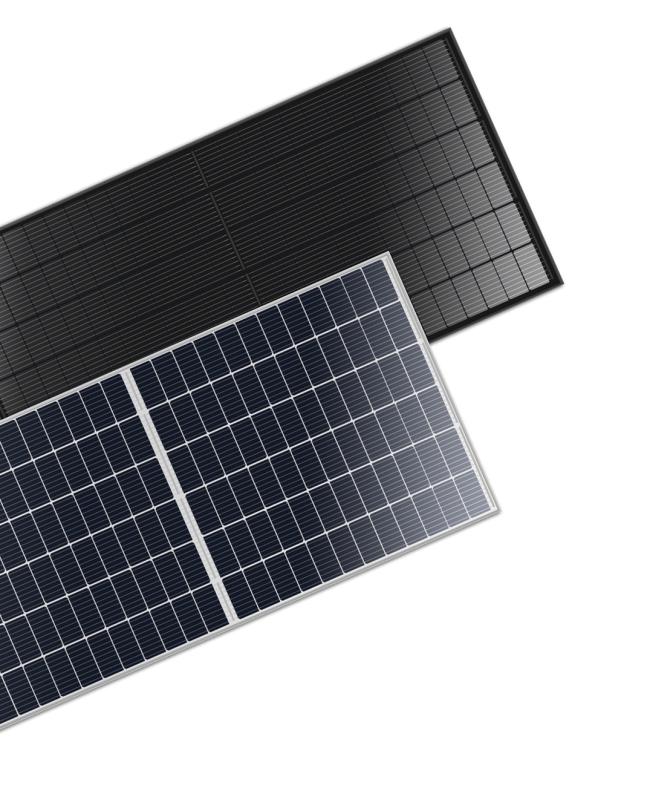

460w Monocrystalline Solar Panel 440w 450w 550w All Full Black
Price:
$0.26/watts 20000-999999 watts
MOQ:
20000 watts
Delivery Time:
Negotiable
Brand:
TTNergy
Product Description
TTNergy Mono crystalline 166mm 9BB Solar panel
166mm solar panel use 166mm 9BB solar cell, increases the wafer size, optimizes the layout profoundly and decreases the invalid power generation area.
|

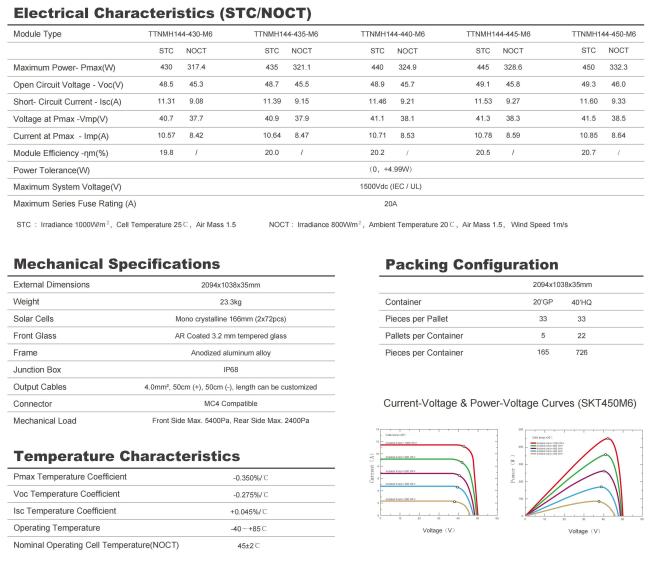

Model
|
Maximum Power
|
Efficiency
|
External Dimensions
|
Weigh
|
Solar Cells
|
Tandem structure
|
|
TTNMH144-460-M6
|
460W
|
21.20%
|
2094x1038x35mm
|
23.3kg
|
Mono crystalline 166mm (2x72pcs)
|
9BB
|
|
TTNMH144-455-M6
|
455W
|
20.90%
|
|
|
|
|
|
TTNMH144-450-M6
|
450W
|
20.70%
|
|
|
|
|
|
TTNMH144-445-M6
|
445W
|
20.50%
|
|
|
|
|
|
TTNMH144-440-M6
|
440W
|
20.20%
|
|
|
|
|
|
TTNMH144-435-M6
|
435W
|
20.00%
|
|
|
|
|
|
TTNMH144-430-M6
|
430W
|
19.80%
|
|
|
|
|
|
TTNMH120-380-M6
|
380W
|
20.90%
|
1755x1038x35mm
|
19.5kg
|
Mono crystalline 166mm (2x60pcs)
|
|
|
TTNMH120-375-M6
|
375W
|
20.60%
|
|
|
|
|
|
TTNMH120-370-M6
|
370W
|
20.30%
|
|
|
|
|
|
TTNMH120-365-M6
|
365W
|
20.00%
|
|
|
|
|
|
TTNMH120-360-M6
|
360W
|
19.80%
|
|
|
|
|
Only some models, please contact customer service if other models are needed.
TTNergy 166mm Solar Panel adopts 9 busbar technology. More busbars of the cell decrease the current transverse propagation path by
50%, effectively reduce the internal loss, and improve power of solar panels.
50%, effectively reduce the internal loss, and improve power of solar panels.
01. 120/144Cells Solar Panels
02. All Black Solar Panel for home use
03. 360W-460W+ Solar Panel, Suitable for residential roofs
Solar cell
TTN-M6-9B
166mm Mono Solar Cell
Efficiency: 22.0%-22.9%
Format:166mm×166mm±0.25mm
Thickness: 190±30μm
Front(-): 0.7mm bus bars(silver),
blue anti-reflecting coating(silicon nitride)
Back(+): 1.5mm wide soldering pads
(silver back surface field(aluminum)
TTNergy High-efficiency 9BB Mono cell uses the unique bifacial light receiving structure and the Passivated Emitter and Rear Cell(PERC) technology. Manufacturing module with more than 360w(6×10) and 440W(6×12) power output becomes easier than ever.
Projects

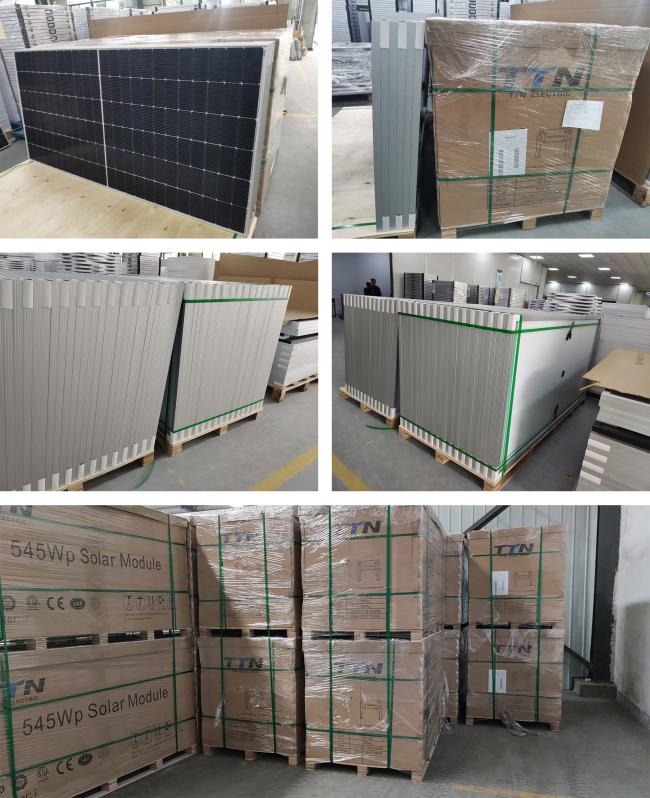

Product packaging
