Commercial Industrial 410watt Solar Panel 9BB 120 Half Cell Pv Module
Price:
$0.21/watts 1000-19999 watts
MOQ:
1000 watts
Delivery Time:
Negotiable
Brand:
PNG Solar
Product Description
Products Description
KEY FEATURES
Multi Busbar Technology
Better light trapping and current collection to improve module power output and reliability.
Longer Life-time Power Yield
0.45% annual power degradation and 30 year linear power warranty.
PID Resistance
Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
Low-light Performance
Advanced glass and cell surface textured design ensure excellent performance in low-light environment.
Enhanced Mechanical Load
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
Higher Power Output
Module power increases 5-25% generally, bringing significantly lower LCOE and higher IRR.
LINEAR PERFORMANCE WARRANTY
12 Year Product Warranty
30 Year Linear Power Warranty
0.45% Annual Degradation Over 30 years
Multi Busbar Technology
Better light trapping and current collection to improve module power output and reliability.
Longer Life-time Power Yield
0.45% annual power degradation and 30 year linear power warranty.
PID Resistance
Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
Low-light Performance
Advanced glass and cell surface textured design ensure excellent performance in low-light environment.
Enhanced Mechanical Load
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
Higher Power Output
Module power increases 5-25% generally, bringing significantly lower LCOE and higher IRR.
LINEAR PERFORMANCE WARRANTY
12 Year Product Warranty
30 Year Linear Power Warranty
0.45% Annual Degradation Over 30 years
Product Paramenters
|
Rated Power Watt- Pmax (W)
|
390W
|
395W
|
400W
|
405W
|
410W
|
||||
|
Maximum Power Voltage-Vmp(V)
|
41.1
|
41.4
|
41.7
|
42.0
|
42.3
|
||||
|
Maximum Power Current- Imp (A)
|
9.49
|
9.55
|
9.6
|
9.65
|
9.69
|
||||
|
Open Circuit Voltage- Voc (V)
|
49.3
|
49.5
|
49.8
|
50.1
|
50.4
|
||||
|
Short Circuit Current- Isc (A)
|
10.12
|
10.23
|
10.36
|
10.48
|
10.6
|
||||
|
Module Efficiency (%)
|
19.63
|
19.67
|
19.88
|
20.13
|
20.38
|
||||
|
Power Output Tolerance (W)
|
0 ~ +3
|
|
|
|
|
||||
|
STC
|
Irradiance 800W/m², Ambient temperature 20ºC,Wind speed 1m/s
|
|
|
|
|
||||
|
Operational Temperature
|
-40~+85ºC
|
|
|
|
|
||||
|
Maximum System Voltage
|
1500VDC
|
|
|
|
|
||||
|
Max Series Fuse Rating
|
20A
|
|
|
|
|
||||
|
Temperature coefficient of Pmax
|
-0.36%/ºC
|
|
|
|
|
||||
|
Temperature coefficient of Voc
|
-0.28%/ºC
|
|
|
|
|
||||
|
Temperature coefficient of Isc
|
0.048%/ºC
|
|
|
|
|
||||
|
Nominal Operating Cell Temperature
|
45±2ºC
|
|
|
|
|
||||

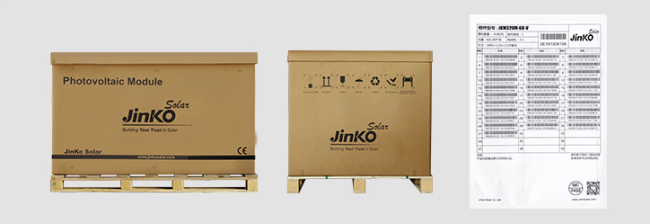

Product packaging
