1Kw 2Kw 1500W 5Kw 3Kw Portable Solar Generator 2000w 6000w 3000w 5000w
Price:
$265.00/pieces 1-19 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
TTNergy
Product Description
Products Description
TTN-ESS Series Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
2. Combine inverter/solar controller/battery all in one.
3. Multiple output: 2*AC output socket, 4*DC 12V, 4*USB.
4. Working mode AC prior/ECO mode/Solar prior selectable.
5. AC charging current 0-30A selectable.
6. LVD/HVD/Charging voltage adjutable, suitable for kinds of battery
7. Adding fault code to monitor real-time work situations.
8. Continuous stable pure sine wave output with inbuilt AVR stabilizer.
9. Inbuilt automatic AC charger and AC mains switcher, stwitch time ≤ 4ms.
10. RS485/MOBILE APP(WIFI or GPRS) remote mornitoring.
|
Specification
|
|
|
|
|
|
|
|
|
||||||||
|
Model : TTN-ESS
|
|
301P
|
501P
|
102P
|
152P/W
|
202P/W
|
302P/W
|
|
||||||||
|
Capacity
|
Rated power
|
300W
|
500W
|
1000W
|
1500W
|
2000W
|
3000W
|
|
||||||||
|
|
Peak power(20ms)
|
900VA
|
1500VA
|
3000VA
|
4500VA
|
6000VA
|
9000VA
|
|
||||||||
|
Input
|
Stardard battery voltage
|
12VDC
|
|
|
24VDC
|
|
|
|
||||||||
|
|
AC input voltage range
|
73~138VAC(110VAC)/83~148VAC(120VAC)/145~275VAC(220VAC)/ 155~285VAC(230VAC)/165~295VAC(240VAC)
|
|
|
85VAC~138VAC (110VAC) / 95VAC~148VAC (120VAC) / 170VAC~275VAC (220VAC)/ 180VAC~285VAC (230VAC)/ 190VAC~295VAC (240VAC)
|
|
|
|
||||||||
|
|
AC input frequency range
|
45Hz~55Hz(50Hz);55Hz~65Hz(60Hz)
|
|
|
|
|
|
|
||||||||
|
Output
|
Conversion efficiency
|
≥85%(Battery mode); >99%(AC mode)
|
|
|
|
|
|
|
||||||||
|
|
AC Output voltage
|
110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2%/ 240VAC±2%(Battery mode); 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% /
240VAC±10%(AC mode) |
|
|
|
|
|
|
||||||||
|
|
AC Output frequency
|
50/60Hz±1%(Battery mode); Tracking Automatically(AC mode)
|
|
|
|
|
|
|
||||||||
|
|
AC Output waveform
|
Pure Sine Wave
|
|
|
|
|
|
|
||||||||
|
|
THD
|
≤3%(Linear load)
|
|
|
|
|
|
|
||||||||
|
|
DC Output voltage
|
4*DC 12V; 2*USB(5V)
|
|
|
4*DC 12V; 4*USB(5V)
|
|
|
|
||||||||
|
solar charger (Optional)
|
Charging mode
|
PWM
|
|
|
PWM/MPPT
|
|
|
|
||||||||
|
|
Max PV input voltage(Voc)
(At the lowest temperature) |
50V
|
|
|
PWM: 50V; MPPT: 150V
|
|
|
PWM: 100V; MPPT: 150V
|
||||||||
|
|
PV input voltage range
|
15V~44V
|
|
|
PWM: 30V~44V; MPPT: 30V~120V
|
|
|
PWM: 60V-88V; MPPT: 60V-120V
|
||||||||
|
|
Charge & discharge current
|
20A
|
|
40A
|
60A
|
|
|
|
||||||||
|
|
Max PV input power
|
280W
|
|
560W
|
1680W
|
|
|
3360W
|
||||||||
|
Inbuilt battery
|
Capacity
|
1*50AH
|
|
1*100AH
|
2*200AH
|
|
|
4*200AH
|
||||||||
|
|
Battery size(LxWxH)/pcs
|
229*138*210(228)
|
|
407*174*210(240)
|
522*240*218(244)
|
|
|
|
||||||||
|
Physical
|
Dimention L x W x H(mm)
|
358*192*390
|
|
488*232*450
|
560*350*928
|
|
|
610*535*960
|
||||||||
|
|
Net weight(kg)(without battery)
|
8
|
10
|
16
|
37
|
39
|
43
|
53
|
||||||||
|
Packing
|
Dimention L x W x H(mm)
|
400*252*500
|
|
550*295*625
|
638*427*1063
|
|
|
688*612*1093
|
||||||||
|
|
Gross weight(kg)(without battery)
|
11
|
13
|
21
|
47
|
49
|
53
|
68
|
||||||||
|
|
Quantity/CTN
|
1pcs per wooden case
|
|
|
|
|
|
|
||||||||
|
Model : TTN-ESS
|
|
152P8/W8
|
202P8/W8
|
302P8/W8
|
402P/W
|
502P/W
|
602P/W
|
702P/W
|
||||||||
|
Capacity
|
Rated power
|
1500W
|
2000W
|
3000W
|
4000W
|
5000W
|
6000W
|
7000W
|
||||||||
|
|

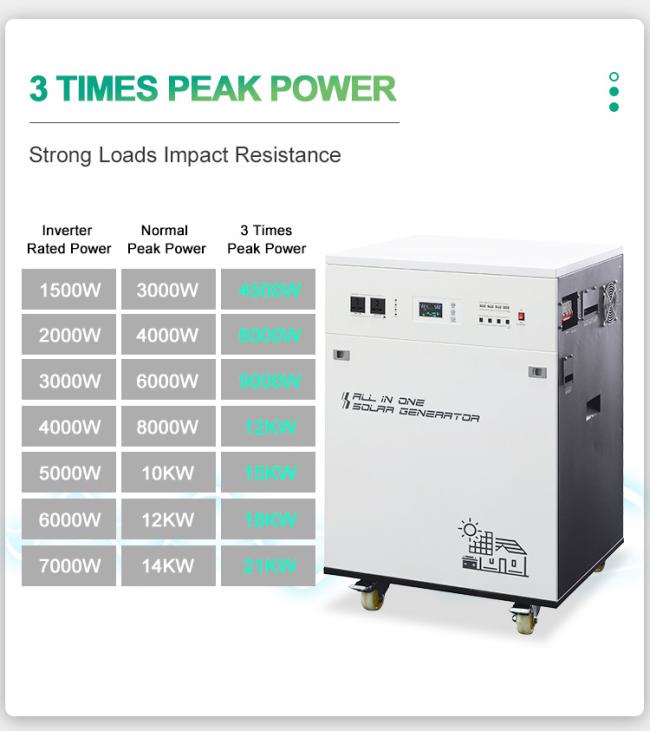

Peak power(20ms)
|
4500VA
|
6000VA
|
9000VA
|
12KVA
|
15KVA
|
18KVA
|
21KVA
|
||||||||
|
Input
|
Stardard battery voltage
|
48VDC
|
|
|
|
|
|
|
||||||||
|
|
AC input voltage range
|
85VAC~138VAC (110VAC) / 95VAC~148VAC (120VAC) / 170VAC~275VAC (220VAC)/ 180VAC~285VAC (230VAC)/ 190VAC~295VAC (240VAC)
|
|
|
|
|
|
|
||||||||
|
|
AC input frequency range
|
45Hz~55Hz(50Hz);55Hz~65Hz(60Hz)
|
|
|
|
|
|
|
||||||||
|
Output
|
Conversion efficiency
|
≥85%(Battery mode); >99%(AC mode)
|
|
|
|
|
|
|
||||||||
|
|
AC Output voltage
|
110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2%/ 240VAC±2%(Battery mode); 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% /
240VAC±10%(AC mode) |
|
|
|
|
|
|
||||||||
|
|
AC Output frequency
|
50/60Hz±1%(Battery mode); Tracking Automatically(AC mode)
|
|
|
|
|
|
|
||||||||
|
|
AC Output waveform
|
Pure Sine Wave
|
|
|
|
|
|
|
||||||||
|
|
THD
|
≤3%(Linear load)
|
|
|
|
|
|
|
||||||||
|
|
DC Output voltage
|
4*DC 12V; 4*USB(5V)
|
|
|
|
|
|
|
||||||||
|
solar charger (Optional)
|
Charging mode
|
PWM/MPPT
|
|
|
|
|
|
|
||||||||
|
|
Max PV input voltage(Voc)
(At the lowest temperature) |
PWM: 100V; MPPT: 150V
|
|
|
|
|
|
|
||||||||
|
|
PV input voltage range
|
PWM: 60V-88V; MPPT: 60V-120V
|
|
|
|
|
|
|
||||||||
|
|
Charge & discharge current
|
60A
|
|
|
|
|
|
|
||||||||
|
|
Max PV input power
|
3360W
|
|
|
|
|
|
|
||||||||
|
Inbuilt battery
|
Capacity
|
4*200AH
|
|
|
|
|
|
|
||||||||
|
|
Battery size(LxWxH)/pcs
|
522*240*218(244)
|
|
|
|
|
|
|
||||||||
|
Physical
|
Dimention L x W x H(mm)
|
610*535*960
|
|
|
|
|
|
|
||||||||
|
|
Net weight(kg)(without battery)
|
53
|
55
|
59
|
61
|
63
|
64
|
66
|
||||||||
|
Packing
|
Dimention L x W x H(mm)
|
688*612*1093
|
|
|
|
|
|
|
||||||||
|
|
Gross weight(kg)(without battery)
|
68
|
70
|
74
|
76
|
78
|
79
|
81
|
||||||||
|
|
Quantity/CTN
|
1pcs per wooden case
|
|
|
|
|
|
|
||||||||
|
AC charger
|
AC charging current
|
0~30A(Depends on model)
|
|
|
|
|
|
|
||||||||
|
|
AC charging method
|
Three-stage(constant current, constant voltage, floating charge)
|
|
|
|
|
|
|
||||||||
|
Other
|
Transfer time
|
≤4ms
|
|
|
|
|
|
|
||||||||
|
|
Protection
|
with over-voltage, low-voltage, overload, short circuit, high tempreature protections
|
|
|
|
|
|
|
||||||||
|
|
Display
|
LCD & LED
|
|
|
|
|
|
|
||||||||
|
|
Cooling way
|
Cooling fan in intelligent control
|
|
|
|
|
|
|
||||||||
|
|
Communication(Optional)
|
RS485/APP(WIFI monitoring or GPRS monitoring)(Models below 1000W (including 1000W) are not supported)
|
|
|
|
|
|
|
||||||||
|
Working mode
(selectable) |
d1
|
AC priority mode
|
|
|
|
|
|
|
||||||||
|
|
d2
|
ECO mode
|
|
|
|
|
|
|
||||||||
|
|
d3
|
Solar priority mode
|
|
|
|
|
|
|
||||||||
Note:
How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.
For details, please refer to the manual recommendation or consult online customer service.
For details, please refer to the manual recommendation or consult online customer service.
Product Details
Wiring Diagram
If you want to get the wiring diagram for other power,please contact us
