TTN PC SCR AC AVR Automatic Voltage Regulators/Stabilizers price 110V 220V 4000w 5000w 5kva 10kva stablilizer voltage regulator
Price:
$76.00/pieces 1-9 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
TTN
Product Description
Products Description
TTN Voltage Regulators/Stabilizers
PC-SCR series SCR Voltage Stabilizer

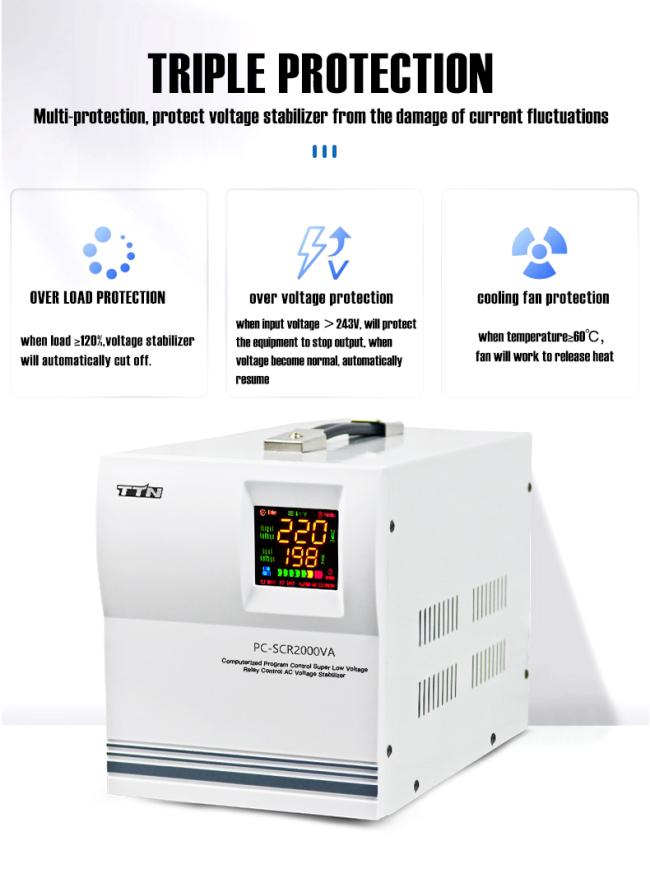

PC-SCR series SCR Voltage Stabilizer has the low energy consumption, the over voltage protection, the low voltage protection, the over-current protection, the over-loading protection, the over-temperature protection and so on. It boasts for many kinds of protections, the collection energy conservation and the environmental protection etc. This is a brand-new concept product which possess many new technologies! This series products simultaneously have applied for many technical monopolies. We already applied many kinds of this products patent, and the technical patent NO: 200720036394.1 and Appearance paten NO: 200730025909.3
PC-SCR series SCR Voltage Stabilizer Use For Equipment:
Computer
Test equipment
Light system
Safe alarm system
Ray equipment
Medical equipment
Copy machine
Stereo equipment
Numerical control machine tools
Industrial automation equipment
Color and drying equipment
Test equipment
Hi-Fi equipment
Computer
Test equipment
Light system
Safe alarm system
Ray equipment
Medical equipment
Copy machine
Stereo equipment
Numerical control machine tools
Industrial automation equipment
Color and drying equipment
Test equipment
Hi-Fi equipment
MODEL | PC-SCR500VA | PC-SCR1000VA | PC-SCR1500VA | PC-SCR2000VA | ||||
PC-SCR3000VA | PC-SCR5000VA | PC-SCR8000VA | PC-SCR10000VA | |||||
TECHNOLOGY | Triac Control System+ Micro computer programmed control | |||||||
LED DISPLAY | Info. | Input Voltage/Output Voltage/Load Usage/Time Delay/Normal Working/Protection | ||||||
Protection | Over Voltage | Output voltage≥243±4V | ||||||
Low Voltage | Input voltage≤188±4V | |||||||
Over Loading | >120% | |||||||
Over Temperature | 120℃±10℃ | |||||||
Delay Time | Long time (255s)/ short time (5s) | |||||||
Circuit Breaker | ||||||||
Language | English/Russian/Chinese | |||||||
INPUT VOLTAGE | AC90-270V | |||||||
OUTPUT VOLTAGE | Input 90-140V, Output 220V±7%; Input 140-250V, Output 220V±4%; Input 250-270V, Output 220V±7% | |||||||
FREQUENCY | 50/60Hz | |||||||
PHASE | Single Phase | |||||||
EFFICIENCY | ≥90% | |||||||
AMBIENT TEMPERATURE | -15℃~45℃ | |||||||
RELATIVE HUMIDITY | <95% | |||||||
WAVEFORM DISTORTION | no additional wave form distortion | |||||||
INSULATING RESISTANCE | Normally more than 2MΩ | |||||||
SPECIFICATIONS | ||||||||
POWER | 500VA | 1000VA | 1500VA | 2000VA | ||||
PACKING SIZE(cm) | 35.8*30.3*42.3 | 39.6*35.3*46.7 | 39.6*35.3*46.7 | 39.6*35.3*46.7 | ||||
PACKING (pcs) | 4 | 4 | 4 | 4 | ||||
G.M.(kgs) | 15.14 | 17.98 | 21.08 | 27.84 | ||||
POWER | 3000VA | 5000VA | 8000VA | 10000VA | ||||
PACKING SIZE(cm) | 38.6*27.7*29.8 | 38.6*27.7*29.8 | 43.3*27.7*29.8 | 44.2*30.4*37.1 | ||||
PACKING (pcs) | 1 | 1 | 1 | 1 | ||||
G.M.(kgs) | 12.75 | 16.22 | 19.06 | 25.70 | ||||
Product packaging
Certifications
Company Profile
Professional Voltage Stabilizer Manufacturer
TTN is a professional manufacturer of voltage stabilizers for 27 years. It has an independent R & D department. In the voltage stabilizer industry, TTN is the first company to use digital program circuits, microcomputer program control and LED digital display, which greatly improves the product performance and service life. The company adopts a toroid transformer, which greatly improves the actual power of products. The appearance design and product quality are deeply trusted by customers.
