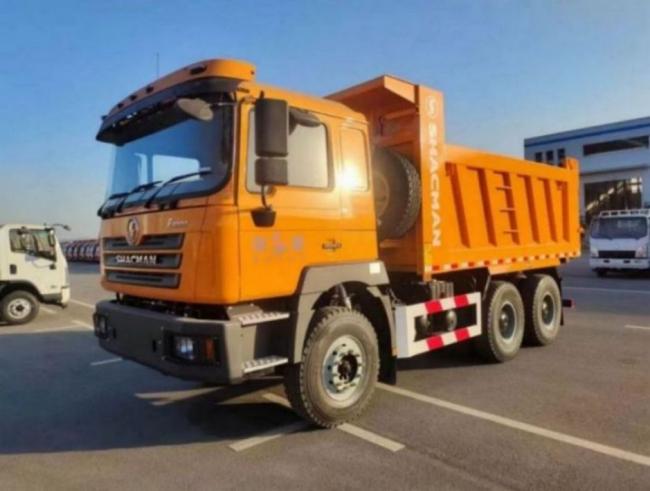

SHACMAN X3000 Tipper Dump truck 6x4 10 tries 380Hp Euro II
SHACMAN X3000 Tipper Dump truck 6x4 10 tries 380Hp Euro II
Detailed Product Description
Model:SX32556T384
Drive type:6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model:WP10.380E22
Engine Power/(kw/HP): 279kw / 380Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50
Tipper Dump truck Parameters
| Model | SX32556T384 | |
| Drive type | 6x4 | |
| Weight | Gross Vehicle Weight | ≤50 |
| Dimensions | Wheelbase/(mm) | 3775+1400 |
| Performance | Maximum speed/(km/h) | 40～55/75 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP10.380E22 | |
| Power/(kw/HP) | 279kw / 380Hp | |
| Maximum torque / (N.M)/rpm | 1600 N·M | |
| Displacement/(L) | 9.726 L | |
| Emission standard | Euro II | |
| Gear box | Brand | FAST |
| Model | 10JSD180+QH50 | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+7) | |
| Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
| Axles | Brand | HANDE |
| Front axle | 9.5T front axle MAN technology | |
| Rear axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92 | |
| Tires | Type | 12.00R20 |
| Fuel tank | Tank capacity/(L) | 300L Aluminum tank |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Cab | Type | SHACMAN X3000 Medium-length flat cab |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, electronically controlled automatic constant temperature air conditioner, electric window shaker, ordinary rearview mirror, 165Ah maintenance-free battery, SHACMAN logo, full English logo. | |
- Configuration: The SHACMAN X3000 Tipper Dump Truck has a 6x4 configuration, meaning it has six wheels with four of them powered. This configuration provides good traction and load-carrying capacity, making it suitable for various terrains and load requirements.
- Engine: Equipped with a 380 horsepower engine, the truck offers ample power for hauling heavy loads and ensures satisfactory performance and acceleration.
- Dumping Capacity: With its 10 tires, the truck has a significant hauling capacity, allowing it to transport substantial amounts of material. It is well-suited for construction, mining, and other industries that require efficient transportation of bulk materials.
