SHACMAN F3000 Dump Truck 8x4 375Hp Euro V YELLOW Tipper for Model SX3255DT384
SHACMAN F3000 Dump Truck 8x4 375Hp Euro V
Detailed Product Description
Model: SX3318DT366
Drive type: 8x4
Engine Brand: WEICHAI
Engine Model: WP12.375E50
Engine Power/(kw/HP): 276kw / 375Hp
Gear box Brand: FAST
Gear box Model: 12JSD200T-B+QH50
Dump Truck Parameters
| Model | SX3318DT366 | |
| Drive type | 8x4 | |
| Weight | Gross Vehicle Weight | ≤70 |
| Dimensions | Wheelbase/(mm) | 1800+3575+1400 |
| Performance | Maximum speed/(km/h) | 40～55/75 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP12.375E50 | |
| Power/(kw/HP) | 276kw / 375Hp | |
| Maximum torque / (N.M)/rpm | 1650 N·M | |
| Displacement/(L) | 9.726 L | |
| Emission standard | Euro V | |
| Gear box | Brand | FAST |
| Model | 12JSD200T-B+QH50 | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+7) | |
| Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
| Axles | Brand | HANDE |
| Front axle | 9.5T front axle MAN technology | |
| Rear axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262 | |
| Tires | Type | 12.00R20 |
| Fuel tank | Tank capacity/(L) | 300L Aluminum tank |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Cab | Type | SHACMAN F3000 Medium-length flat cab |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo. | |
Advantages
- The advanced engine technology and optimized drivetrain of the F3000 dump truck contribute to improved fuel efficiency. This results in reduced fuel consumption, lowering operational costs and minimizing environmental impact by reducing carbon dioxide (CO2) emissions.
- The larger payload capacity of the SHACMAN 8x4 dump truck means it can transport more materials in a single trip. This helps to enhance productivity and efficiency by reducing the number of trips required to complete a job, saving time and fuel costs.

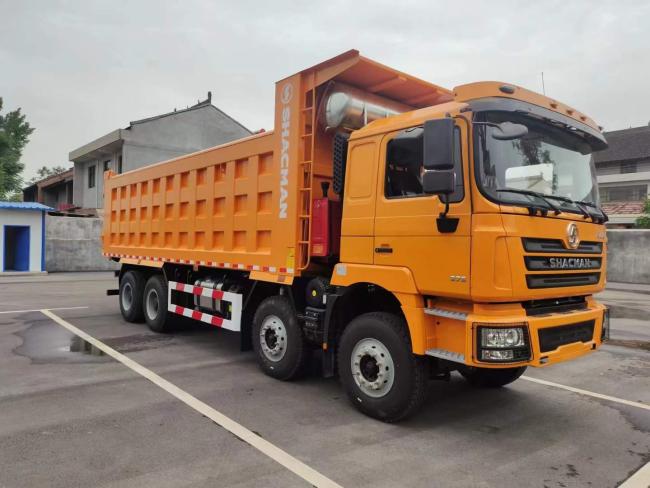

Detailed Image
