SHACMAN F3000 Tipper Truck 6x4 380Hp EuroII White
SHACMAN F3000 Tipper Truck 6x4 380Hp EuroII White
Detailed Product Description
Model:SX3255DT384
Drive type:6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model:W10.380E22
Engine Power/(kw/HP): 280kw / 380Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50
Tipper Dump Truck Parameters
| Model | SX3255DT384 | |
| Drive type | 6x4 | |
| Weight | Gross Vehicle Weight | ≤50 |
| Dimensions | Wheelbase/(mm) | 3775+1400 mm |
| Performance | Maximum speed/(km/h) | 45～60/80 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | W10.380E22 | |
| Power/(kw/HP) | 280kw / 380Hp | |
| Maximum torque / (N.M)/rpm | 1630 N·M | |
| Displacement/(L) | 9.726 L | |
| Emission standard | Euro II | |
| Gear box | Brand | FAST |
| Model | 10JSD180+QH50 | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+7) | |
| Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
| Axles | Brand | HANDE |
| Front axle | 9.5T front axle MAN technology | |
| Rear axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92 | |
| Tires | Type | 12.00R20 |
| Fuel tank | Tank capacity/(L) | 300L Aluminum tank |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Cab | Type | SHACMAN F3000 Medium-length flat cab |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo. | |
Truck Advantages
- The truck is equipped with a 380 horsepower engine, providing ample power for heavy-duty applications. However, specific details about the engine model and displacement may vary depending on the specific variant of the F3000 series.
- It typically comes with a manual transmission, enabling the driver to manually shift gears as needed. The exact number of gears and the specific transmission model may vary.

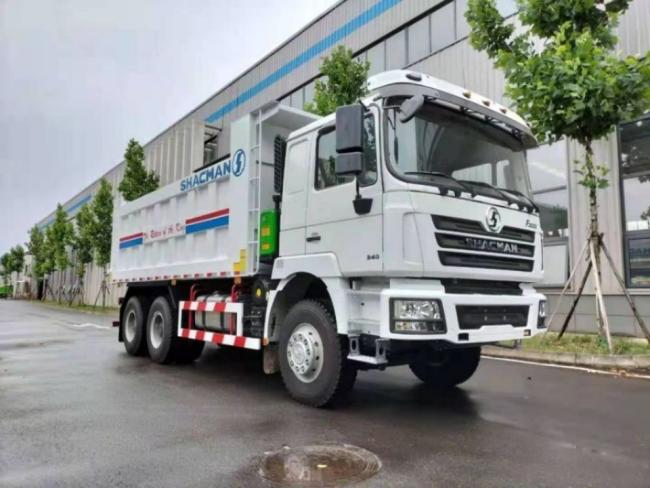

Detailed Image
FAQ
1. Who are we?
We are based in Shaanxi, China, start in 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are a total of about 11-50 people in our office.
2. How can we guarantee quality?
There are always pre-production samples before mass production and final inspection before shipment.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck,
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, DAF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French, Russian, Spanish
