SHACMAN F3000 Tipper Truck 6x4 380Hp EuroII White
SHACMAN F3000 Tipper Truck 6x4 380Hp EuroII White
Detailed Product Description
Model:SX3255DT384
Drive type:6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model:W10.380E22
Engine Power/(kw/HP): 280kw / 380Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50
Tipper Dump Truck Parameters
| Model | SX3255DT384 | |
| Drive type | 6x4 | |
| Weight | Gross Vehicle Weight | ≤50 |
| Dimensions | Wheelbase/(mm) | 3775+1400 mm |
| Performance | Maximum speed/(km/h) | 45～60/80 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | W10.380E22 | |
| Power/(kw/HP) | 280kw / 380Hp | |
| Maximum torque / (N.M)/rpm | 1630 N·M | |
| Displacement/(L) | 9.726 L | |
| Emission standard | Euro II | |
| Gear box | Brand | FAST |
| Model | 10JSD180+QH50 | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+7) | |
| Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
| Axles | Brand | HANDE |
| Front axle | 9.5T front axle MAN technology | |
| Rear axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92 | |
| Tires | Type | 12.00R20 |
| Fuel tank | Tank capacity/(L) | 300L Aluminum tank |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Cab | Type | SHACMAN F3000 Medium-length flat cab |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo. | |
Truck Advantages
- The F3000 is equipped with a 375 HP engine that provides plenty of power for heavy-duty applications. This allows it to handle demanding tasks and carry heavy loads efficiently.
- The F3000 dump truck uses a military grade chassis, and the cab has been reinforced and upgraded with reinforced driveshafts, improved cab front suspension, new front axle stabilizer bar and muffler, imported cab spindles, and off-road racing quality cab damping springs.

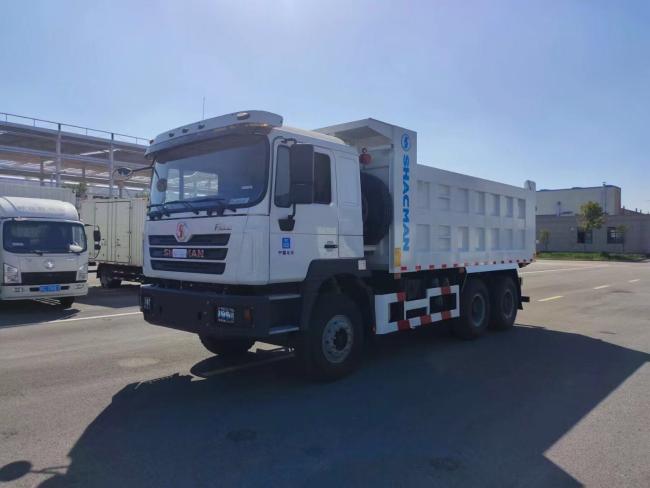

Detailed Image
