High quality coconut oil decanter stack separator centrifuge with great price

High quality coconut oil decanter stack separator centrifuge with great price

decanter stack separator centrifuge is referred to as the horizontal screw centrifuge, which is a horizontal spiral discharge, continuous operation of high-efficiency centrifugal separation and dehydration equipment.

Type: Horizontal screw centrifuges can be generally divided into horizontal spiral filter centrifuges and horizontal spiral sedimentation centrifuges.

Scope of application: The horizontal screw centrifuge is suitable for dewatering sludge produced in industrial and civil sewage treatment, and is also widely used in chemical, light industry, chemical, food, environmental protection and other industries.

decanter stack separator centrifuge Working principle:

the drum and the spiral rotate at a high speed in the same direction at a certain speed. The material is continuously introduced into the conveying screw inner cylinder by the feeding tube, and then enters the rotating drum after acceleration. Under the action of the centrifugal force field, the heavier solid phase deposit is transferred. A sediment layer is formed on the drum wall. The conveying screw continuously pushes the deposited solid phase to the cone end of the drum, and is discharged outside the machine through the slag discharging port. The lighter liquid phase forms an inner liquid ring, which overflows the drum from the overflow end of the drum end and exits the machine through the liquid discharge port. The machine can continuously feed, separate, wash and discharge at full speed.

decanter stack separator centrifuge Technical paramater:

II. decanter stack separator centrifuge Configuration

1.Motor: Dual motor and Dual inverter.

2.Bearing is SKF.

3.The PLC touch screen .(Siemens)

4. Run mode: 24 hours continuously.

7. Starting and driving way:  inverter

8. Vibration sensors: when the machine have problem. The instrument will automatically alarm and make the machine stop.

9. Quick sensors is can show the running speed.

10. Feeding method: continue feeding.

11. Discharging way: automatic continue discharge.

II. decanter stack separator centrifuge Material:

1. All the part contacting with the material is ss304.the machine bowl is SS304.

2. Engine base: carbon steel

3. Base on the surface: protective primer and finish for carbon steel.

4. The spiral is used to surfacing hard alloy wear-resistant layer.

5. The bowl exit is cermet.

decanter stack separator centrifuge Successful case

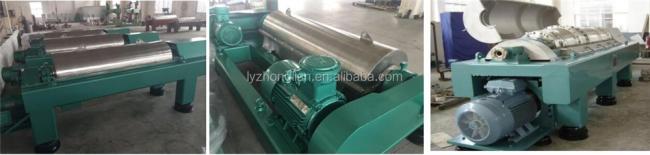

decanter stack separator centrifuge Details:

We are a professional chemical machine and packing machine Project Company, we can supply the turnkey project service. After many years development, we have built long term business relationship with some reliable machinery manufacturers in China, we have water treatment equipment production base, tablet press production base and liquid filling machine production base in Jiangsu province; we have packing machine production base in Zhejiang province and we have soft gelatin machine production base in Beijing. Under support and hard working of our technician, we are trying to supply the best information and service to our clients.

At present, our products have been exported to South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, the United States, Canada, Australia, Spain, Japan, Colombia, Romania and so on more than 20 countries

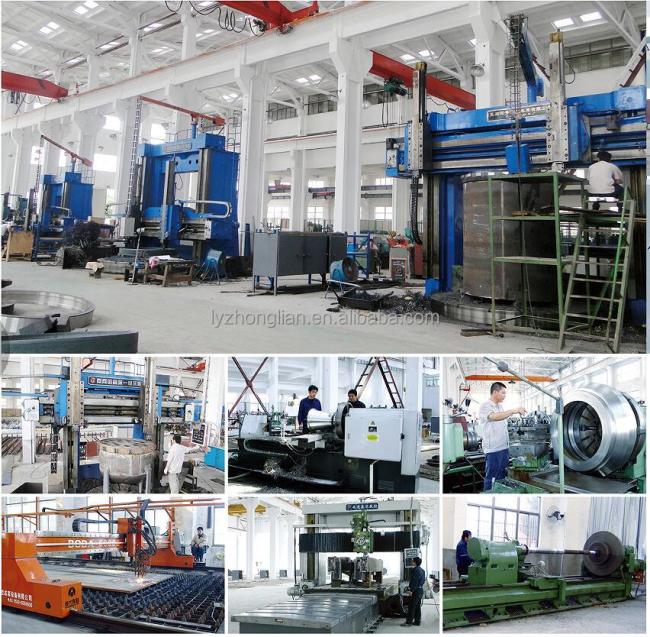

Work shop:

Partner

Production equipment

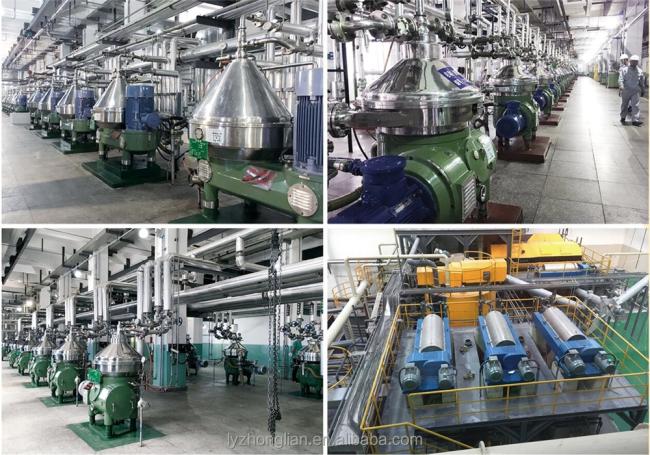

Using spot:
