State-of-the-Art Metal Detector for Food Detection Industry Facing the Display Screen
Price:
$3,200.00/sets >=1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ZONELINK
Product Description
Product Description
Hot sale, High sensitivity and stability, Technic Conveyor belt metal Detectors

Features 1)It adopts the latest generation of digital signal processing (DSP) technology and intelligent algorithms to improve detection accuracy and stability; it is also the only digital metal detector in China that adopts DSP technology. 2)Using German automatic filtering technology (phase adjustment technology), which can effectively suppress product effects; It can detect products with high product effectiveness, such as: frozen food, meat, rice, pickled products, fish paste, etc.; 3)With intelligent settings, the device can automatically set the best sensitivity for the product being tested, and the operation is simple and convenient. 4)Memory function: save the best sensitivity, it can be directly tested in the next test, and the test parameters of 12 products can be stored; 5)LCD display, Chinese and English menu screen, easy to realize man-machine dialogue operation; 6)It can detect a variety of metal materials such as iron, stainless steel, copper, aluminum and lead 7)Flexible digital sensitivity control mode and a variety of advanced manual setting functions; a variety of specifications are available to adapt to different material detection sensitivity requirements; 8)All stainless steel SUS304 manufacturing, high-level protection motors are available; the highest IP69 protection level, suitable for particularly harsh working environments; 9)The simple and detachable frame is convenient for users to clean; the special design of the conveyor belt avoids the deviation of the conveyor belt. 10)A variety of elimination methods are available; precise elimination control ensures reliable elimination of foreign objects with minimal material waste.
Schematic diagram

Specification
Detection channel size | 400mm(W)*100mm(H) | |
Length of the whole machine | 1600MM | |
Conveyor belt height from the ground | 750mm±50mm | |
Conveyor belt width | 350mm | |
Transfer speed | 10-40m/min fixed speed/speed adjustable (prices are different) | |
Conveying direction | Facing the display screen, left in and right out | |
Alarm method | Audible alarm | |
conveyor | PU food grade | |
Total Weight | Within 200KG | |
Operating Voltage | Single AC 220V 50/60Hz | |
Operating temperature | 0℃-40℃ | |
Remarks: Sensitivity will change due to factors such as environment, product effects, etc., subject to actual on-site product testing | ||
Product parameter
Channel size | 2015 | 3008 | 4012 | 4020 | 4030 | 5508 | 5025 | 7010 | 6020 | ||||||||
Length of the whole machine | 1400 | 1400 | 1400 | 1400 | 1400 | 1800 | 1400 | 2100 | 1600 | ||||||||
Overall width | 430 | 630 | 830 | 830 | 830 | 930 | 930 | 1130 | 930 | ||||||||
Conveyor width | 150 | 300 | 350 | 350 | 350 | 500 | 450 | 650 | 550 | ||||||||
Pass width | 260 | 360 | 460 | 460 | 460 | 550 | 560 | 760 | 600 | ||||||||
Pass height | 150 | 80 | 120 | 200 | 300 | 80 | 250 | 100 | 200 | ||||||||
Sensitivity | Fe:1.0 | Fe:1.0 | Fe:0.8 | Fe:1.2 | Fe:2.0 | Fe:1.0 | Fe:1.2 | Fe:1.0 | Fe:1.5 | ||||||||
SU:1.2 | SU:1.2 | SU:1.2 | SU:2.0 | SU:2.5 | SU:1.2 | SU:1.2 | SU:1.2 | SU:2.0 | |||||||||
SUS:1.5 | SUS:1.5 | SUS:1.5 | SUS:2.5 | SUS:3.5 | SUS:1.5 | SUS:1.5 | SUS:1.5 | SUS:2.5 | |||||||||
Remarks | This sensitivity is the sensitivity of the empty machine state, which will change due to factors such as environment, product effects, etc., subject to actual on-site product testing | ||||||||||||||||

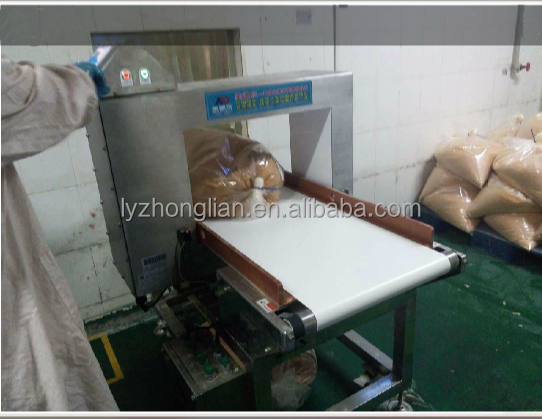

Detection range, case









Packing & Delivery

Company Profile

Our company belongs to ZHONGLINAN international Group. We are the professional manufacturer of industry equipment and food equipment, which including filling equipment, packing equipment, dryer and relevant complete set of production line equipment.Group was founded in 2001, the headquarters is located in Liaoyang city, Liaoning province. The factory covers an area of ten thousand square meters, production workshop seven thousand square meters. The factory own a professional r&d team and after-sales service team. Our aim is saving your valuable time and cost,providing you with the workable solution!
