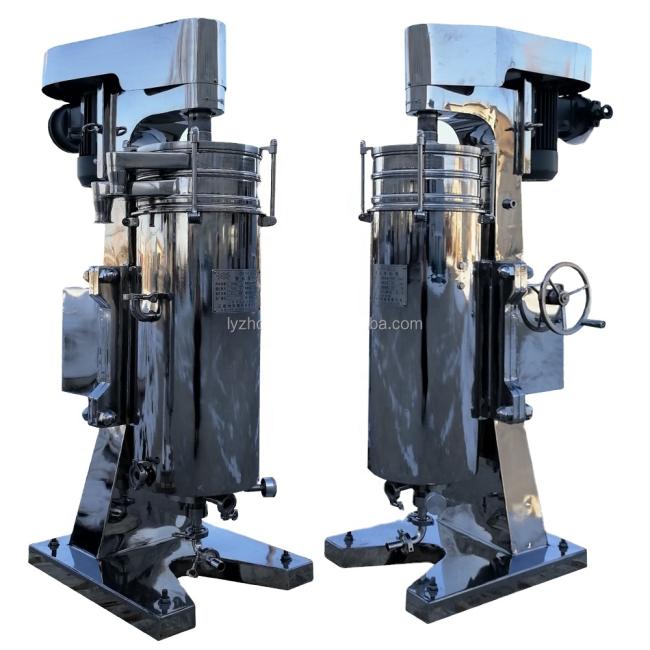

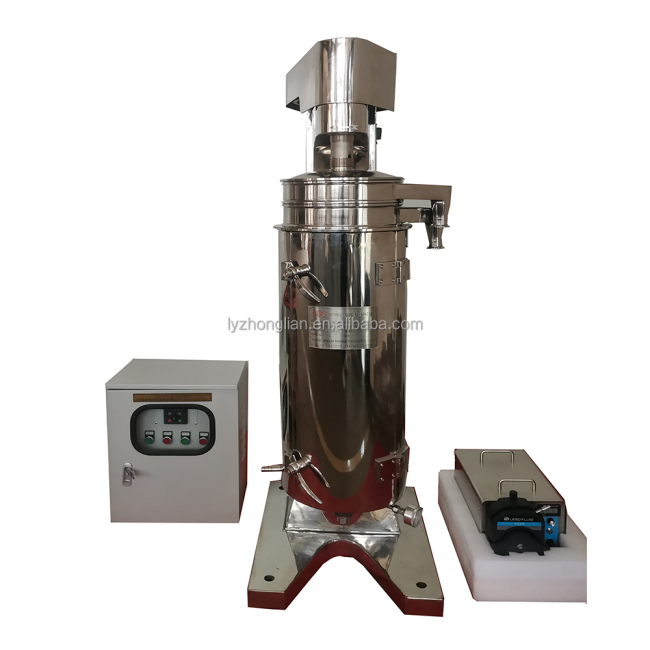

Tubular Bowl Centrifuge for Liquid Solid Separation at 20000rpm in Chemical Processing
Price:
$3,500.00 - $9,000.00/sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Zonelink
Product Description
Product Description
Main Application
GQ type tubular centrifuge is mainly used for separating all kinds of suspension difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration,
heavy viscosity,fine particles and very small differential gravity of the two phases.For example clarifying all kinds of fluid, glucose chlorhexidine, malic acid, oral solution, radix soghorae tonkinensis, coal tar and graphite; extracting protein, algae, saponin, pectin, sirup; blood separation, settling vaccine mycelia and all kinds of glucose; refining paint, resin, and latex solution.
Painted ink separation
Bacterial broth separation
Silicon powder separation
Structure & Principle
Tubular centrifuge separator is high speed centrifuge with strong capacity. The main parts: machine body, driving part,bowl,liquid collecting pan, liquid-in bearing seat.The material is sprayed onto the bowl from the inlet on the bottom and strong centrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the bowl and then separated because of the different gravity by the centrifuge force. GQ-for clarification: Heavy solid is deposited on the inner wall of the bowl,and forms the sludge. And it will be discharged by manual after the machine stops. The clear liquid flows out of outlet from the top of the bowl.The motor connect with the big pulley and delivery the power to the spindle through the belt, tensioner and small pulley and rotate with the bowl in high-speed as the clockwise. |
Detailed Images
The bowl in tubular centrifuge
The bowl is the mian part of tubular centrifuge,all stainless steel material.The solid in the bowl after separation need to be discharged manually.There is a three-wing in the bowl,need to be installed well before start machine.
The motor of tubular centrifuge
We can provide standard normal motor or explosion-proff motor.Normal power supply is 380V,50HZ,3-phase,2.2kw.Different voltage in different country can be customized.such as 220V or 415V,50HZ or 60HZ,1-phase or 2-phase.
The liquid feeding inlet
The feeding inlet of raw liquid is at the bottom of machine.All the material contact with raw liquid is stainless sleel 304.Also stainess steel 316 can be required.The user can use pump or high-low position feeding tank to feed.
The liquid outlet
GQ tubular centrifuge is two-phase solid-liquid separator.There is only one liquid outlet.The user need just one pipe contact with the one outlet.The solid is at the bowl and need to be discharged be manual.
Package & Shipping
Related Products
Company Information
Liaoyang Zhonglian Machinery Company was established in October 2001,own many years of professional production experience.The company is located in China's earliest engaged in the centrifuge factory liaoyang city,liaoning province,covers product workshop area of seven thousand square meters,special engaged in the centrifuge separator and other machinery.The products have been widely used in many industries,such as food,chemical and many other industries.Our products were exported to many countries,North American countries such as the USA, Mexico.Aoutheast Asian countries such as Thailand, Singapore, Malaysia, Indonesia.East Asian countries such as Korea.South American countries such as Venezuela, Peru. With reliable quality & excellent after-sales service,we won the support of the broad masses of overseas customers.
