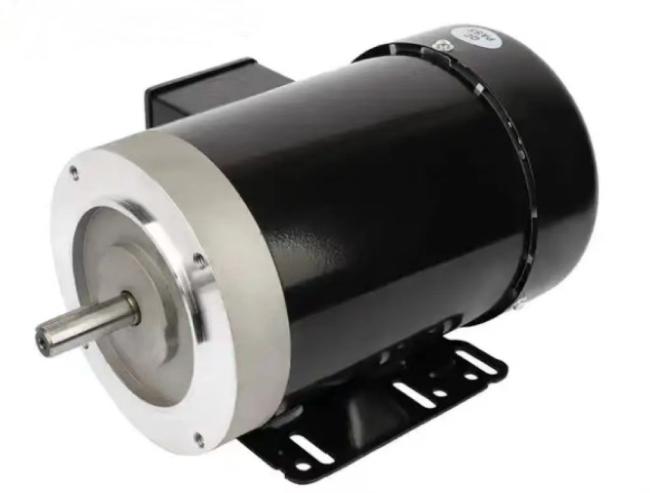

1.5HP 4P General Purpose AC Motors NEMA 56C 208-230V 460V Electric Three Phase Motor
General Purpose-NEMA 56C 1.5HP 4P 208-230/460V Electric Three Phase motor
NEMA General Purpose 56C three phase motor serials :
1/3rd to 3 HP 1800 and 3600 C flange with feet and feetless, our 56C Frame motors are suitable for a variety of commercial/industrial applications.
The shaft is standard 5/8" diameter and made of a high grade tensile strength steel. State of the art cast aluminum end bells are ground to precision 56C for mounting to all gear reducers as well. These motors are electrically reversible and are protected with class F insulation or inverter duty applications as customer request.
Standard Features
- High Starting Torque
- NEMA Designed B
- Class F insulation
- Inverty duty rated if customer request
- C Flange with feet or feetless
- TEFC Enclosure
- Heavy Gauge rolled steel construction
- 208-230/460 or 575V Volt Three Phase
- UL or CSA agency
Data Sheet Specification
| MH-Model | HP | RPM | FRAME | Volts | HZ | SF | FLA |
INSL CLASS |
THERMALLY PROTECTED |
Duty | ENCL | AGENCY |
| MH56C4-250T | 1/3 | 1725 | 56C | 208-230/460 | 60 | 1.15 | 1.7-1.6/0.8 | F | NO | Cont. | TEFC | CSA &UL |
| 1725 | 575 | 0.6 | ||||||||||
| 3450 | 208-230/460 | 1.6-1.5/0.8 | ||||||||||
| 3450 | 575 | 0.6 | ||||||||||
| MH56C4-370T | 1/2 | 1725 | 56C | 208-230/460 | 60 | 1.15 | 2.2-2.0/1.0 | F | NO | Cont. | TEFC | CSA &UL |
| 1725 | 575 | 0.8 | ||||||||||
| 3450 | 208-230/460 | 2.3-2.2/1.1 | ||||||||||
| 3450 | 575 | 0.8 | ||||||||||
| MH56C4-550T | 3/4 | 1725 | 56C | 208-230/460 | 60 | 1.15 | 3.0-2.8/1.4 | F | NO | Cont. | TEFC | CSA &UL |
| 1725 | 575 | 1.1 | ||||||||||
| 3450 | 208-230/460 | 3.0-2.9/1.45 | ||||||||||
| 3450 | 575 | 1.0 | ||||||||||
| MH56C4-750T | 1 | 1725 | 56C | 208-230/460 | 60 | 1.15 | 4.0-3.8/1.8 | F | NO | Cont. | TEFC | CSA &UL |
| 1725 | 575 | 1.3 | ||||||||||
| 3450 | 208-230/460 | 3.8-3.6/1.8 | ||||||||||
| 3450 | 575 | 1.2 | ||||||||||
| MH56C4-1100T | 1.5 | 1725 | 56C | 208-230/460 | 60 | 1.15 | 5.0-4.8/2.3 | F | NO | Cont. | TEFC | CSA &UL |
| 1725 | 575 | 4.8-4.6/2.3 | ||||||||||
| 3450 | 208-230/460 | 1.8 | ||||||||||
| 3450 | 575 | 1.6 | ||||||||||
| MH56C4-1500T | 2 | 1725 | 56C | 208-230/460 | 60 | 1.15 | 6.4-6.2/3.0 | F | NO | Cont. | TEFC | CSA &UL |
| 1725 | 575 | 6.2-6.0/3.0 | ||||||||||
| 3450 | 208-230/460 | 2.4 | ||||||||||
| 3450 | 575 | 2 | ||||||||||
| MH56C4-2200T | 3 | 1725 | 56C | 208-230/460 | 60 | 1.15 | 9.2-9.0/4.5 | F | NO | Cont. | TEFC | CSA &UL |
| 1725 | 575 | 4.3 | ||||||||||
| 3450 | 208-230/460 | 8.5-8/4.0 | ||||||||||
| 3450 | 575 | 3.2 |
NOTES: 1. The frame can be customized as 143TC/145TC
2. Above 1HP have the Nema Premium Eff% with CSA or UL , if needed, please contact us.

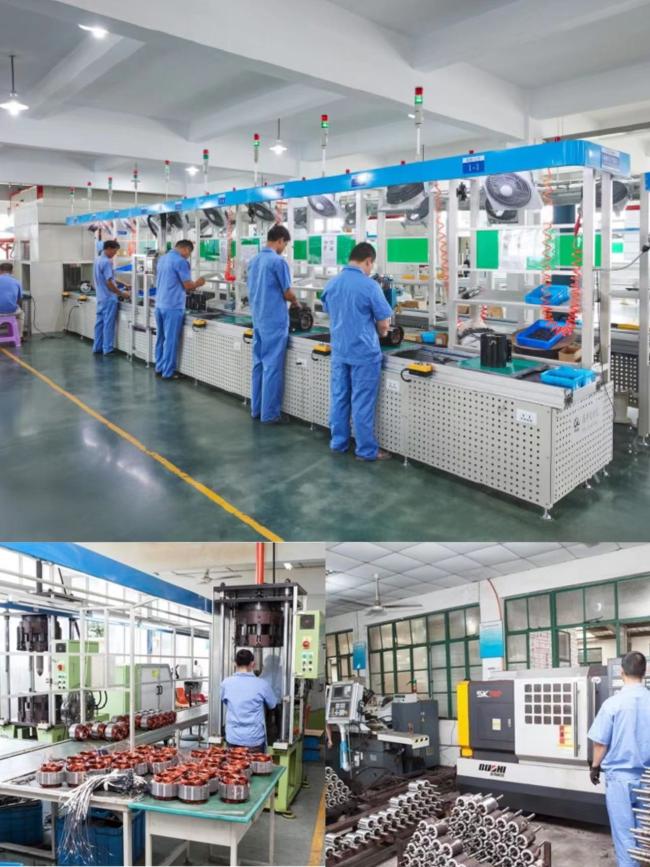

Nema motor facility:
