60mmX420mm Cross Flow Blower Fan Long Impeller 47W 0.42A Universal Blower Motor
China 60mmX430mm long impeller 47W 0.42A AC Cross flow Blowers Fan
Be designed with a long impeller, allowing it to provide a greater airflow and a wider air delivery range. Operated on AC power, making it compatible with standard electrical power supply environments. A cross-flow design, creating a lateral airflow for air circulation and heat dissipation, making it suitable for various applications.
Quick Review:
| Product Name: | 60mmX420mm Long Impeller 47W 0.42A AC Cross Flow Blowers Fan | Motor Type: | MH6035-35078(60X420mm) |
|---|---|---|---|
| Rated Voltage/Frequency: | 230Vac/50Hz | Current(A): | 0.42 |
| Input Power(W): | 47W | Speed(RPM): | 1480 |
| Hi-Pot TEST: | 1800vac50hz,3Ma,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Thermally Protected: | Z.P |
| Wind Speed(m/s): | 6 | Air Volume(CFM): | 182 |
| Application: | Pellet Stove,oven | Agency: | CE /ETL/CCC |
Production Feature :
1. 60mm x 420mm long impeller, high air volume, low noise.
2. Innovative air flow system design reduces overall system costs and simplifies the overall structure.
3. Used in various fields, including plant growth chambers and fireplaces.
4. Driven by a C-FRAME shaded pole motor.
5. Motor can be mounted in any of 4 positions.
6. Ball bearing structure for high-temperature environments and long lifespan.
7. Multiple performance options available.

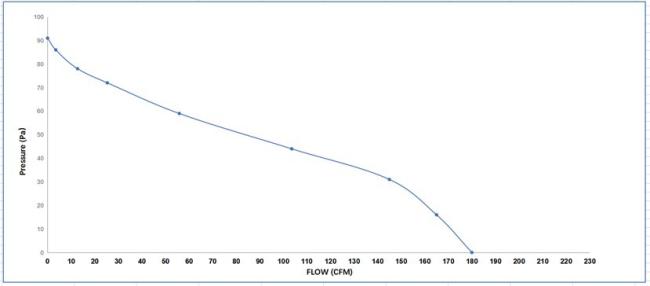

AIR FLOW CURVE
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialize in the field of exporting Shade Pole Motors & blowers for several years. We have our own production facility and a strong R&D team.
The MH crossflow blower makes the air in the box evenly distributed in every corner.
Welcome your business chat and visit.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
