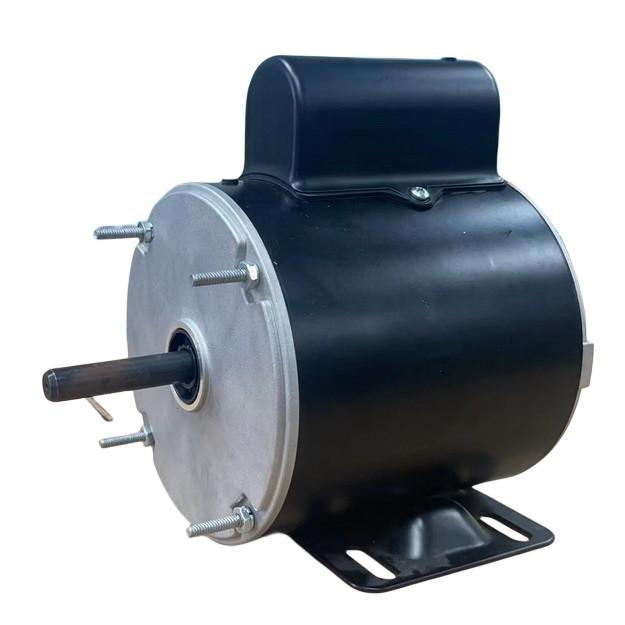

Nema 48FR General Purpose Electric Motor Permanent Split Capacitor Blower Motors 4P 230VAC
General Purpose-Nema 48FR PSC Fan motor rigid base 1/2HP 4P 115/230VAC
The Nema 48FR PSC Fan Motor with a rigid base is a versatile motor designed for various applications especially in farm fans.
The motor has a power output of 1/2hp and4 pole, which determines the motor's speed and torque characteristics. This power rating is suitable for medium-duty farm fan applications. The motor comes with a rigid base, ensuring stability and durability during operation. It allows for secure mounting in various applications.
Quick Review:
| Model Type:: | MH484-370PSC | Rated Voltage/Frequency: | 115/230Vac/60/50Hz |
|---|---|---|---|
| FLA Current(A): | 5.2/5.96; 2.8/3.01 | Output HP: | 1/2 |
| Speed(RPM)(W): | 1725/1450 | Insulation Class: | F |
| Thermally Protected: | Auto | Frame: | 48FR |
| IP CLASS: | IP55 | Mounting: | Rigid Base |
| S.F: | 1.0 | Duty: | Cont. |
| Appliction: | Farm Fan | Agency: | CSA |
If the product parameters do not meet your requirements. We can be customized according to your requirements.
Please contact us !
Production Features:
1.Roll steel frame,Double shield bearing construction.
2.Low noise vibration depending base.
3.High Torque for demanding agricultural /industrial applications
4. Heavy-duty design combind with CSIR or CSCR for high starting torque.
5.Thermal protector is available as demands
6. High Quality Lubricating Oil bearing.
