24VDC 48VDC 85W Centrifugal Blower Fan For Air Purifier Blower Galvanized Housing
DC 24/48VDC 85W centrifugal blower fan for air purifier Galvanized housing
The blower fan is specifically designed for use in air purifiers. It operates on direct current (DC) power, specifically at 24 or 48 volts which is commonly used in electronic devices and systems.The impeller and the housing is made of galvanized steel which helps to protect the housing from corrosion and extends its lifespan.
Quick Review:
| Product Name: | DC 24/48VDC 85W Centrifugal Blower Fan For Air Purifier Galvanized Housing | Rated Voltage/Frequency: | DC24/48VDC |
|---|---|---|---|
| Current(A): | 3.5/1.7A | Input Power(W): | 85 |
| Output Speed(RPM): | 2120 | Hi-Pot TEST: | 1500vac50Hz,1mA,1S |
| Insulation Class: | F | Agency: | CE |
| Air Volume(CFM): | 358 | Application: | Air Purifier |
| Bearing: | Ball Bearing | PST: | 340Pa |
Production Description:
DC MOTOR
Protect method: Polarity Protection;Soft start
Locket-rotor protection
Over current protection
Over voltage protection
Technical features:0-10vdc/pwm speed control
PWM FREQUENCY:1-10KHZ
OPERATION MODE:S1
PROTECTION GRADE:IP55
TEMP S:-25℃+60℃
IMPELLER MATERIAL:Galvanized steel
HOUSING MATERIAL:Galvanized steel

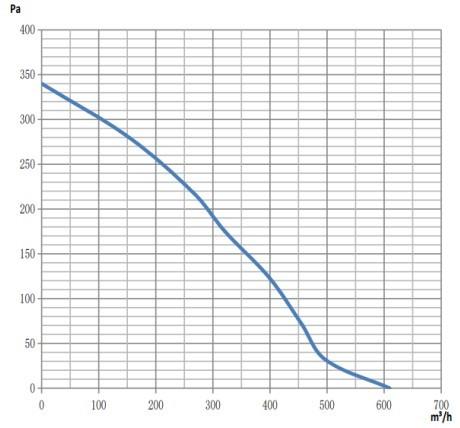

AIR FLOW CURVE
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
