0.5A C Frame Motor 2.38" Die Cast Construction 55W Single Phase Shade Pole
2.38" C Frame Motor die-cast construction 55W 0.5A Single Phase Shade Pole
This type of motor is commonly used in small appliances and equipment. Die-cast construction provides durability and structural integrity to the motor.It can be used in various applications that require a small motor size, low power consumption, and efficient performance.
Quick Review:
| Product Name: | 2.38" C Frame Motor Die-cast Construction 55W 0.5A Single Phase Shade Pole | Motor Type: | MH6029-29131 |
|---|---|---|---|
| Rated Voltage/Frequency: | 230V50 | Current(A): | 0.5A |
| Input Power(W): | 55W | Output Speed(RPM): | 3000 |
| Hi-Pot TEST: | 1800vac50hz,1Ma,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protect Method: | TP |
| Agency: | CCC/CE/ETL | Application: | PUMP;Gas Detection Pump |
Note: Can be customized according to customer requirements, please contanct us.
Production Feature :
1. 2.38’’ C-FRAME MOTOR
2. Heavy-duty steel and die-cast construction
3. Several shaft size options
4. Several mounting options available
5. Several lead configurations available
6. Ball bearing or Sleeve bearing available
Data Parameter sheet:
| Stack Length (L) (mm/inch) | Voltage (V) | Frequency (Hz) | Speed(RPM) | Max Torque(Oz.in) | Max HP Output |
| 21.88(7/8) | 110-120V/220-240V | 50/60 | 3000 | 7.5 | 1/45 |
| 25.40(1) | 3000 | 9.3 | 1/40 | ||
| 28.123(1 1/8) | 3000 | 11.2 | 1/30 | ||
| 34.93(1 3/8) | 3000 | 16 | 1/25 | ||
| 38.10(1 1/2) | 3000 | 18.5 | 1/18 | ||
| 50.80(2) | 3000 | 24.8 | 1/13 |

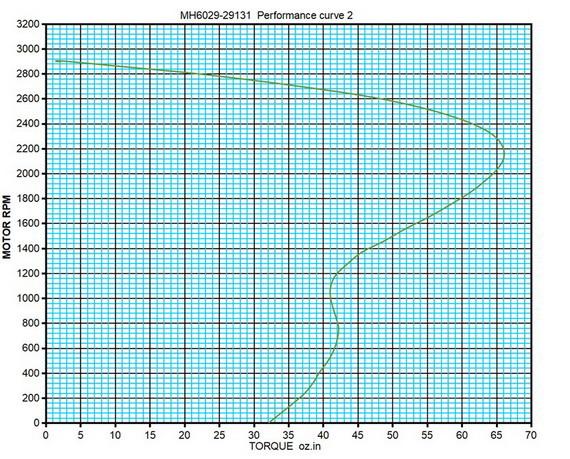

Torque Curve
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
