IP55 2.4A Centrifugal Blower Fan External Rotor Motors For Air Purifier
IP44/IP55 DC24/48VDC External rotor Centrifugal Blower fan for air purifier
The blower fan is AC with IP44 or IP55 , it was specifically designed for use in air purifiers or lab equipment. Air purifiers are devices that remove contaminants, such as dust, pollen, and smoke particles, from the air.
This blower fan operates on DC 24/48V double voltage, features an external rotor design, and provides efficient airflow typically in air filtration equipment for ventilation, control cabinet cooling, laboratory purification box.
Quick Review:
| Product Name: | IP44/IP55 DC24/48VDC External Rotor Centrifugal Blower Fan For Air Purifier | Rated Voltage/Frequency: | DC24/48VDC |
|---|---|---|---|
| Current(A): | 4.8/2.4A | Input Power(W): | 115W |
| Output Speed(RPM): | 2570 | Insulation Class: | F |
| Agency: | CE | Air Volume(m³/H): | 253 |
| PST: | 490pa | Noise: | 72dB(A) |
| IP: | 44/55 | Bearing Type: | BALL BEARING |
| Application: | Air Purifier/LAB EQUIPMENT | High Light: | IP44/IP55, DC24/48VDC ,External Rotor, Centrifugal Blower Fan, Air Purifier |
Can be customized , please contact us to get more information!
Production Description:
1. Protect method: Polarity Protection;Soft start
2. Locket-rotor protection
3. Over current protection
4. Over voltage protection
5. Technical features:0-10vdc/pwm speed control
6. PWM FREQUENCY:1-10KHZ
7. OPERATION MODE:S1
8. PROTECTION GRADE:IP55
9. TEMP S:-25℃+60℃
10. IMPELLER MATERIAL:PA66+25%GF
11. HOUSING MATERIAL:Galvanized steel

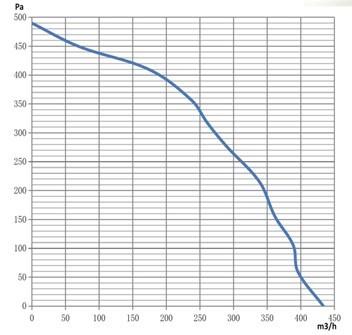

Air volume/Pressure Curve:
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
