China Gulfweed Sargassum Conveyor Belt Dryer Continuous Belt Dryer 170kg/H for sale

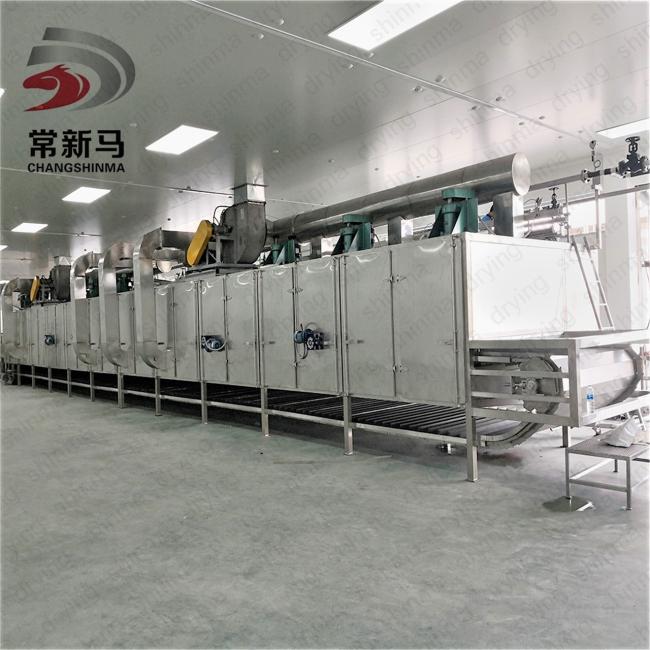

Gulfweed Sargassum Conveyor Belt Dryer Continuous Belt Dryer 170kg/H

Price Negotiable

Price: USD50000-300000/set

MOQ: 1set

Delivery Time: 60days

Brand: shinma

Product Description

sea tangle vegetables gulfweed sargassum seaweed mesh continuous conveyor band belt dryer machine drying equipment

The feeding device (such as star-shape distributor, swing materialdistributor, grinder or granulator) distributes the material on conveyorbelt, conveyor belt will pass through channel that consists of one orseveral drying units. Every drying units equipped air heating andcirculating system, and every drying units has one or severaldehumidifying system. When the conveyor belt passes through, hotair will pass through the material layer that on the belt from up tobottom or from bottom to up so that the material will be drieduniformly. This machine is continuously work equipment, and it iswidely used in chemical, foodstuff, pharmaceutical, buildingmaterials, electron industries It is specially suitable for drying thepieces material. strip material and granule material. To the filter cakeand paste materials, it can be shaped by granulator or extruder anddried by the belt dryer.

Type		DW-1.2-8	DW-1.2-10	DW-1.6-8	DW-1.6-10	DW-2-8	DW-2-10	DW-2-20
Quantity of unit		4	5	4	5	4	5	10
Belt width(m)		1.2		1.6		2
Length of drying section(m)		8	10	8	10	8	10	20
Thickness of raw material(mm)		≤60
Operation temperature(°C)		50-140
Steam pressure(MPa)		0.2-0.8
Steam consume(kg/h)		120-300	150-375	150-375	170-470	180-500	225-600	450-1200
Drying time(h)		0.2-1.2	0.25-1.5	0.2-1.2	0.25-1.5	0.2-1.2	0.25-1.5	0.5-3
Drying strength(kg/h)		60-160	80-220	75-220	95-250	100-260	120-300	240-600
Power equipped(kw)		11.4	13.6	11.4	13.6	14.7	15.8	36.8
Overall dimensions	L(m)	9.56	11.56	9.56	11.56	9.56	11.56	21.56
	W(m)	1.49	1.49	1.9	1.9	2.32	2.32	2.32
	H(m)	2.3	2.3	2.4	2.4	2.5	2.5	2.5
weight(kg)		4500	5600	5300	6400	6200	7500	14000
