Electric Drive Fanuc Robot Arm 12kg Payload Robotic Welding Arm High Precision
Price:
negatiation
MOQ:
1
Delivery Time:
4-12 week
Brand:
FANUC
Product Description
FANUC automatic robot M-10iA/12S M-10iA/7L M-20iA/12L robot arm 6 axis and industrial robot with 3-FINGERS GRIPPER
Product description
| DESCRIPTION | ||
| Product name | FANUC automatic robot M-10iA/12S M-10iA/7L M-20iA/12L robot arm 6 axis and industrial robot with 3-FINGERS GRIPPER | |
| Model | M-10iA/12S M-10iA/7L M-20iA/12L | |
| Controlled axes | 6 | |
| Reach | 1098mm | |
| Installation | Floor/Upside-down ,Angle mount | |

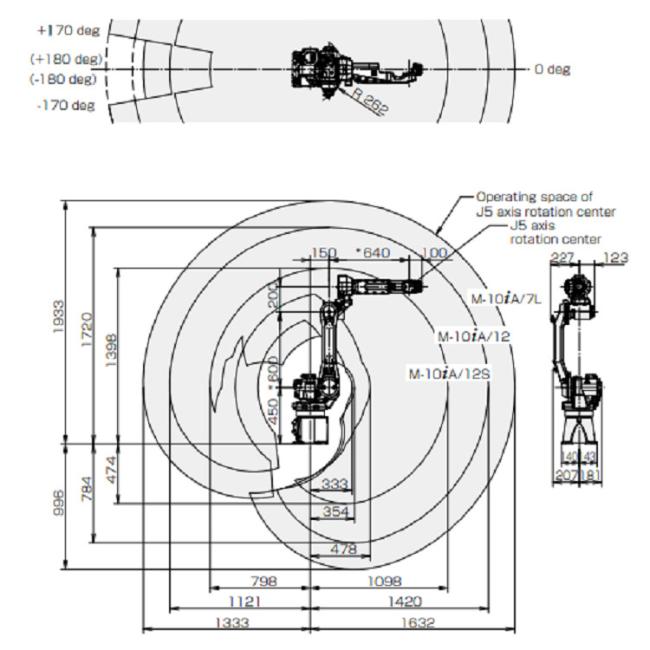

| Motion range | J1 | 340°/360° 5.93rad/6.28rad |
| J2 | 250° 4.36rad | |
| J3 | 340° 5.93rad | |
| J4 | 380° 6.63rad | |
| J5 | 380° 6.63rad | |
| J6 | 720° 12.57rad | |
| Max.load capacity at wrist | 12kg | |
| Allowable load moment at wrist | J4 | 220N.m |
| J5 | 220N.m | |
| J6 | 9.8N.m | |
| Allowable load inertia at wrist | J4 | 0.65kg.m2 |
| J5 | 0.65kg.m2 | |
| J6 | 0.17kg.m2 | |
| Repeatability | ±0.03mm | |
| Mass | 130kg | |

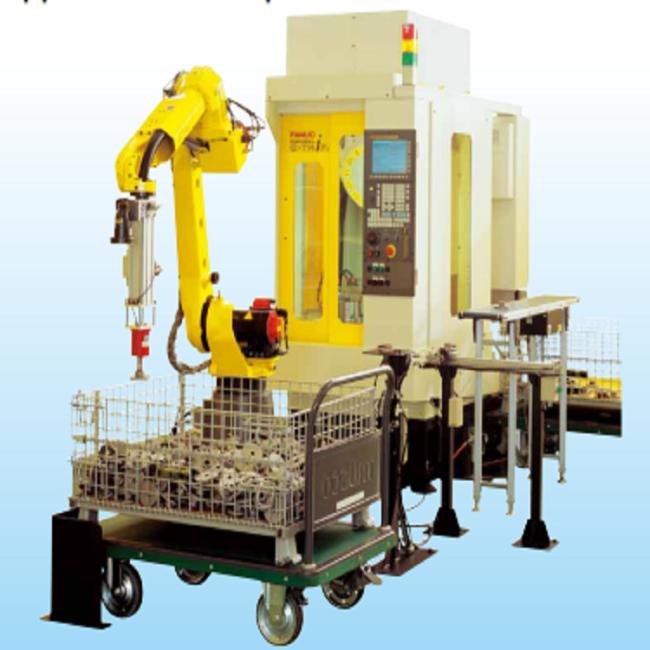

Product image
