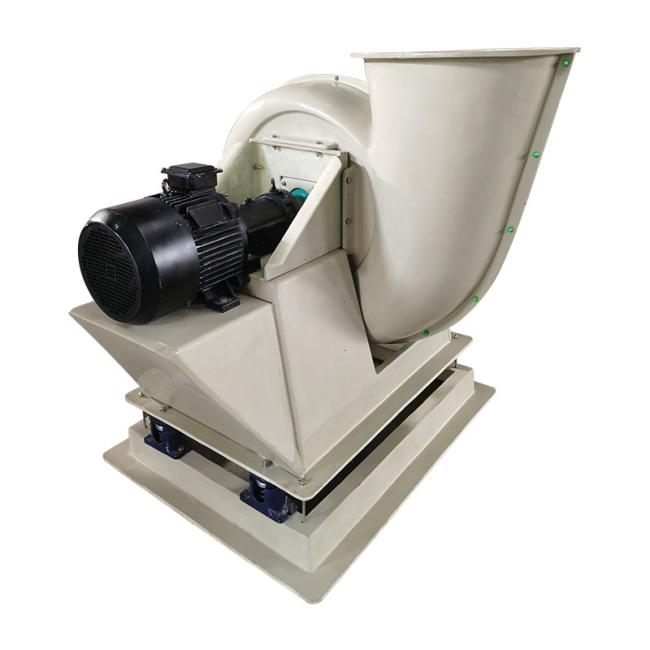

High Pressure Centrifugal Exhaust Fan Centrifugal Exhaust Blower With PM Motor
High Pressure Centrifugal Exhaust Fan with Permanent Magnet Motor
Product Description:
Centrifugal Exhaust Fan is a FRP Permanent Magnet Centrifugal Fan with variable frequency technology. It is equipped with a Permanent Magnet Motor and features air inlet from 450 to 1200 mm and air outlet from 410 to 1140 mm, while the speed varies from 1000 to 2300 r/min and power from 5.5 to 75Kw. The high performance motor and advanced variable frequency technology make the fan more efficient and energy saving. It is easy to install and operate, and provides reliable operation with low noise.
Features:
- Motor: permanent magnet motor replaces asynchronous motor, efficiency increased by 5%-10%
- Transmission: motor and fan impeller using direct connection mode, relative to the belt, belt pulley transmission mode efficiency increased by 3-5%
- Impeller: with Xi 'an Jiaotong University joint development and design of binary and ternary impeller, the efficiency is 5-10% higher than that of ordinary impeller
- FRP bracket, corrosion resistant, acid and alkali resistant
Technical Parameters:
| Technical Parameter | Value |
|---|---|
| Motor | Permanent Magnet Motor |
| Speed | 1000~2300r/min |
| Power | 5.5~75Kw |
| Air inlet | 450~1200mm |
| Wind presssure | 1200~2200Pa |
| Air volume | 7800~90000m³/H |
| Bracket | FRP |
| Air outlet | 410~1140mm |
Applications:
The Xicheng XC080-4 FRP Variable Frequency Permanent Magnet Centrifugal Fan is an ideal choice for ventilation and cooling applications. It is designed with a FRP bracket and air outlet of 410~1140mm, air inlet of 450~1200mm, power of 5.5~75Kw, and air volume of 7800~90000m³/H. This fan can be used in factories, warehouses, and other industrial and commercial environments. It is available in a minimum order quantity of 1PCS with a price of $860-2390/PCS and a delivery time of 7-15 work days. Payment terms include L/C, T/T, and it has a supply ability of 300PCS 20-30work days.
Support and Services:
We provide technical support and service for our Centrifugal Exhaust Fan product. Our team is knowledgeable and experienced in the installation, operation, and maintenance of our exhaust fan.
Our technical support and service team is available 24/7 to answer any questions or concerns you may have. We provide prompt and reliable service so you can be confident that your Centrifugal Exhaust Fan is in good hands.
FAQ:
A1: The Brand Name of the Centrifugal Exhaust Fan is Xicheng.
A2: The Model Number of the Centrifugal Exhaust Fan is XC080-4.
A3: The Place of Origin of the Centrifugal Exhaust Fan is China.
A4: The Minimum Order Quantity of the Centrifugal Exhaust Fan is 1PCS.
A5: The Price Range of the Centrifugal Exhaust Fan is $860-2390/PCS.
