DTSD5558 Three phase 110V digital well designed electric multifunctional electricity meter

Dtsd5558 Three Phase 110v Multifunction Energy Meter Digital Well Designed

Application

Model DTSD5558 three phase four wire electronic multifunction energy meter is a kind of new style three phase four wire multifunction energy meter. The meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21 and class1 three phase reactive energy meter in international standard IEC 62053-23. It can accurately and directly measure50Hz or 60Hz active energy consumption from three phase four wire AC electricity net, This meter has LCD monitors shows the active energy power consumption, and there are far infrared and RS485 communication module in it. It has following features: Good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.

Features

1. Measurementof Import/Exportactive energy, current energy balance, Instant

voltage/current/power

2. PLC, Rs485, Infrared interface

3. Eventrecord: Coveropen detection, Reverse current, Fraud

Multi Tariff Energy Meter

1. History:12 monthsReadable by RS485, and 3 month display on screen

2.Real time clockand date,able to resetting via RS485 wire or Infrared by HHU

3. Time-of-use, 4 Tariff, 8 Time Zone, 12 Segments

4. Battery: It is equipped with build-in lithiumbattery, which could be use forat least 10years.

Multi Function have all function of Multi tariff meter,Extra reactive energy consumption and power

Technical parameters

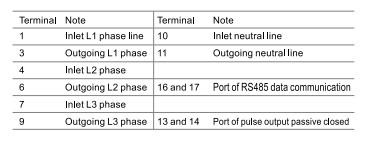

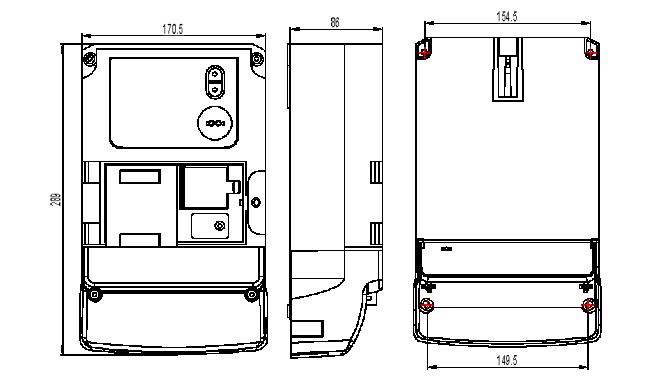

Dimension&wiring Diagram
