Single Phase 1p Din Rail KWH Meter 3 Phase Easy Installation With Lcd Display
Price:
$5.30 - $6.00/Sets
MOQ:
1 PC
Delivery Time:
Negotiable
Brand:
GOMELONG
Product Description

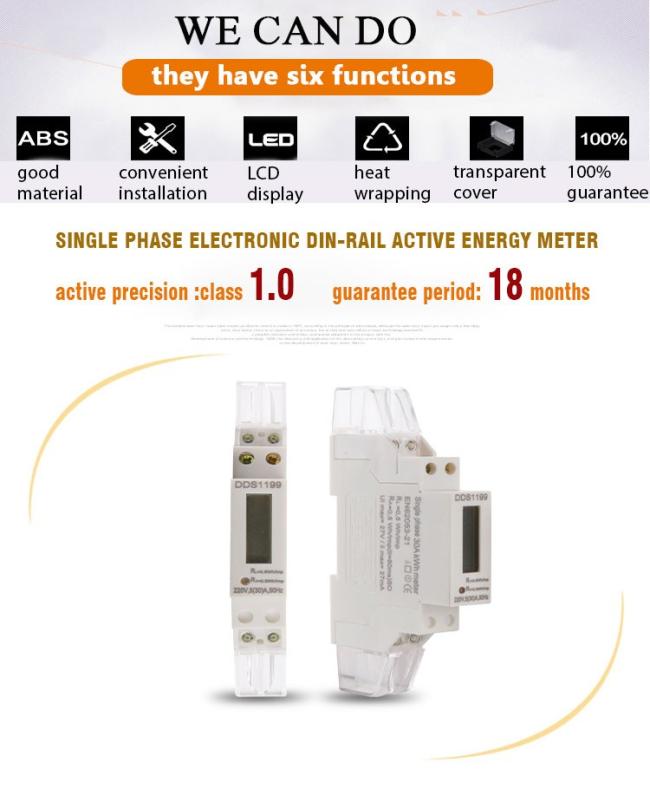

Single Phase 1p Din Rail KWH Meter With Lcd Display
Product Description
| Single phase 4P Din rail kwh energy meter | |||
| specification | DDS5558R | DDS5558L | |
| Accuracy | active | class 1.0 | |
| reactive | / | ||
| voltage | rated | 110V/120V220V/230V/240V | |
| range | 0.9Un-1.1Un | ||
| limit | 0.8Un-1.2Un | ||
| frequency | 50/60Hz | ||
| current | range | 5(20)A,5(25)A,5(30)A,5(32)A | |
| starting current | 0.4%Ib | ||
| constant | active | 1600imp/KWH | |
| reactive | / | ||
| display | Type | register | lcd |
| Digital | 6+1 | ||
| power comsumption | voltage circuit | <=0.8w,10VA | |
| current circuit | <=4VA | ||
| communoication | Interface | Optical/Infrared/RS485(optional) | |
| Protocol | MODBUS,DLT/645,IEC1107 | ||
| temperature | working temperature | ‘-45℃~+55℃ | |
| storage temperature | ‘-40℃~+70℃ | ||
| Humidity | <=90% | ||
| protection | IP54 | ||
Product Features
- Bi -directional tatal active energy measurement
- 35mm standard DIN rail installation, complying with standard DIN En50022
- Single pole width (Modules 17.5mm),complying with standard DIN 43880
- small modular size ,DIN rail mounted,Easy installation
