OEM / ODM Wall EV Chargers Type 2 Wallbox Home EV Charging Station

Price Negotiable
Price: To be negotiated
MOQ: 200
Delivery Time: 30-40 days
Brand: HONGJU
Product Description

OEM / ODM Wall EV Chargers Type 2 Wallbox Home EV Charging Station



Model & Spec.
Model Number
Standard
Rated Voltage
Rated Power
Rated Current
EV-WE-05-7
IEC 62196 TYPE 2
AC 250V
7KW
32A/1Phase
EV-WE-05-11
IEC 62196 TYPE 2
AC 480V
11KW
16A/3Phase
EV-WE-05-22
IEC 62196 TYPE 2
AC 480V
22KW
32A/3Phase
Certificates & QC
CE, UKCA, ROHS,ISO
Protection rank
IP55 Cable; IP54 Station
LCD display
without screen & with screen(opt)
RCD
type B (30mA AC + 6mA DC)
Power cord
open ready to wire into electricity
Charging cable
5M Type 2 (TPU Jacket) or customization
LED indicator
R/G/B
Start mode
RFID card swipe / APP / Plug and Play(opt)
Station size
265x170x80 (mm)
Warranty
2 years (both cable and station)
lead time
30-35 days after deposit payment
Payment Terms
T/T(30% advanced payment ,the rest 70% balance should be paid before shippment)

Electrical Protection
Over current protection, Residual current protection, Ground protection, Surge protection
Over/Under voltage protection, Over/Under frequency protection, Over temp protection
Materials Applied
Shell: by thermoplastic PC940. Anti-corrosion and abrasion protection. UV coating
Cable: 5.0M in black with TPU jacket. With CE issued by TUV and TUV mark.
Customizing Logo
Logo put on shell by laser on station box or cable head
Package
Each in inner carton box with blister inner tray, then 2 inner cartons into 1 master carton

Features
Product conforms to Low Voltage Directive 2014/35/EU, IEC61851-1:2019
IP55, Weather proof; Leakage current protection; Impact resistance
Charging status and working error simply displayed by LED indicators and LCD screen

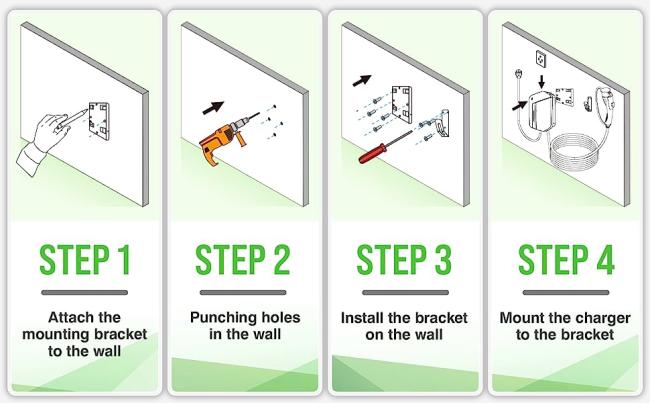

Super easy to install

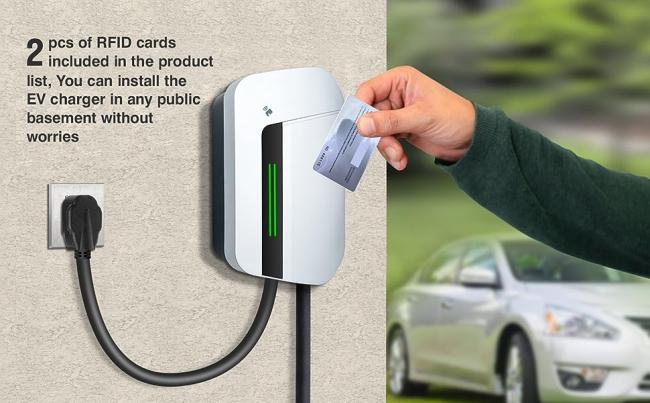

Make your charger private

  • When installing a charging pile in a public area, you have to consider the privacy of your charging pile, then owning an RFID card would be a perfect solution
  • 2 pieces of RFID card included

How to make Order


Please send us an email to specify the item, quantity, color or other specification to place an order.

1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.

2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.



FAQ
1. What's the rated of EV Charging Cable you have?
Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A
2. Can I print my own logo?
Yes MOQ 100pcs. There is no extra fee.
3. Can I customzie different color for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.
6.Can I visit your company before placing the Order.
Yes. You can visit any time.
