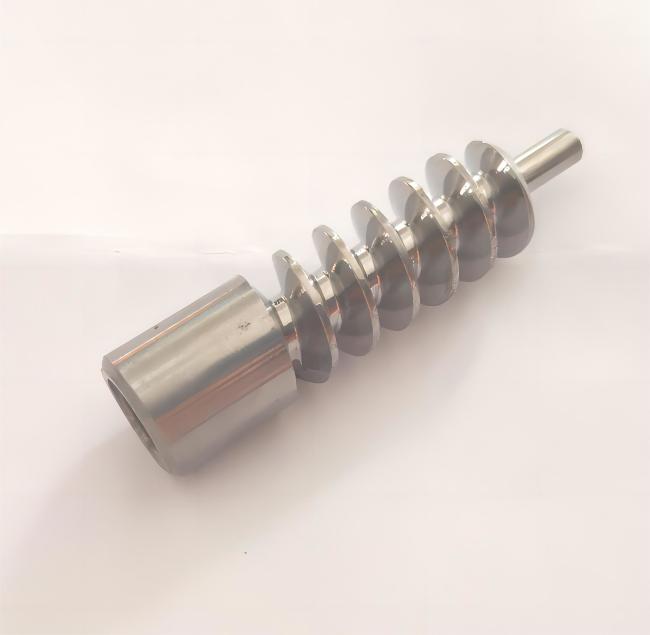

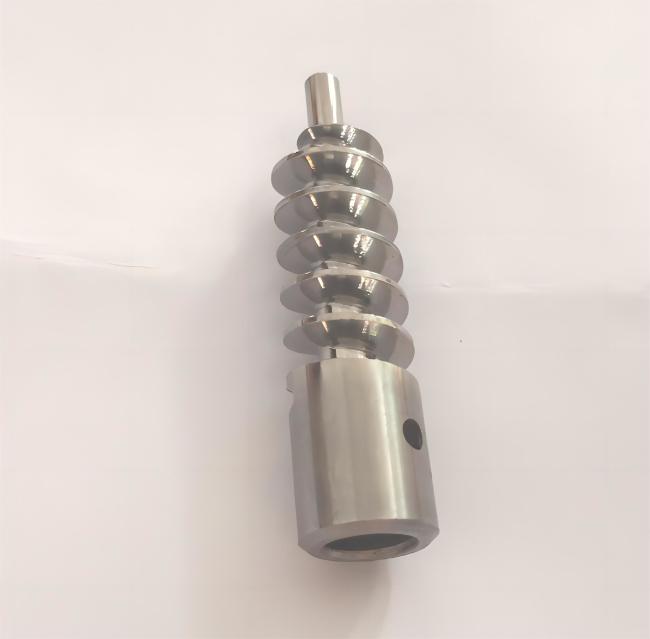

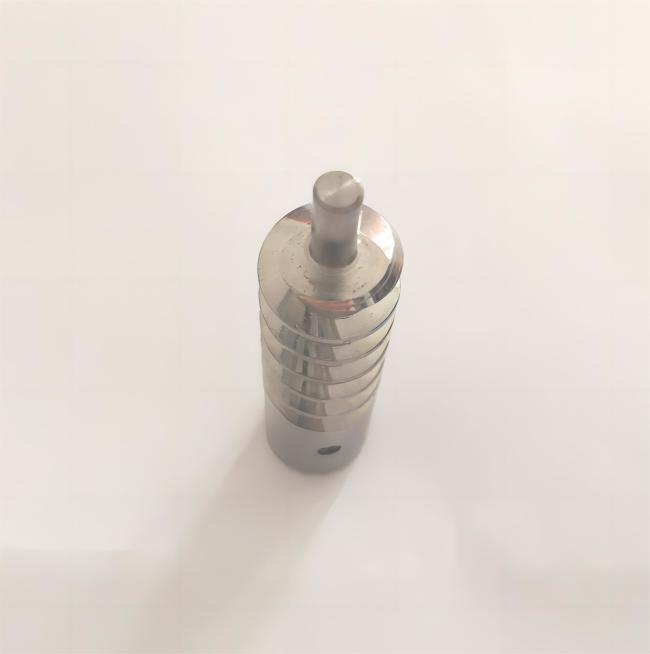

1. Item name: Customized Worm Shaft for Worm Gearbox with Lubrication Device for Smooth Operation

2. Available material: steel, stainless steel, brass, etc

3.The worm gear mechanism is mainly used in some intermittent work occasions, and in occasions that require a large transmission ratio but low transmission power. Its main features are as follows:

1)  In terms of structure, it is more compact than the gear mechanism, so a larger transmission ratio can be obtained. Also, a worm gear mechanism can have a greater load carrying capacity than a gear mechanism.

2)  Its transmission is similar to that of the spiral bevel gear transmission, usually a multi-teeth meshing transmission, so it has the characteristics of stable transmission and low noise.

3) When certain conditions are met, the worm gear mechanism can realize reverse self-locking. Especially in hoisting machinery, this function can play a very good protective role.

4.)In the worm gear mechanism, the axial force of the worm is relatively large, but through the lubrication device, etc., it can be preliminarily prevented, so as to avoid various problems caused by it, which will affect the normal operation of the mechanism

4. We can make according to your requirement or technical drawings.

    Welcome your oem inquiry or orders.
