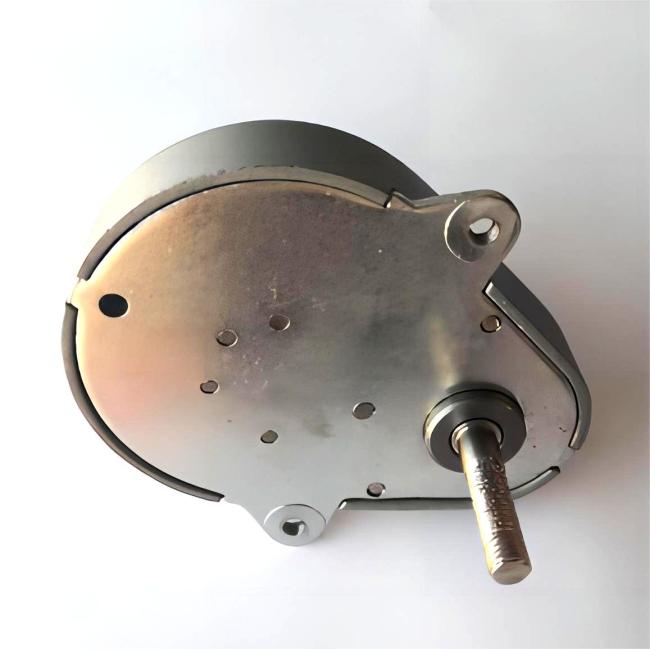

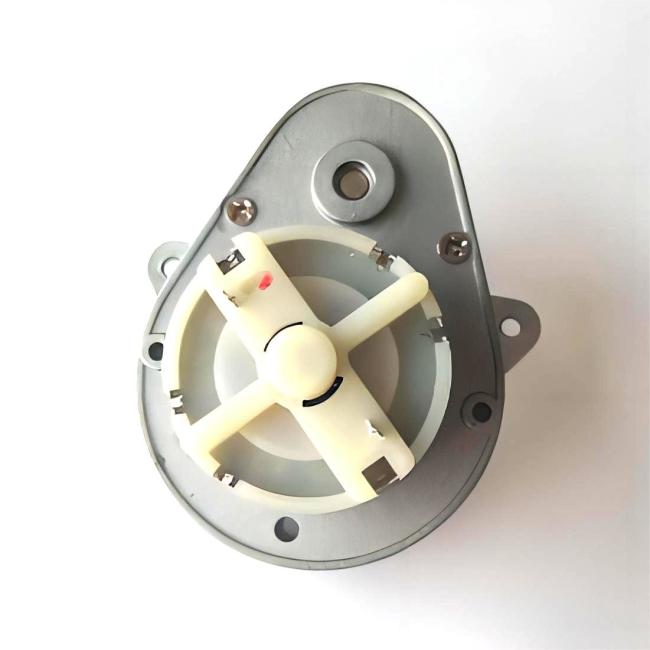

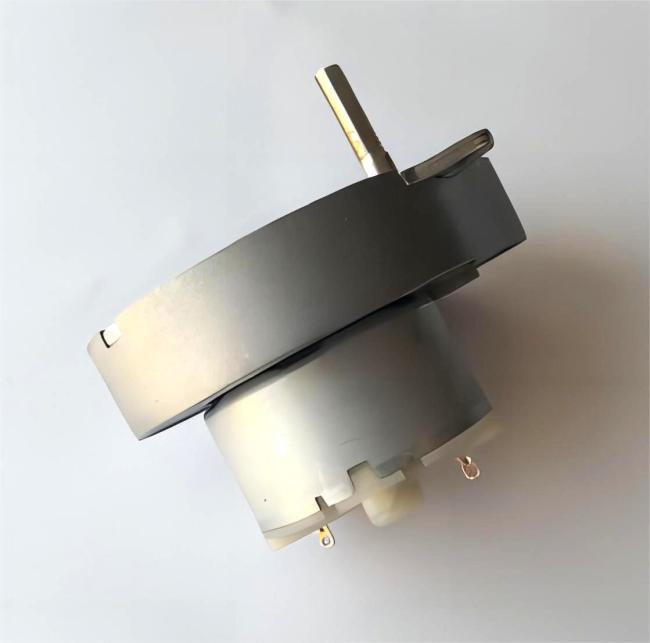

Metal Material 24 Volt DC Gear Motor 10kg.Cm Torque Rohs Certified
1. Item name: GM48-500 or 520 DC gear motor, middle size dc gear motor with low speed and big torque and competitive price
1) Middle size dc gear motor with low speed and big torque
2) 48mm gear motor provide 10kg.cm~ torque and more realiable.
3) Suitable to low noise and big torque application
4) Available reduction ratio: 30, 75, 112, 160, 216, 387, 480 and 538
2. GM48-500TB gear motor dimensions
Voltage, rated torque, speed, Current, Power and shaft dimensions can be customized as per customers' requirement.
3. Technical parameters
| Model No. |
Rated Voltage (VDC) |
No Load Speed (rpm) |
No Load Current (A) |
Loaded Speed (rpm) |
Loaded Torque (N.m) |
Loaded Torque (kg.cm) |
Loaded Current (A) |
Output Power at load (w) |
Stall torque (N.m)
|
Stall torque (kg.cm) |
Stall current (A) |
Gearbox Length (L) (mm) |
|
| GM48-520-30 | 12 | 220 | 0.162 | 160 | 0.10 | 1 | 0.4 | 1.64 | 0.28 | 2.9 | 1.55 | 12.4 | |
| GM48-520-75 | 12 | 89 | 0.16 | 69 | 0.25 | 2.5 | 0.4 | 1.77 | 0.86 | 8.8 | 1,55 | 12.4 | |
| GM48-520-112 | 12 | 20.2 | 0.026 | 15.5 | 0.18 | 1.80 | 0.07 | 0.29 | 0.61 | 6.2 | 0.2 | 12.4 | |
| GM48-520-160 | 24 | 53.6 | 0.10 | 45 | 0.44 | 4.50 | 0.31 | 2.08 | 2.17 | 22,10 | 1.4 | 12.4 | |
| GM48-520-216 | 12 | 40.5 | 0.14 | 36.5 | 0.59 | 6.0 | 0.50 | 2.25 | 4.90 | 50 | 4.20 | 12.4 | |
| GM48-520-387 | 12 | 20 | 0.17 | 17.5 | 0.98 | 10.0 | 0.1 | 1.79 | 5.39 | 55 | 2.7 | 12.4 | |
| GM48-520-480 | 24 | 12.4 | 0.09 | 11.4 | 0.49 | 5.0 | 0.13 | 0.58 | 4.51 | 46 | 0.76 | 12.4 | |
| GM48-520-538 | 5 | 6.5 | 0.16 | 5.2 | 0.98 | 10.0 | 0.43 | 0.53 | 4.80 | 49 | 1.70 | 12.4 |
4. Application Scenario
1) Household appliances: Electric curtains, integrated stoves, coffee machines, smart toilets, robot vacuums, dishwashers, range hoods, smart door locks
2) Personal care: hair curlers, massage instruments, electric hair clippers
3) Office equipments: shredders, printers, projectors, banknote counting machines, coin counting machines
4) Medical equipment: massage chairs, electric carts, medical pumps, electric beds, electric wheelchairs
5) Industrial equipment: water and electrical valves, air switches, pumps, automatic door switches, automatic lubrication equipment
6) Commercial equipment: vending machines, parking locks, ATM machines, smart lamps
7) Robots: manipulators, drones, service robots
5. Our Service
We can offer the full range of service from product design,mold designing, making, plastic part molding to printing, assembly, package, and shipping arrangement.
*We have over 20 years production experience.
*Free Design Service:Sent us a physical sample our team provided free part design work.We also provided free mold design work after contract signed by both sides.
*Free Mold:Quantity reaches some amount, mold fee can be refund.
*Fast Mold:For simple and urgent mold,we can speed up to 15 days to finish mold and send out samples.
Please kindly tell us your specific requirement and then we will offer you accordingly soon.
