12V DC 25mm Planetary Motor Gearbox With Transmission Ratio 23.76
1. Item name: Metal Gear Motor 25mm planetary gearbox with transmission ratio 23.76 for electric tool
1) Small size dc gear motor with low speed and big torque
2) this gear motor provide 15 NM torque and more realiable.
3) Suitable to low noise and big torque application
4) Gear ratio: 23.76:1

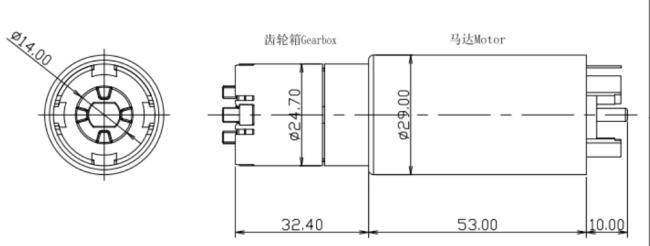

2. HYX-P25 Planet gear box dimensions without mounting ears
Voltage, rated torque, speed, Current, Power and shaft dimensions can be customized as per customers' requirement.
3. Technical parameters
| Stage | Length (mm) | Compatible motor | Efficiency(%) | No load backblash | Weight | ||
| full steel gears |
|
370 | (%) | (g) | |||
| 1 | 32.40 | 90 | less than 1° | ||||
| 2 | 81 | less than 1.8° | |||||
| 3 | 73 | less than 2° | |||||
| 4 | 65 | less than 2° | |||||
| 5 | |||||||
|
Rated Voltage |
Operating Condition Temperature Ragen |
No load Speed |
No load Current |
Loaded Torque |
Loaded Speed |
Loaded Current |
Stall Current |
Stall Torque |
Direction | Noise | Axial gap |
| 12VDC | -30°~+80°C | 210+/-3 rpm | <=0.6A | 550mNM | 180+/-10%rpm | 1A | 13A | 5NM | CW/CCW | <=50DB | 0.2mm max |
4. Application Scenario
1) Household appliances: Electric curtains, integrated stoves, coffee machines, smart toilets, robot vacuums, dishwashers, range hoods, smart door locks
2) Personal care: hair curlers, massage instruments, electric hair clippers
3) Office equipments: shredders, printers, projectors, banknote counting machines, coin counting machines
4) Medical equipment: massage chairs, electric carts, medical pumps, electric beds, electric wheelchairs
5) Industrial equipment: water and electrical valves, air switches, pumps, automatic door switches, automatic lubrication equipment
6) Commercial equipment: vending machines, parking locks, ATM machines, smart lamps
7) Robots: manipulators, drones, service robots
Please kindly tell us your specific requirement and then we will offer you accordingly soon.
5. FAQ
FAQ
Q1: Are you a trading company or a manufacturer?
A:We are a factory which has been specialized in cnc machining, PM/MIM, Plastic injection molding, precision casting etc.
Q2:What's your terms of payment?
A:50%T/T as the upfront deposit, 50% before delivery,We will show you the photos and package before you pay the balance.
Q3:What about the lead time?
A:Sample need 20-25 days, mass production 25~30 days generally.
Q4.How to get an accurate quotation?
2D including tolerance and 3D Drawings including tolereance requirement or photos or samples of products.
Detailed sizes of products.
Material of products
Surface treatment of products.
Ordinary purchasing quantity.
6. Contact US
Shenzhen huaYueXin Precise ware co.Ltd
QQ: 460604107
Tel: 86-0755-82496832 Fax: 0755-25500780
Planetary gearbox: first stage: i=(number of teeth of internal gear/number of teeth of sun gear)+1
Multilevel: i=i1 x i2xi3...
