Mounting Off Grid Solar Power System Home Energy Storage System 5KW 10KW
Price:
$0.45/watts 5000-9999 watts
MOQ:
5000 watts
Delivery Time:
Negotiable
Brand:
zzlysun
Product Description
Home Energy Storage System 5KW 10KW solar system off grid solar power system
❖ General mode:
The off grid power solar system is that the electric generate from the PV array will provide the load first,the excess electric will charge the battery,when the PV electric is not sufficient ,the battery will provide the load.
|
Product List
|
5KW Off Grid Solar
|
|
10KW Off Grid Solar
|
|
|
PV module
|
9pcs*550W
|
|
18pcs*550W
|
|
|
PV combiner box
|
1 Input 2 output
|
|
1 Input 2 output
|
|
|
Inverter
|
Growatt off grid inverter 5KW
|
|
2PCS*5KW Parallel
|
|
|
Monitor
|
Wifi Module
|
|
Wifi Module
|
|
|
Battery
|
Lithium Battery /Lead Aid gel battery
|
|
Lithium Battery /Lead Aid gel battery
|
|
|
Battery Voltage
|
48VDC
|
|
48VDC
|
|
|
Mounting System
|
Roof mounting/Ground mounting (Design by your requirement)
|
|
Roof mounting/Ground mounting (Design by your requirement)
|
|
|
Accessories
|
MC4 Connector,PV cable,Installations
|
|
MC4 Connector,PV cable,Installations
|
|
* The quantity of Cell:144PCS
* Solar cells size:182*91mm
* Dimensions:2279x1134x35mm(LxWx H)
* Front Glass:3.2mm high transmisson tempered glass
* Encapsulation:EVA
* Backsheet:Composite film
* Frame:Anodized aluminum profile
*Junction Box:Rated current:25A,IP68
* Rate Power: 5000W
* Battery Voltage:48VDC
* Battery Type:Lithium/Lead-acid
* Parallel Capability:Yes, max 6 units
* AC Voltage Regulation:230VAC ± 5% @ 50/60Hz
* Surge Power:10000VA
* Efficiency (Peak):93%
* Waveform:Pure sine wave
* Transfer Time:10ms typical, 20ms Max

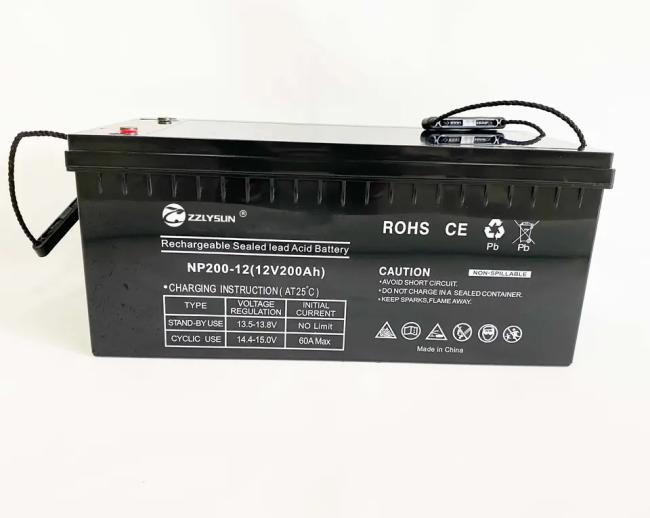

* Voltage:12V
* Capacity:100AH/ 200AH
* Application:Solar energy system
* Cycle Life:500-1200cycles
* DOD:50%
* Weight:29kg/46kg
* Size:330*171*217/225mm
/522*240*219/225mm
* PV Combiner Box
(Anti-reverse/SPD/Fuse/Busbar
/Breaker 63A1000V)
* MC4 Connector
Rated current: 30A Rated voltage: 1000VDC
* PV DC Cable
4mm2 or 6mm2
* Installation tolls
Wire Crimper, Stripper, MC4 Connector Wrench
* Good Appearance
* Easy and flexible installation.
* Diversified design
* Light dead-weight
* Save installation materials
* Easy and flexible installation.
* Diversified design
* Light dead-weight
* Save installation materials
❖ Application
The off grid solar system is suitable for the place which are no grid of remote place or the local grid is unstable.
❖ Solar System
The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
❖ Quality gurantee
The solar panel power system should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
❖ Plywood Package
The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!
❖ Certificate
1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
FAQ
1.What kind of product can you provide ?
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.
2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.
3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.
4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem, will let us freely.
5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your deposit of payment.
