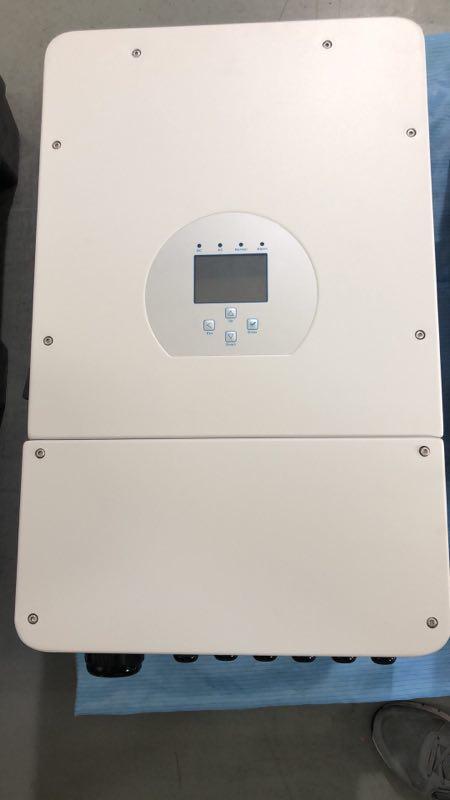

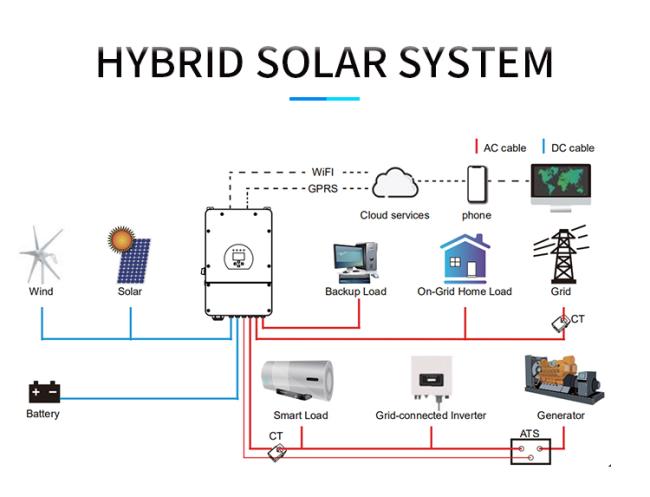

Deye Hybrid inverter,electrical equipment,grid.It aims to store the surplus energy in the battery and supply the
load when needed.It is also helpful in introducing your electricity bills and improve your energy independence.When the PV is sufficient, the load is given priority to use, and the excess power is charged to the battery, and the excess power will be fed to the grid when the battery is full; when the PV is insufficient, the battery is discharged, and they will together meet the load; The electricity in the PV and the battery is not enough for the load, and it is supplemented by the large power grid.
Farm Hybrid Solar Energy System Power Generator Ground Mount Racking 20KW
Price:
$0.75/watts 30000-59999 watts
MOQ:
30000 watts
Delivery Time:
Negotiable
Brand:
zzlysun
Product Description
Solar panel kit power generator ground mount racking farm hybrid solar energy system 20kw for your home use
❖ General mode:
|
Product List
|
20KW Hybrid Grid Solar
|
|
25KW Hybrid Grid Solar
|
30 Hybrid Grid Solar
|
|||
|
PV module
|
36pcs*550W
|
|
45pcs*550W
|
55pcs*550W
|
|||
|
PV combiner box
|
3 Input 3 output
|
|
3 Input 3 output
|
5 Input 5 output
|
|||
|
Inverter
|
Deye Hybrid Inverter 20kw
|
|
Deye Hybrid Inverter 25kw
|
Deye Hybrid Inverter 30kw
|
|||
|
Monitor
|
Wifi Module
|
|
Wifi Module
|
Wifi Module
|
|||
|
Battery
|
High Voltage Lithium Battery
|
|
Lithium Battery
|
|
|||
|
Battery Voltage
|
192V200AH(40kwh)
|
|
480V100AH(50kwh)
|
360V200AH(72kwh)
|
|||
|

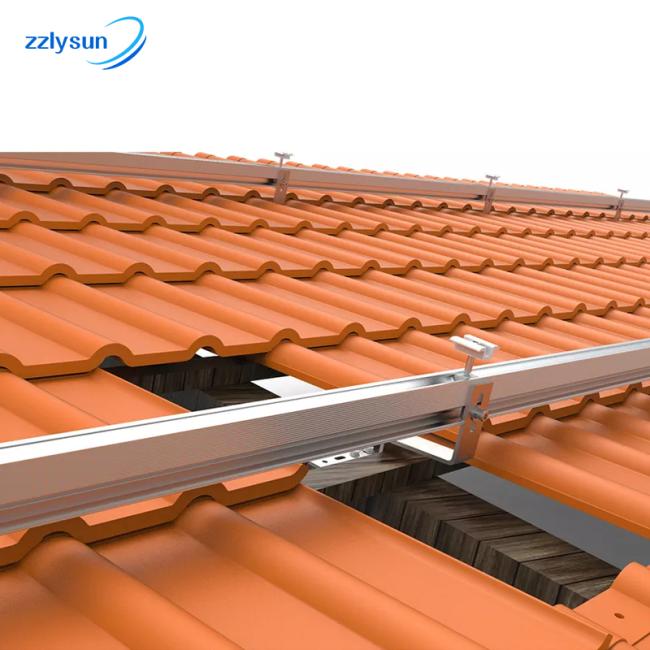

Mounting System
|
Roof mounting/Ground mounting (Design by your requirement)
|
|
|
|
|||
|
Accessories
|
MC4 Connector,PV cable,Installations
|
|
|
|
|||
|
Product List
|
35KW Hybrid Grid Solar
|
40KW Hybrid Grid Solar
|
50KW Hyrbrid Grid Solar
|
||
|
PV module
|
64pcs*550W
|
72pcs*550W
|
90pcs*550W
|
||
|
PV combiner box
|
4 Input 4 output
|
6 Input 6 output
|
6 Input 6 output
|
||
|
Inverter
|
Deye Hybrid Inverter 35kw
|
Deye Hybrid Inverter 40kw
|
Deye Hybrid Inverter 50kw
|
||
|
Monitor
|
Wifi Module
|
Wifi Module
|
Wifi Module
|
||
|
Battery
|
High Voltage Lithium Battery
|
|
|
||
|
Battery Voltage
|
360V200AH(72kwh)
|
384V200AH(80kwh)
|
480V200AH(100kwh)
|
||
|
Mounting System
|
Roof mounting/Ground mounting (Design by your requirement)
|
|
|
||
|
Accessories
|
MC4 Connector,PV cable,Installations
|
|
|
||

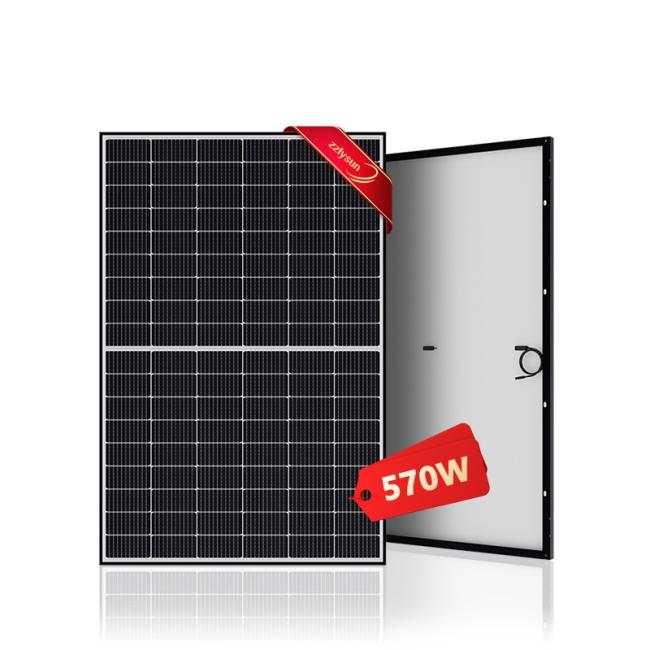

2.The quantity of Cell:144PCS
3.Solar cells size:182*91mm
4.Dimensions:2279x1134x35mm(LxWx H)
5.Open Circuit Voltage-Voc[V]:49.90V
6.Short Circuit Current-lsc[A]:14.00A
7.Max Power Voltage-Vmp[V]:41.96V
8.Max Power Current-lmp[A]:13.11A

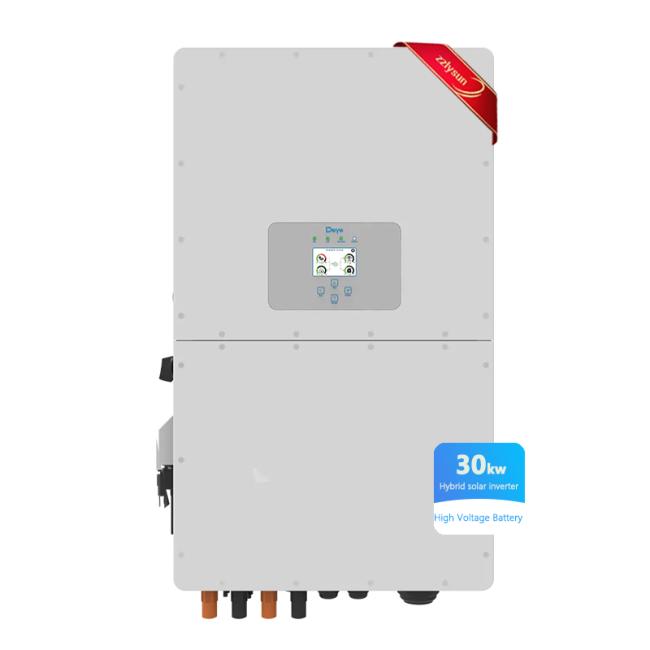

1. Rate Power: 20KW/25KW/30KW/35KW/40KW/50KW
2.Battery Voltage:160~800VDC
3.Battery Type:Lithium/Lead-acid
4. Max DC Input Power:39kw/45.5kw/52kw/65kw
5.AC Voltage Regulation:Three phase 50/60Hz
6. MPPT range:150~850vdc
7.Efficiency (Peak):97.60%
8.Number of MPPT tracking:2+2+2/2+2+2+2
9. Peak Power(off grid):1.5 times of rated power, 10 S

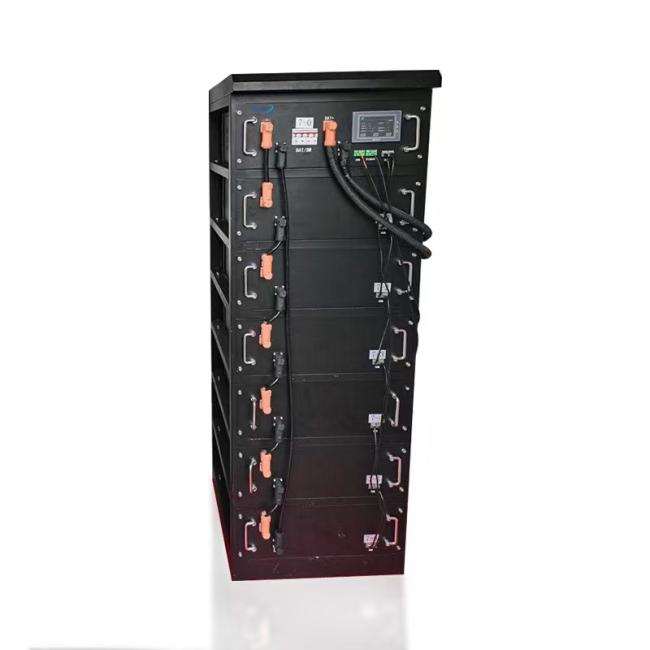

* Adapt super A+ battery chips
* Design life is ≥10 years
* Battery module is scalable for any larger storage system.
* Battery modular built in high quality BMS. Protect battery cells all the way.
*Lithium iron phosphate battery cell, stay safe with battery storage at home.
* Battery module is scalable for any larger storage system.
* Battery modular built in high quality BMS. Protect battery cells all the way.
*Lithium iron phosphate battery cell, stay safe with battery storage at home.
1.PV Combiner Box
(Anti-reverse/SPD/Fuse/Busbar
/Breaker 63A1000V)
2.MC4 Connector
Rated current: 30A Rated voltage: 1000VDC
3.PV DC Cable
4mm2 or 6mm2
4.Installation tolls
Wire Crimper, Stripper, MC4 Connector Wrench
1.Good Appearance
2.Easy and flexible installation.
3.Diversified design
4.Light dead-weight
5.Save installation materials
2.Easy and flexible installation.
3.Diversified design
4.Light dead-weight
5.Save installation materials
❖ PROJECT
❖ Company
The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
❖ Quality gurantee
The solar panel power system should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
❖ Certificate
1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
FAQ
1.What kind of product can you provide ?
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.
2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.
3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.
4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem, will let us freely.
5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your deposit of payment.
