China 5KW 6KW Home Solar Panel System With Battery Hybrid Solar Inverter for sale

5KW 6KW Home Solar Panel System With Battery Hybrid Solar Inverter

Name: 5KW 6KW Home Solar Panel System With Battery Hybrid Solar Inverter
Brand: Zhengzhou LingYang New Energy Technology Co.,Ltd.

Price Negotiable

Price: $0.65/watts 5000-14999 watts

MOQ: 5000 watts

Delivery Time: Negotiable

Brand: zzlysun

Product Description

Solar Panel System for home with battery included 5KW 6KW with hybrid solar inverter 5KW 6KW

❖ General mode

When the PV is sufficient, the load is given priority to use, and the excess power is charged to the battery, and the excess power will be fed to the grid when the battery is full; when the PV is insufficient, the battery is discharged, and they will together meet the load; The electricity in the PV and the battery is not enough for the load, and it is supplemented by the large power grid.

Product List	5kw hybrid solar system	6kw hybrid solar system
PV module	455W Solar Panel*11pcs	455W Solar Panel*13pcs
PV Combiner Box	1 input 1 output	1 input 1 output
Hybrid Solar Inverter	Goodwe hybrid inverter 5KW	Goodwe hybrid inverter 6KW
Powerwall Lithium Battery	48v200AH(9.6kwh)	48v200AH(9.6kwh)
PV Cable	4mm2*200m	4mm2*200m
MC4 Connector	10pcs	10pcs
Mounting System	Roof mounting/Ground mounting	Roof mounting/Ground mounting
Installation tools	1pc	1pc

❖ Solar Panel

* Power:540~560W
* The quantity of Cell:144PCS
* Solar cells size:182*91mm
* Dimensions:2279x1134x35mm(LxWx H)
* Front Glass:3.2mm high transmisson tempered glass
* Encapsulation:EVA
* Backsheet:Composite film
* Frame:Anodized aluminum profile
*Junction Box:Rated current:25A,IP68

❖ Hybrid Grid Solar Inverter

* Rate Power: 5KW/6KW
* MPP voltage range:200V-850V
* AC Voltage Regulation:380V/400v

* AC grid frequency:50Hz/60Hz
* Max PV Power:6.5KW/8.45KW
* MPPT Efficiency :98.2%
* AC grid connection type:3W+N+PE
* Nominal voltage:620V
* No. of MPP trackers:2pcs
* Max. input current per MPP tracker:12.5A

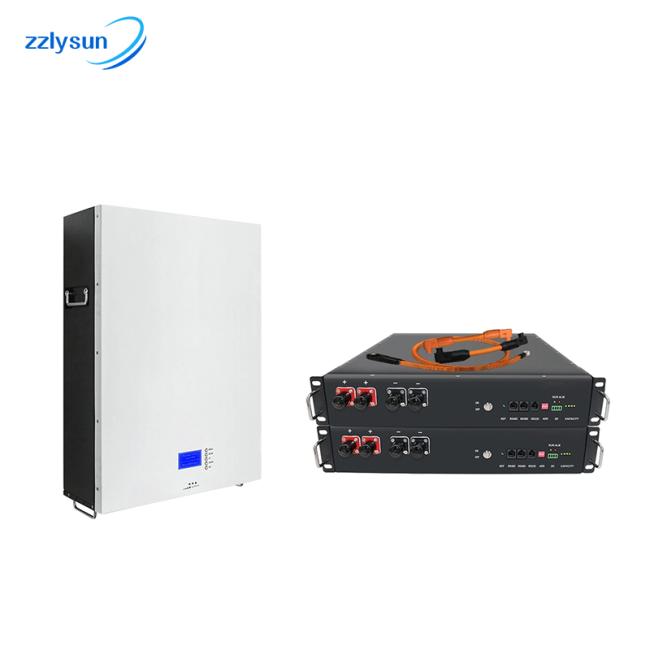

❖ Lithium Battery

* Nominal Voltage:51.2V
* Capacity:200Ah
* Energy:10240Wh
* Cycle Life:
≥5000 cycles @ 80% DOD, 25℃, 0.5C
≥4000 cycles @ 80% DOD, 40℃, 0.5C
* Design Life:≥10 years
* Charge Cut-off Voltage:56.0V±0.5V
* Dimensions:680 x485 x180(220)mm
* Weight:Approx:98kg

❖ Accessories

* PV Combiner Box
(Anti-reverse/SPD/Fuse/Busbar/Breaker 63A1000V)

* MC4 Connector
Rated current: 30A Rated voltage: 1000VDC

❖ Accessories

* Installation tolls
Wire Crimper, Stripper, MC4 Connector Wrench

* PV DC Cable
4mm2 or 6mm2

❖ Mounting Bracket

1. Good Appearance
2.Easy and flexible installation. 3.Diversified design
4.Light dead-weight
5.Save installation materials

❖ Advantage

The hybrid soar system are suitable for the country,which are the payment bill is expensive .The charging and discharging time of the battery is set.When the local grid price is in the peak stage ,the battery is discharged to the load,when the local grid price is in the trough stage,the battery will be charged by the power grid.

❖ Company

The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!

❖ Quality gurantee

The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.

❖ Certificate

1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.

2.The solar inverter certificate is depend on the
different brand,the accurate certificate will be provided by us if you can contact with us directy.

FAQ

1.What kind of product can you provide ?
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,
will let us freely.

5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your payment.
