Small Solar Power Generator System Solar Panel Portable Power Station
Price:
$0.25/watts 10000-29999 watts
MOQ:
10000 watts
Delivery Time:
Negotiable
Brand:
zzlysun
Product Description
Complete hybrid low price home small solar panel portable power station generator energy storage solar system
❖ General mode:

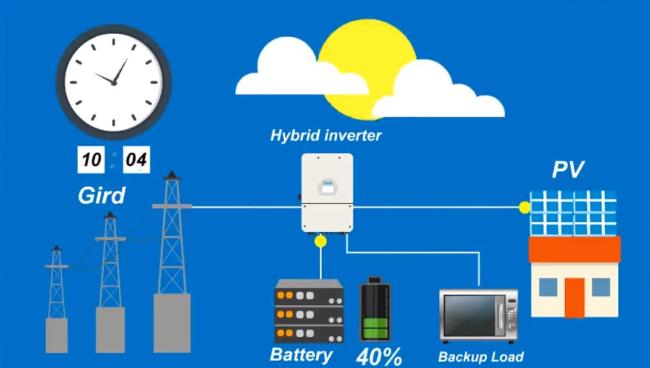

When the PV is sufficient, the load is given priority to use, and the excess power is charged to the battery, and the excess power will be fed to the grid when the battery is full; when the PV is insufficient, the battery is discharged, and they will together meet the load; The electricity in the PV and the battery is not enough for the load, and it is supplemented by the large power grid.
|
Product List
|
8kw hybrid solar system
|
10kw hybrid solar system
|
|
12kw hybrid solar system
|
|||
|

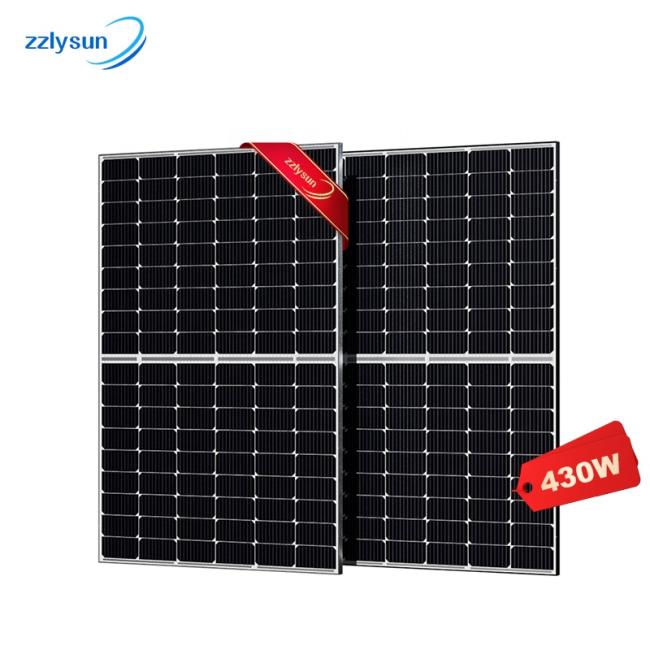

PV module
|
450w*18pcs
|
450w*22pcs
|
|
450w*26pcs
|
|||
|
PV combiner box
|
2 Input 2 output
|
2 Input 2 output
|
|
2 Input 2 output
|
|||
|

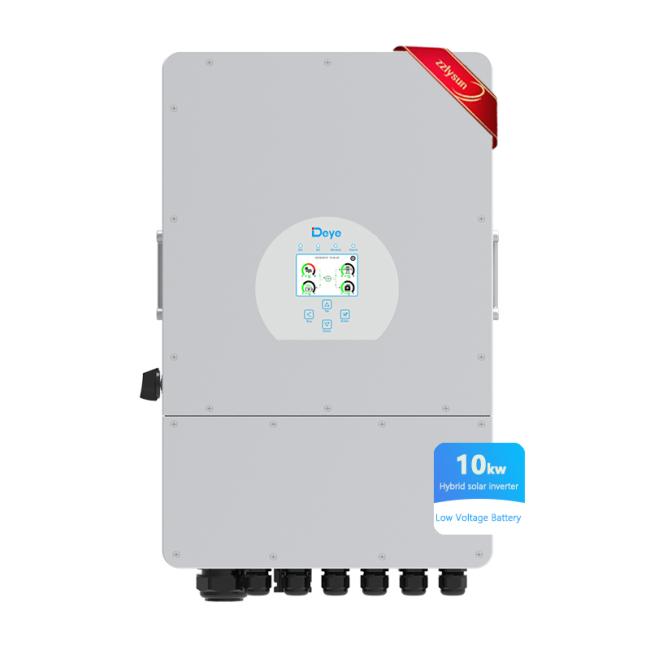

Inverter
|
Deye hybrid inverter 8kw
|
Deye hybrid inverter 10kw
|
|
Deye hybrid inverter 12kw
|
|||
|
Monitor
|
Wifi Module
|
Wifi Module
|
|
Wifi Module
|
|||
|
Battery
|
Lead Aid battery 48V 200ah
|
Lead Aid battery 48V 200ah
|
|
Lead Aid battery 48V 200ah
|
|||
|
Mounting System
|
Roof mounting/Ground mounting (Design by your requirement)
|
|
|
|
|||
|
Accessories
|
MC4 Connector,PV cable,Installations
|
|
|
|
|||
|
Product List
|
5kw hybrid solar system
|
6kw hybrid solar system
|
7kw hybrid solar system
|
||
|
PV module
|
455w*11pcs
|
455w*13pcs
|
455w*16pcs
|
||
|
PV combiner box
|
1 Input 1 output
|
1 Input 1 output
|
1 Input 1 output
|
||
|
Inverter
|
Deye hybrid inverter 5kw
|
Deye hybrid inverter 6kw
|
Deye hybrid inverter 7kw
|
||
|
Monitor
|
Wifi Module
|
Wifi Module
|
Wifi Module
|
||
|
Battery
|
Lead Aid battery 48V 200ah
|
Lead Aid battery 48V 200ah
|
Lead Aid battery 48V 200ah
|
||
|
Mounting System
|
Roof mounting/Ground mounting (Design by your requirement)
|
|
|
||
|
Accessories
|
MC4 Connector,PV cable,Installations
|
|
|
||
2.The quantity of Cell:144PCS
3.Solar cells size:166*83mm
4.Dimensions:2094x1038x35mm(LxWx H)
5.Open Circuit Voltage-Voc[V]:49.56V
6.Short Circuit Current-lsc[A]:11.32A
7.Max Power Voltage-Vmp[V]:41.21V
8.Max Power Current-lmp[A]:10.08A
9.Module Efficiency:20.47%
3.Solar cells size:166*83mm
4.Dimensions:2094x1038x35mm(LxWx H)
5.Open Circuit Voltage-Voc[V]:49.56V
6.Short Circuit Current-lsc[A]:11.32A
7.Max Power Voltage-Vmp[V]:41.21V
8.Max Power Current-lmp[A]:10.08A
9.Module Efficiency:20.47%
1. Rate Power: 5kw/6KW/7KW/8KW/10KW/12kw
2. MPP voltage range:160V-800V
3. AC Voltage Regulation:220V/380V,
2. MPP voltage range:160V-800V
3. AC Voltage Regulation:220V/380V,
4. AC grid frequency:50Hz/60Hz
5. Max PV Power:
5. Max PV Power:
5.5KW/6.5KW/7.8KW/10.4KW/13KW/15.6KW
6. Battery Type:Lead-acid or Lithium-ion
7. AC grid connection type:3W+N+PE
8. Battery Voltage Range (V):40~60V
9. No. of MPP trackers:2pcs
10. Max. input current per MPP tracker:13A
6. Battery Type:Lead-acid or Lithium-ion
7. AC grid connection type:3W+N+PE
8. Battery Voltage Range (V):40~60V
9. No. of MPP trackers:2pcs
10. Max. input current per MPP tracker:13A

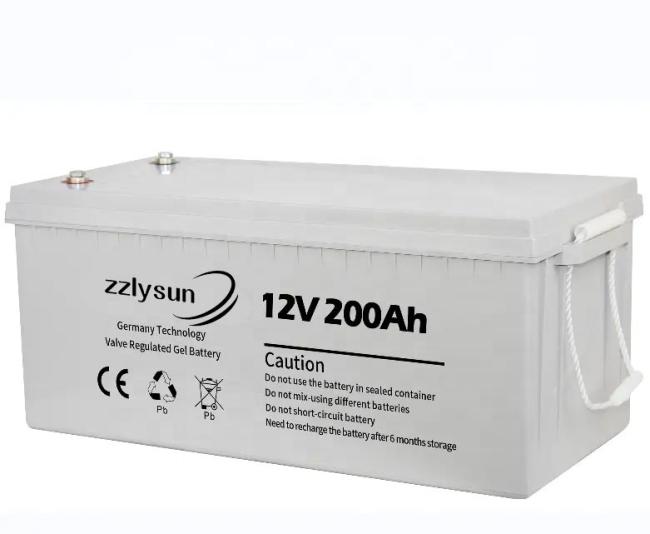

❖ Lead Aid Battery
* Voltage:12V
* Capacity:12V 100AH/12V 150AH/12V 200AH/12V 250AH/
* Capacity:12V 100AH/12V 150AH/12V 200AH/12V 250AH/
*Size:330*171*217/484*170*241/522*240*219/520*269*220/
* Solar and wind energy storage system
* EPS and UPS battery backup
* Solar and wind energy storage system
* EPS and UPS battery backup
* Signal system,emergency lighting system,security system
* Telecommunication euipment
* Power plant and transmission system
1. PV Combiner Box
(Anti-reverse/SPD/Fuse/Busbar
/Breaker 63A1000V)
2. MC4 Connector
Rated current: 30A Rated voltage: 1000VDC
3. PV DC Cable
4mm2 or 6mm2
4. Installation tolls
Wire Crimper, Stripper, MC4 Connector Wrench
(Anti-reverse/SPD/Fuse/Busbar
/Breaker 63A1000V)
2. MC4 Connector
Rated current: 30A Rated voltage: 1000VDC
3. PV DC Cable
4mm2 or 6mm2
4. Installation tolls
Wire Crimper, Stripper, MC4 Connector Wrench
2.Easy and flexible installation.
3.Diversified design
4.Light dead-weight
5.Save installation materials
4.Light dead-weight
5.Save installation materials
❖ Peak valley arbitrage model
The hybrid soar system are suitable for the country,which are the payment bill is expensive .The charging and discharging time of the battery is set.When the local grid price is in the peak stage ,the battery is discharged to the load,when the local grid price is in the trough stage,the battery will be charged by the power grid.
❖ Solar System
The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
❖ Quality gurantee
The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
❖ Plywood Package
The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!
❖ Certificate
1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
FAQ
1.What kind of product can you provide ?
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are
including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.
2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.
3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.
4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us freely.
5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your payment.
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are
including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.
2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.
3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.
4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us freely.
5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your payment.
