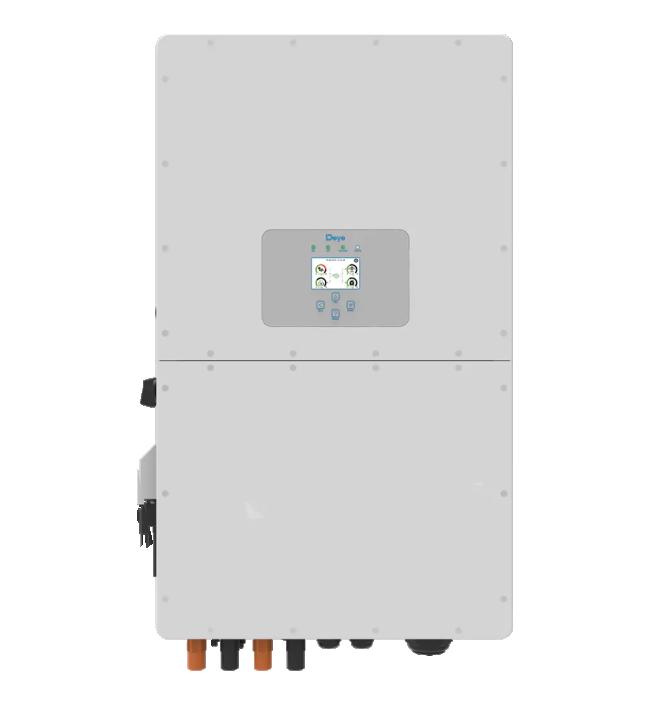

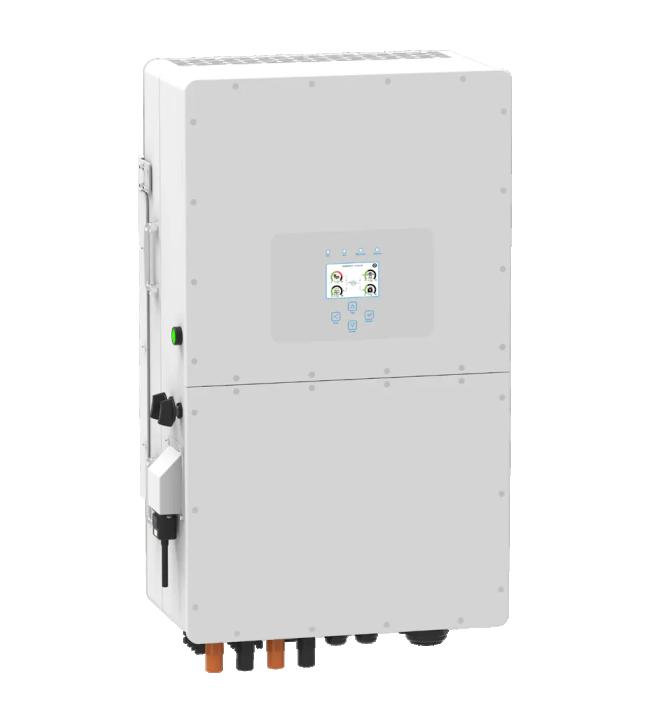

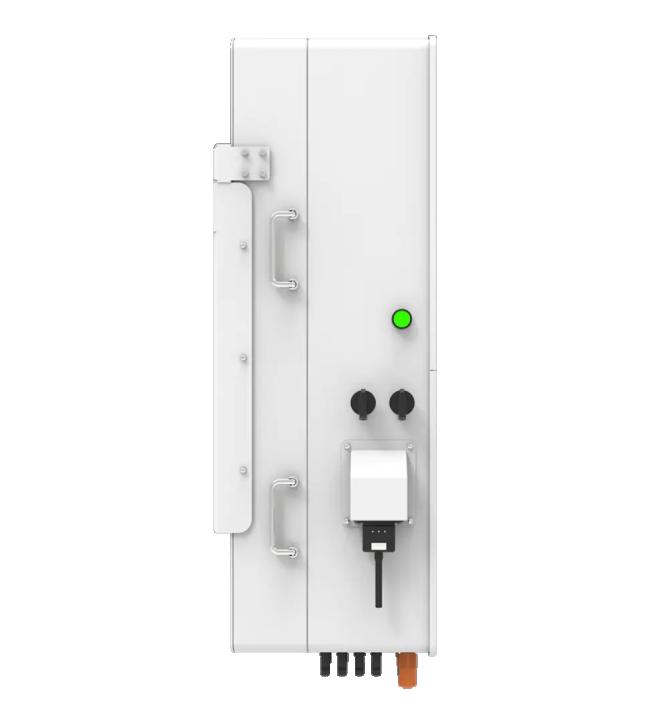

Three Phase Solar Panel Inverter 30KW With High Voltage Battery
Price:
$4,640.00/watts 1-4 watts
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Deye
Product Description
China wholesale inverter solar power system Deye Solar Inverter Grid 30kw hybrid inverter with high voltage battery
❖ General mode:
Commercial hybrid solar system will be used on the framland,residential community ,bus station,factory ,car parking and large ground power station.Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
❖ Description:

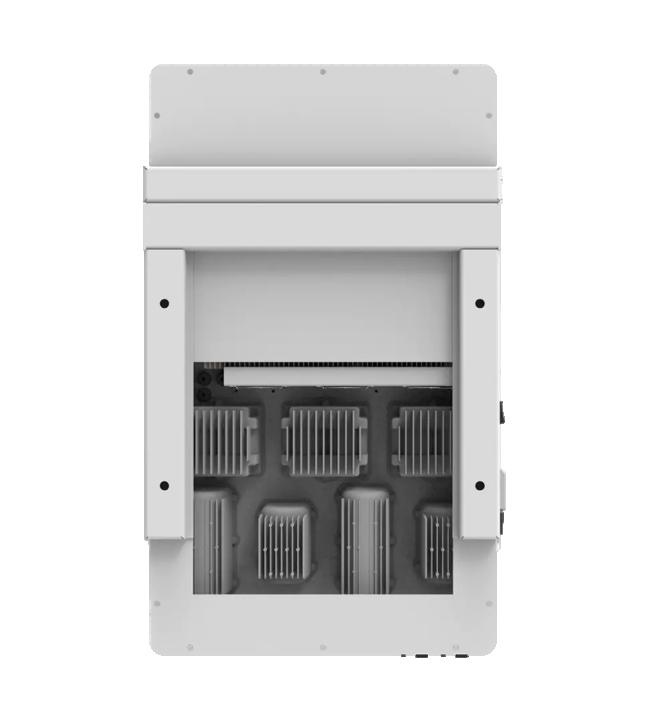

Deye hybrid solar inverter is brand new three phase hybrid inverter with High voltage battery 160-800V, ensuring system efficiency and less heat dissipation.With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.
|
Model
|
SUN-30K-SG01HP3
|
SUN-35K-SG01HP3
|
SUN-40K-SG01HP3
|
SUN-50K-SG01HP3
|
||||
|
Battery Input Data
|
|
|
|
|
||||
|
Battery Type
|
Lithium-ion
|
|
|
|
||||
|
Battery Voltage Range (V)
|
160~800
|
|
|
|
||||
|
Max. Charging Current (A)
|
50+50
|
|
|
|
||||
|
Max. Discharging Current (A)
|
50+50
|
|
|
|
||||
|
Number of battery input
|
2
|
|
|
|
||||
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
|
|
|
||||
|
PV String Input Data
|
|
|
|
|
||||
|
Max. DC Input Power (W)
|
39000
|
45500
|
52000
|
65000
|
||||
|
Max. DC Input Voltage (V)
|
1000
|
|
|
|
||||
|
Start-up Voltage (V)
|
180
|
|
|
|
||||
|
MPPT Range (V)
|
150-850
|
|
|
|
||||
|
Full Load DC Voltage Range (V)
|
360-850
|
|
|
|
||||
|
Rated DC Input Voltage (V)
|
600
|
|
|
|
||||
|
PV Input Current (A)
|
36+36+36
|
|
|
|
||||
|
Max. PV I (A)
|
55+55+55
|
|
|
|
||||
|
No.of MPP Trackers
|
3
|
4
|
4
|
4
|
||||
|
No.of Strings per MPP Tracker
|
2
|
|
|
|
||||
* 100% unbalanced output；each phase
* AC couple to retrofifit existing solar system
* Max. 10 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
* Max. charging/discharging current of 100A
* High voltage battery, higher efficiency
* 6 time periods for battery charging/discharging
* Support storing energy from diesel generator
* AC couple to retrofifit existing solar system
* Max. 10 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
* Max. charging/discharging current of 100A
* High voltage battery, higher efficiency
* 6 time periods for battery charging/discharging
* Support storing energy from diesel generator
* Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection.
*Output Shorted Protection, Surge Protection
❖ AC Output Data
* Rated AC Output and UPS Power (W):30kw/35kw/40kw/50kw
* Max. AC Output Power (W):33kw/38.5kw/44kw/55kw
* Peak Power (offff grid):1.5 time of rated power, 10 S
* Power Factor:0.8 leading to 0.8 lagging
* Output Frequency and Voltage:50/60Hz; 3L/N/PE 220/380, 230/400Vac
* Grid Type:Three Phase
* Total Harmonic Distortion (THD):<3% (of nominal power)
* DC current injection:<0.5% In
❖ Function
* Max. Effiffifficiency:97.60%
* Safety EMC / Standard:IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
* Operating Temperature Range (℃):-40~60℃, >45℃ derating
* Cooling:Smart cooling
* Communication with BMS:RS485; CAN
* Weight (kg):75kg
* Size (mm):527×894×294
* Protection Degree:IP65
* Installation Style:Wall-mounted
* Warranty:5 years

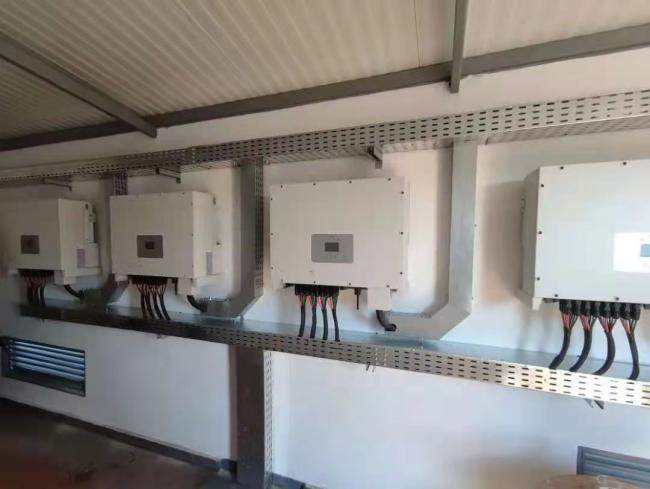

❖ Project
The home hybrid soar system is mainly suitable for applications where the power grid is unstable and there is an important load, or the photovoltaic self-use can not fed to the grid, the self-use price is much more expensive than the on-grid price, and the wave peak price is much more
expensive than the wave flat price.
expensive than the wave flat price.
❖ Exhibition
❖ Company
The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
❖ Quality gurantee
The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
❖ Plywood Package
The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!
❖ Certificate
1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
2.The solar inverter certificate is depend on the
different brand,the accurate certificate will be provided by us if you can contact with us directy.
different brand,the accurate certificate will be provided by us if you can contact with us directy.
FAQ
1.What kind of product can you provide ?
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are
including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.
2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.
3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.
4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality
problem,will let us freely.
5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your payment.
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are
including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.
2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.
3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.
4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality
problem,will let us freely.
5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your payment.
