High efficient mono photovoltaic half cut solar panels solar power module all black 390w solar panel
Price:
$0.22/watts 10000-99999 watts
MOQ:
10000 watts
Delivery Time:
Negotiable
Brand:
zzlysun
Product Description
❖ General mode：
Commercial solar system will be used on the framland,residential community ,bus station,factory ,car parking and large ground power station.
❖ Panel Solar Parameter
Type | (Black Solar Panel=390W~410W) | ||||||||
Peak Power Watts-PMAX (Wp) | 390W | 395W | 400W | 405W | 410W | ||||
Maximum Power Voltage-VMP(V) | 40.55 | 40.85 | 41.17 | 41.46 | 41.78 | ||||
Maximum Power Current-IMP(A) | 9.62 | 10.21 | 9.72 | 9.77 | 9.82 | ||||
Open Circuit Voltage-VOC(V) | 48.91 | 49.21 | 49.5 | 49.81 | 50.12 | ||||
Short Circuit Current-ISC(A) | 10.16 | 10.21 | 10.32 | 10.32 | 10.37 | ||||
Panel Effiiency | 0.195 | 0.198 | 0.203 | 0.203 | 0.205 | ||||

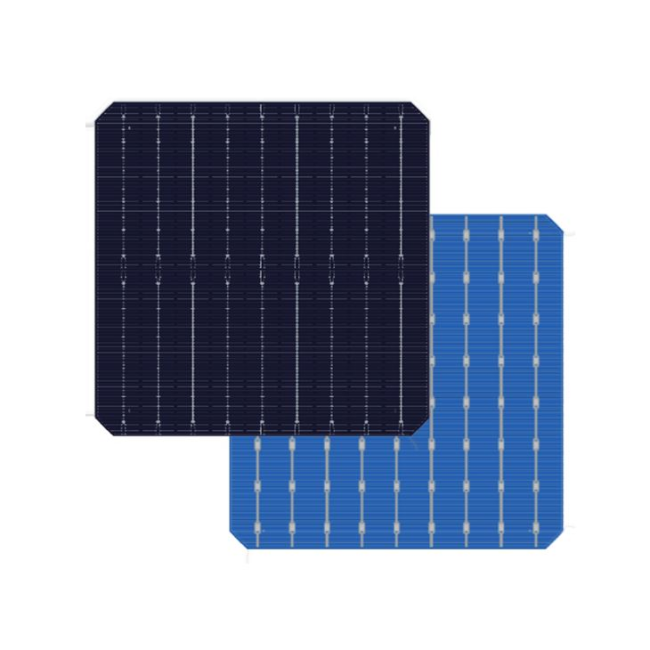

Cell Type | 158*79mm Monocrystalline solar cell | ||||||||
Size | 2008*996*35mm | ||||||||
Weight | 22.8KG | ||||||||

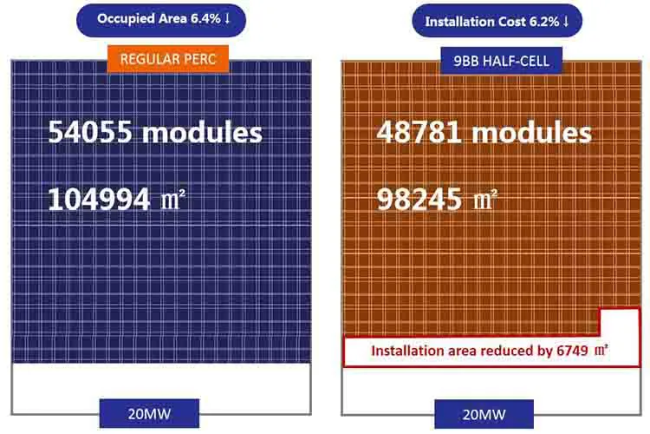

❖ Advantage 1
* larger receiving area, higher power output

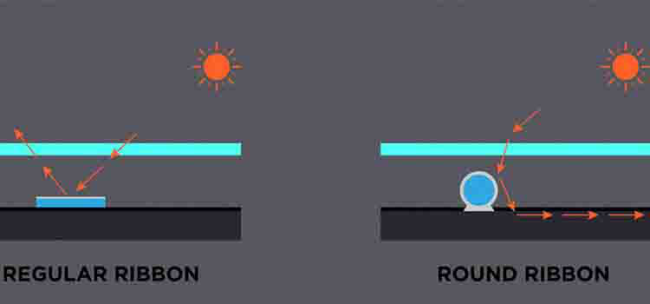

❖ Advantage 2
* Thinner busbars design, larger receiving area, higher power output
❖ Advantage 3
❖ Advantage 4
❖ Advantage 5

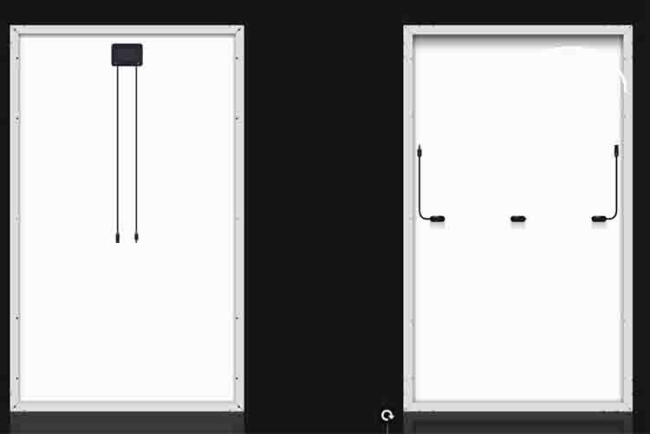

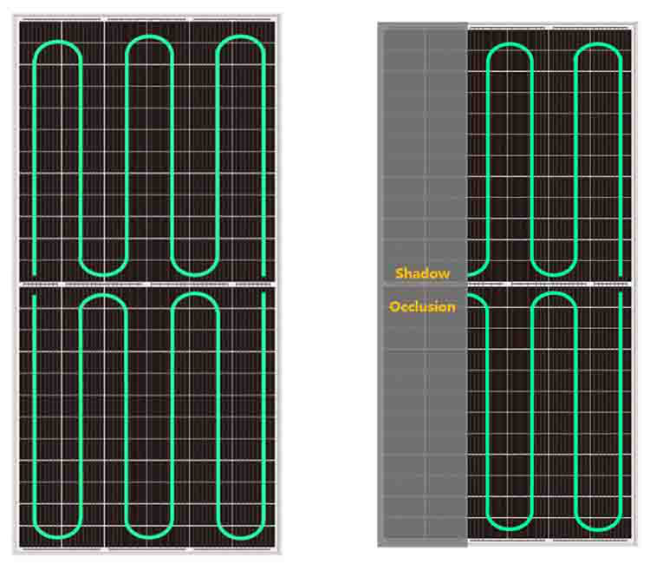

* Unique circuit design, Combination of series circuit and parallel circuit,Minimize shading effect , reduced internal power loss.❖ Advantage 6
❖ Advantage
The Commercial solar system will provide the customer with whole system integration solutions for development ,design,construction ,operation and maintenance.Any requirement for the accurate solutions,pls contact with our salesman directly.
❖ Company
The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
❖ Quality Guarantee

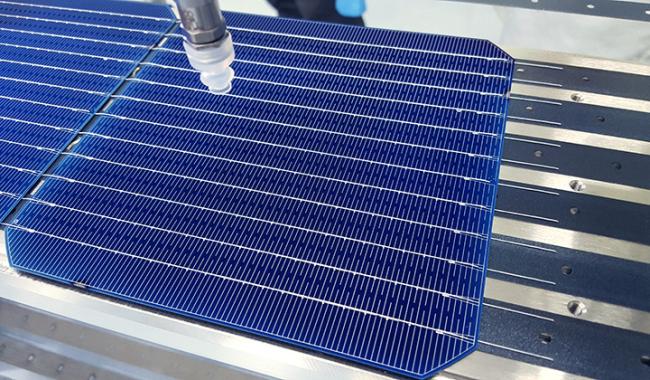

The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.

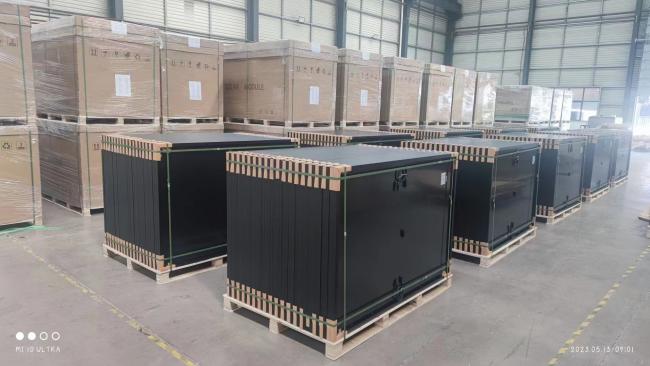

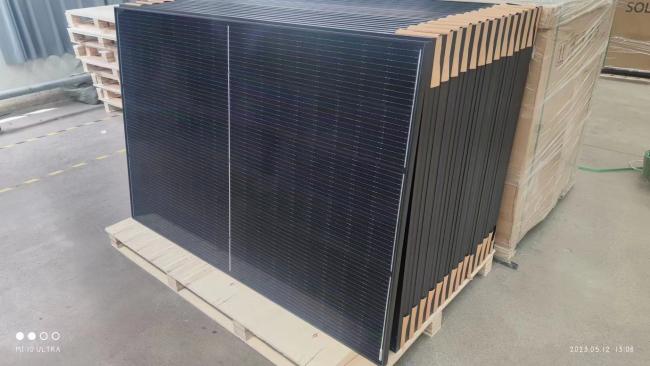

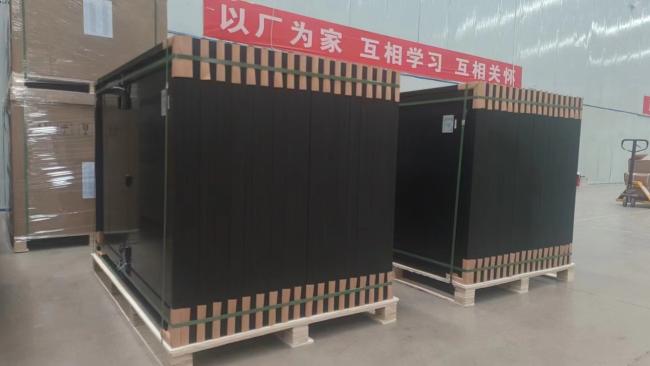

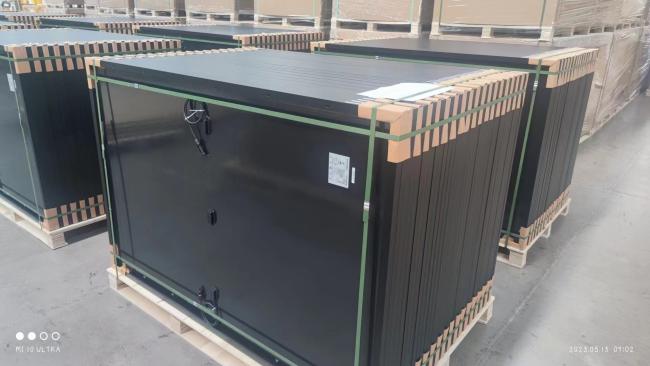

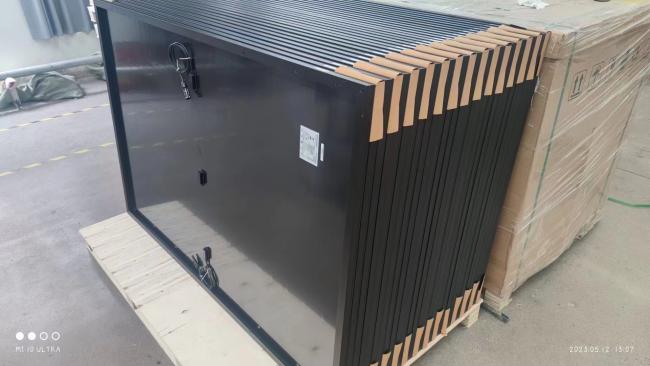

❖ Package&Shipping
❖ Certificate
1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
FAQ
1.What kind of product can you provide ?
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are
including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.
2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.
3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.
4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality
problem,will let us know freely.
5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your payment.
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are
including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.
2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.
3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.
4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality
problem,will let us know freely.
5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your payment.
