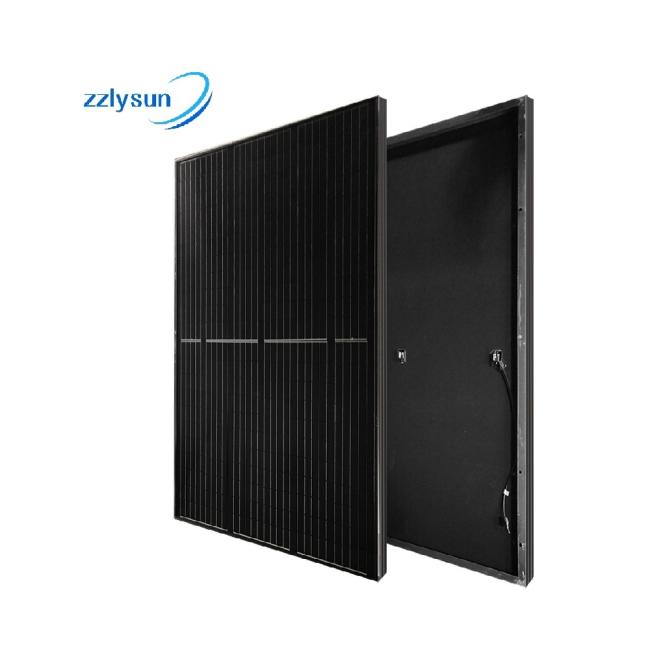

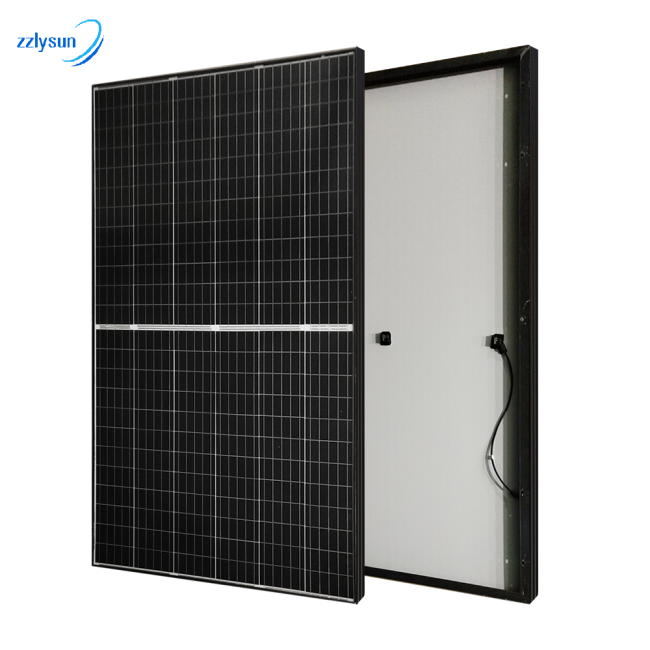

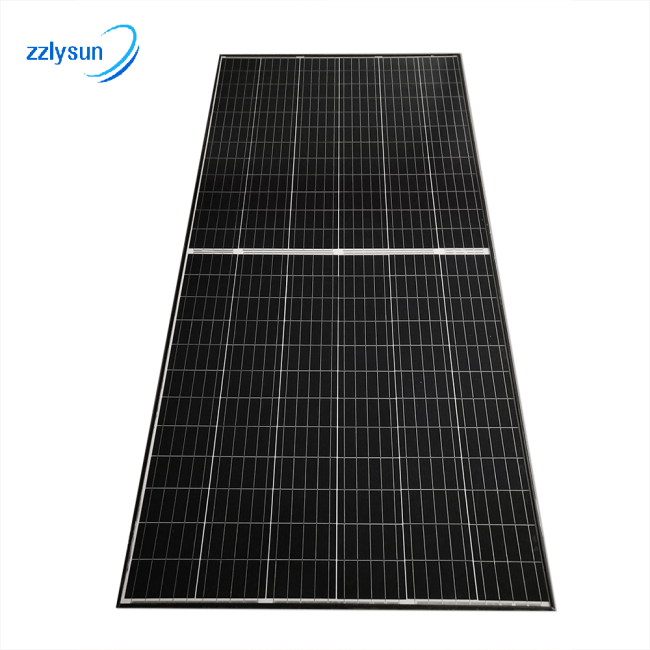

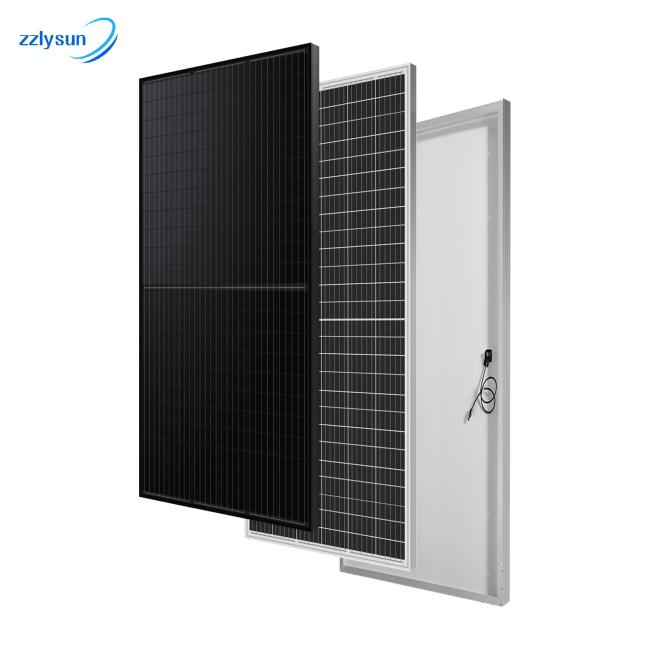

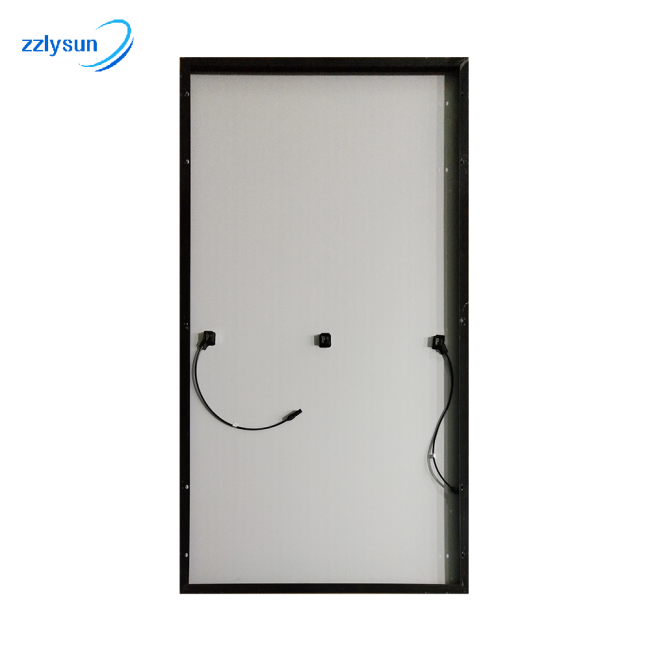

Wholesale high efficiency monocrystalline black 400watt pv solar module solar power panels for energy system
Price:
$0.23/watts 10000-99999 watts
MOQ:
10000 watts
Delivery Time:
Negotiable
Brand:
zzlysun
Product Description
Products Description
ELECTRICAL DATA(STC) | ||||||||||||
Module | Peak Power Watts (390-415W) | |||||||||||
Peak Power Watts(Pmax/W) | 390 | 395 | 400 | 405 | 410 | 415 | ||||||
Power Output Tolerance(W) | 0 ~ +5 | |||||||||||
Maximum Power Voltage(Vmp/V) | 40.55 | 40.85 | 41.17 | 41.46 | 41.78 | 41.85 | ||||||
Maximum Power Current(Imp/A) | 9.62 | 9.67 | 9.72 | 9.77 | 9.82 | 9.92 | ||||||
Open Circuit Voltage(Voc/V) | 48.91 | 49.21 | 49.5 | 49.81 | 50.12 | 50.22 | ||||||
Short Circuit Current(Isc/A) | 10.16 | 10.21 | 10.26 | 10.32 | 10.37 | 10.48 | ||||||
Module Efficiency(%) | 19.5 | 19.8 | 20 | 20.3 | 20.5 | 20.8 | ||||||
STC:Irradiance 1000W/m2, Cell Temperature 25°C, Air Mass AM1.5. *Measuring Tolerance: ±3%. | ||||||||||||
ELECTRICAL DATA(NOCT) | ||||||||||||
Module | Peak Power Watts (390-415W) | |||||||||||
Peak Power Watts(Pmax/W) | 289 | 292 | 296 | 300 | 303 | 305 | ||||||
Maximum Power Voltage(Vmp/V) | 37.29 | 37.52 | 37.76 | 38.03 | 38.28 | 38.42 | ||||||
Maximum Power Current(Imp/A) | 7.74 | 7.79 | 7.84 | 7.88 | 7.93 | 7.97 | ||||||
Open Circuit Voltage(Voc/V) | 45.04 | 45.3 | 45.56 | 45.81 | 46.06 | 46.22 | ||||||
Short Circuit Current(Isc/A) | 8.18 | 8.23 | 8.28 | 8.33 | 8.38 | 8.44 | ||||||
Product Categories
Company Profile
Packing and Shipping
FAQ
1.What kind of product can you provide ?
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.
2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.
3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.
4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us know freely.
5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your payment.
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.
2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.
3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.
4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us know freely.
5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your payment.
