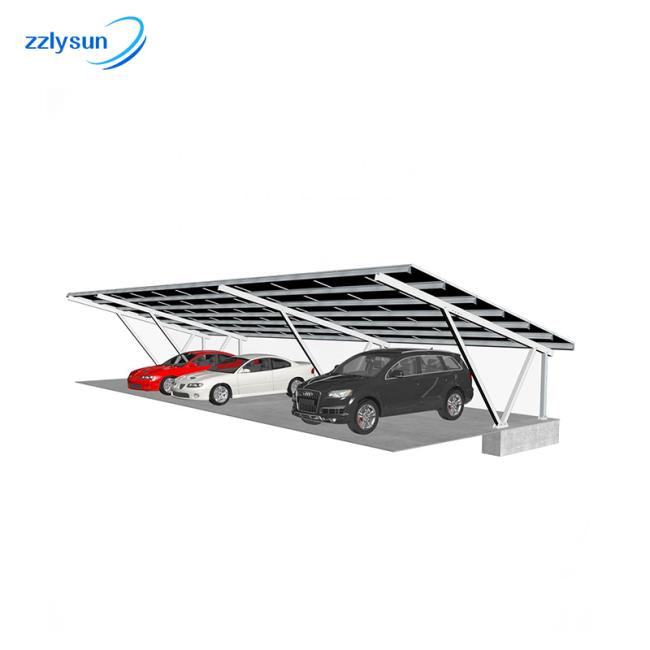

Industrial Renewable Energy Solar Panel 650W 660W 670W Carport Solar Panel
Price:
$0.21/pallets 1-19 pallets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
zzlysun
Product Description
Solar Panels System Industrial Solar Panels 650W 660W 670W Solar panel Carport
❖ General mode:
Commercial solar system will be used on the framland,residential community ,bus station,factory ,car parking and large ground power station.
|
ITEM
|
MECHANICAL CHARACTERISTICS
|
|
Dimensions
|
2384x1303x35mm(LxWx H)
|
|
Weight
|
34kg
|
|
Front Glass
|
3.2mm high transmisson tempered glass
|
|
Encapsulation
|
EVA
|
|
Cells
|
132pcs 210*105mm Monocrystalline solar cells
|
|
Frame
|
Anodized Aluminium Alloy (silver or black)
|
|
Junction Box
|
Rated current:25A,IP68,TUV
|
|
Connector
|
Compatible with MC4
|
|
Backsheet
|
Composite film
|
|
Cable
|
Length Negative 400mm/Positive 300mm
|
|
ELECTRICAL CHARACTERISTICS AT STANDARD TEST CONDITIONS(STC)
|
|
|
|
|
|
|||||
|
Module Power
|
650W
|
655W
|
660W
|
665W
|
670W
|
|||||
|
Open Circuit Voltage-Voc[V]
|
45.29
|
45.49
|
45.69
|
45.89
|
46.09
|
|||||
|
Short Circuit Current-lsc[A]
|
18.43
|
18.49
|
18.52
|
18.58
|
18.63
|
|||||
|
Max Power Voltage-Vmp[V]
|
37.39
|
37.59
|
37.79
|
37.99
|
38.19
|
|||||
|
Max Power Current-lmp[A]
|
17.39
|
17.43
|
17.47
|
17.51
|
17.55
|
|||||
|
Module Efficiency-p[%]
|
20.92
|
21.09
|
21.25
|
21.41
|
21.57
|
|||||
❖ Advantage
The Commercial solar system will provide the customer with whole system integration solutions for development ,design,construction ,operation and maintenance.Any requirement for the accurate solutions,pls contact with our salesman directly.
❖Company
The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
❖ Quality gurantee
The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
❖ Plywood Package
The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!
❖ Certificate
1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
FAQ
1.What kind of product can you provide ?
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.
2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.
3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.
4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us know freely.
5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your payment.
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.
2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.
3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.
4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us know freely.
5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your payment.
