Illumination Explosion Proof Alarm Light ATEX Led Ceiling Light 100W 200W 250W 400W HID
Price:
$25
MOQ:
1 pcs
Delivery Time:
5-8 work days
Brand:
JJ Exproof
Product Description
ATEX Zone 1 and Zone 2 Led Ceiling Light 100W 200W 250W 400W HID Explosion Proof illumination Lamp Hanging Ex Lamps
Description

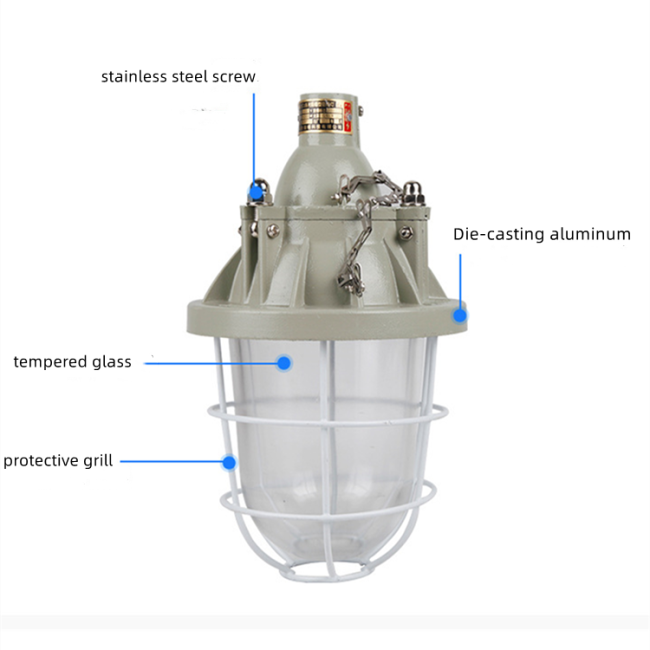

1. Using aluminum alloy casting and high-voltage electrostatic spray after surface shot blasting
2. The finned structure shell
reduces the temperature with heat dissipation
reduces the temperature with heat dissipation
3. The protection net adopts high-voltage electrostatic spray after galvanizing,
which has good anti-corrosion performance
which has good anti-corrosion performance
4. The transparent parts are made of high-strength tempered glass with good light
transmission
transmission
5. The exposed fasteners are made of stainless steel with high corrosion resistance
6. The flameproof joint surface
of the lamp is equipped with an "O" type sealing ring, which has good waterproof performance
of the lamp is equipped with an "O" type sealing ring, which has good waterproof performance
7. Fastened with hinged bolts, can be opened quickly, easy to install and maintain.
| Model | BCD-100 | BCD-200 | BCD-250 | BCD-400 |
| Ex mark | II 2G Ex d IIC T3 Gb; II 2D Ex tb Db | |||
| Voltage | AC 220V, 50~60Hz | |||
| Degree of Protection | IP65 | |||
| Conduit Entries | G3/4'' | |||
| Lamp Holder | E27 | E27 | E27 | E40 |
| Metal Hailde Lamp | / | 70/100/150/175W | 250W | 400W |
| High Pressure Sodium Lamp | / | 70/100/150/175W | 250W | 400W |
| High Pressure Mercury Lamp | / | 80/125/160W | 175/250W | 400/450W |
| Energy Saving Bulb | 15W | 36W | 105W | 150W |
| LED Bulb | 8W | 15W | 36W | / |
| Net Weight | 1.4KG | 2.0KG | 3.8KG | 6.3KG |
| Mounting Systems | Pendant; Ceiling; Wall Bracket; Stanchion | |||
Feature
1. Zone 1&2, Zone 21&22
2. Housing is made of die-cast aluminum, with epoxy sprayed
3. Tempered glass shade, stainless steel exposed fasteners, with galvanized and epoxy coated guard
4. Rotary opening, easy installation and maintenance
5. Optional lamp shade
Applications

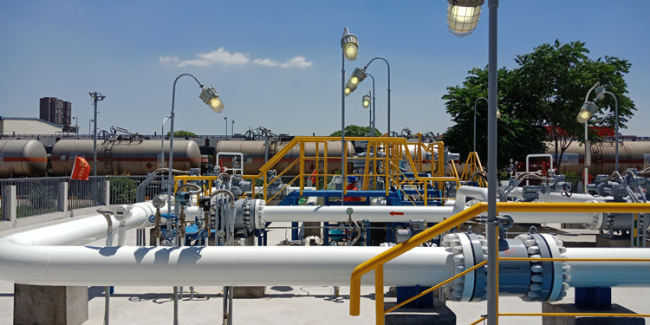

1. A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
2. Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
3. Areas with high energy costs
4. Typical applications include: Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
1. A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
2. Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
3. Areas with high energy costs
4. Typical applications include: Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
