Inline Garage Explosion Proof Extractor Fan Atex Approved Extractor Fans
Inline Garage Explosion Proof Exhaust Fan Atex Approved Extractor Fans
China Supplier Axial Flow Ventilation Exhaust AXIAL BLOWER FAN
Strong Frame
The structural parts made of high quality steel sheet by punching .
Good rigidity ,light weight ,beautiful and easy to in stall .
Large air volume ,low noise , smooth running ,safe and reliable .
High Quality Motor
The motor adopts cold-rolled silicon steel sheet ,copper wire ,less than 50K temperature rise design ,with excellent overload capacity
The motor uses high quality low noise ball bearing and built-in re-settable thermal protector to ensure stable operation and long service life .
Metal Blades
Thickened cast steel blade
Advanced spraying process , keep clean and long time
Temperature resistance

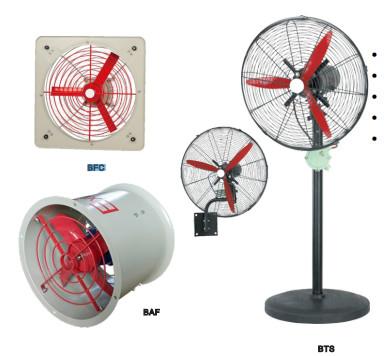

| Type | BAF Type | BAF Type | BTS Type |
| Ex rate | Ex d IIB T4 Gb | ||
| Degree of protection | IP54 | ||
| Rate voltage | 220V/380V AC | ||
| Size of blade(mm) | 300,400,500,600 | 315,400,500,600 | 500,600,750 |
| Power consumption(W) | 120,180,250,370 | 180,250,550,750,1500 | 370,550,750 |
| Air volume(m³/min) | 2200,2400,4900,9500 | 2273,4687,9133,18250 | 6000,9600,18000 |
Applications for Explosion Proof Axial Flow Fan:
— A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
— Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
— Areas with high energy costs
— Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation

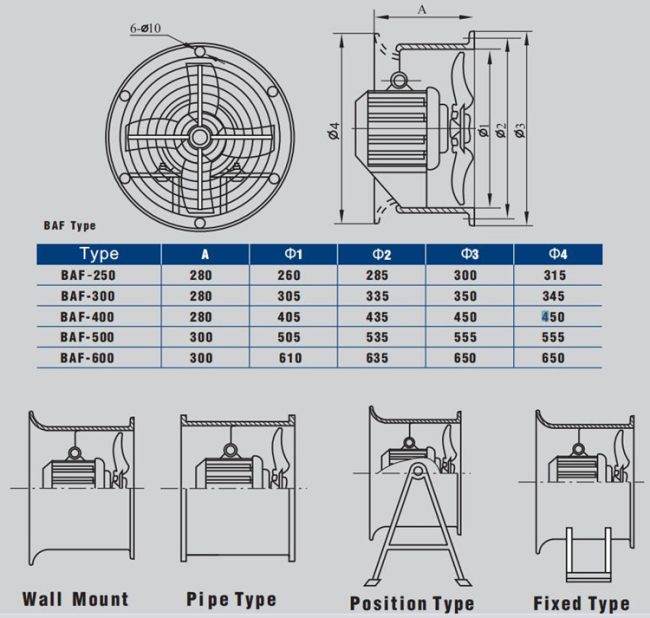

Installation for Axial Flow Fan and Blower:
-Wall Mount
-Pipe Type
-Position Type
-Fixed Type
FAQ:
Q: What qualifications does your company have ?
A:Authorization of “AAA Grade Credit Enterprise” from Government
Q: Can I get qualified products? I do not want any shortage , damaged products
A: Professional Q.C. (quality control) Team & Testing Equipment Correspondent and Effective CCS, MED, CE Certificates
Exclusive and Famous Brand” KENPO,SEMPO,HOBOND,FASEAL ,GLM”
Q: How long is the delivery time?
A:1~15days Quick Delivery Time . Abundant Stock Items at Hand Big Stock Capacity Guarantee (10000㎡-Warehouse)Various Logistics Option(DHL, TNT, Rail/Air/Sea Freight)
