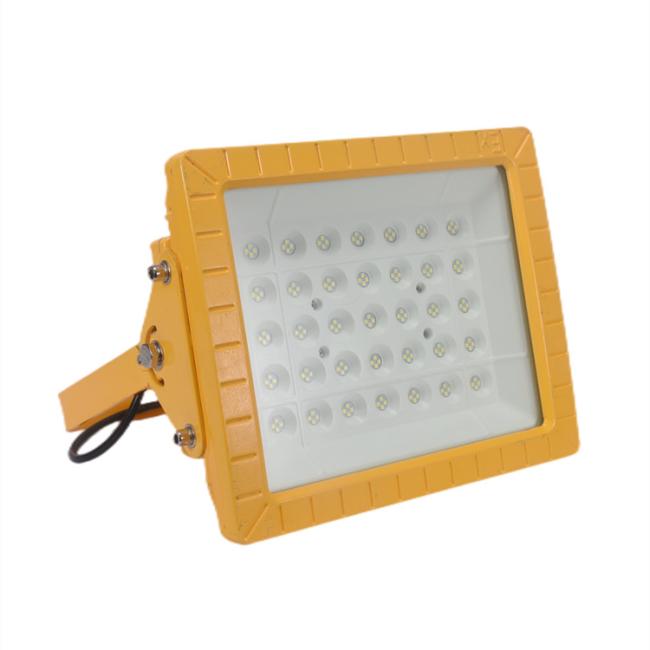

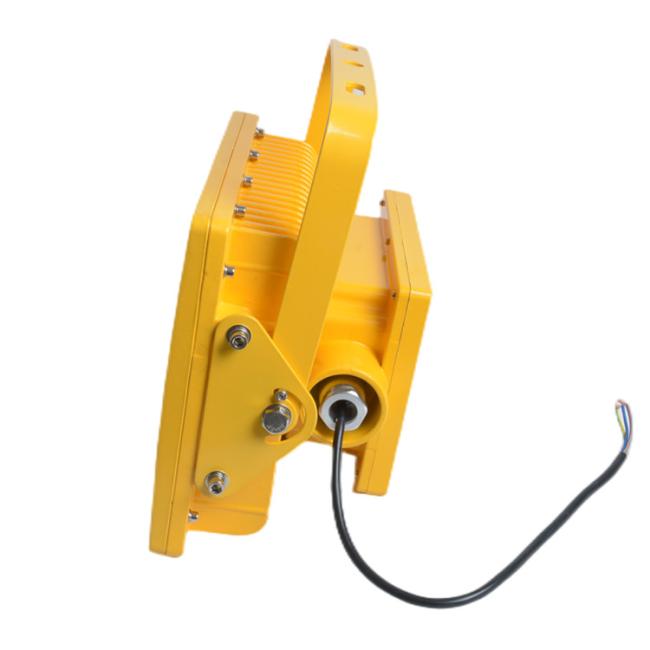

Hazardous Area 85-265v ATEX 200w Explosion Proof Fluorescent Light Fixture
Hazardous Area 85-265v ATEX High Mast Lighting Fixture 200w Explosion Proof LED Flood Lights
Features:
1. The radiator is designed to be made of special cast aluminum alloy by die-casting, and its surface is sprayed with high voltage static electricity;
2. Exposed stainless steel fasteners with high corrosion resistance;
3. Separate structure of light source cavity and power supply cavity;
4. Specially designed light distribution system, with high light utilization rate, reasonable light distribution, uniform illumination and no glare;
5. The junction box is of labyrinth structure, equipped with silicone rubber sealing strip, firmly pasted, and of high protection grade;
6. Toughened glass made of high-strength material, with strong impact resistance, thermal shock resistance and high light transmittance;
7. The constant current power supply has wide voltage input and constant current output, and has the protection functions of shunt, surge prevention, overcurrent, open circuit, open circuit, high temperature, anti electromagnetic interference, etc;
8. Power factor cos φ ≥0.95；
Specification:
| Surface color | Yellow, Grey or customized |
| Product name | LED explosion proof light |
| Power | 50W 70W 80W 100W 120W 150W 200W 300w 400w |
| Beam Angle | 120° |
| IP Rating | IP65 |
| PF | ≥0.95 |
| CRI (Ra>) |
80 |
| Lamp Luminous Efficiency(lm/w) | 125 |
| Working Temperature(℃) | -25℃~45℃ |
| Material | aluminum |
| LED chip | SMD3030 |
| Warranty | 3/5 years |
| Input Voltage(V) | AC85-265V |
| Color Temperature | 2700-6500K |
| Frequency Range | 50/60HZ |
Application:
1. A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
2. Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
3. Areas with high energy costs
4. Typical applications include: Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Company introduction:
Changzhou JUJUN Ex-proof company is a professional LED lighting manufacturer and it founded in 2011, Specialized in explosion proof led lights, strobe and sounder light, plug and sockets, junction boxes, switches, push buttons, exhuast fan, axial flow fan and so on.
There are 30,00 square meters of factory buildings. With over 10 years of lighting experience, profound industry knowledge in the field of the explosion proof light, appliances etc.
FAQ:
Q1. Can I have a sample order for explosion proof led light ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time of explosion proof led light?
A:Sample needs 5-7 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for explosion proof led light?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 7-10 days to arrive. Airline and sea shipping also optional.
Q5: Do you offer guarantee for explosion proof led light?
A: Yes, we offer 3-5 years warranty to our products.
Q6: is OEM or ODM available for explosion proof led light?
A: Yes
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
Products details:
