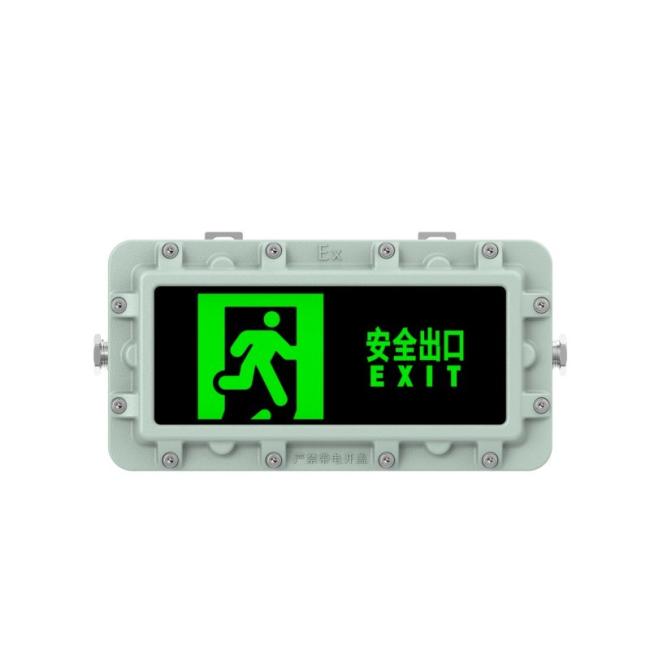

Aluminum Emergency Explosion Proof Exit Lights Signs 5w Atex Exit Sign Light
Aluminum explosion proof emergency lamp exit signs 5w with atex exit sign light
Product details:
1,Cree LED source
3,Anticorrosion grade wf2
5,start-up time less than 0.2S
Features:
1. The radiator is designed to be made of special cast aluminum alloy by die-casting, and its surface is sprayed with high voltage static electricity;
2. Exposed stainless steel fasteners with high corrosion resistance;
3. Separate structure of light source cavity and power supply cavity;
4. Specially designed light distribution system, with high light utilization rate, reasonable light distribution, uniform illumination and no glare;
5. The junction box is of labyrinth structure, equipped with silicone rubber sealing strip, firmly pasted, and of high protection grade;
6. Toughened glass made of high-strength material, with strong impact resistance, thermal shock resistance and high light transmittance;
7. The constant current power supply has wide voltage input and constant current output, and has the protection functions of shunt, surge prevention, overcurrent, open circuit, open circuit, high temperature, anti electromagnetic interference, etc;
8. The combined emergency device can be equipped according to the use requirements. When the power supply is cut off, it can automatically switch to the emergency lighting state;
9. Cable routing.
Specification:
| Specification | |
| Ex Marking | II 2GD Ex d e IIC T6 Gb |
| Classification | Group II, Catogory 2 GD; Class I, Division 1 and 2, Group A,B,C,D; |
| IP Degree | IP65 / IP54 |
| Charging time | 24 hours |
| Input voltage | AC220V / DC24V / DC36V |
| Wattage | 3W |
| Emergency time | 90mins |
| Conduit entries | G3/4 |
| Mounting style | wall, bracket, ceiling |
| Weight | 2kgs |
Company introduction:
Changzhou JUJUN Ex-proof company is a professional LED lighting manufacturer and it founded in 2011, Specialized in explosion proof led lights, strobe and sounder light, plug and sockets, switches, push buttons, exhuast fan, axial flow fan and so on.
There are 30,00 square meters of factory buildings. With over 10 years of lighting experience, profound industry knowledge in the field of the explosion proof light, appliances etc.
