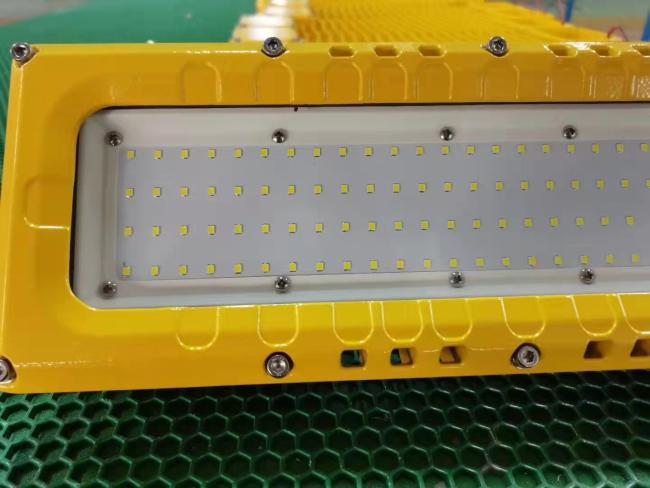

230 Vac Explosion Proof LED Lighting Aluminum ATEX 100w Linear Light Fixtures
Aluminum ATEX 100w Linear Light Fixtures 230 Vac Explosion Proof LED Lighting
Features:
1. The radiator is designed to be made of special cast aluminum alloy by die-casting, and its surface is sprayed with high voltage static electricity;
2. Exposed stainless steel fasteners with high corrosion resistance;
3. Separate structure of light source cavity and power supply cavity;
4. Specially designed light distribution system, with high light utilization rate, reasonable light distribution, uniform illumination and no glare;
5. The junction box is of labyrinth structure, equipped with silicone rubber sealing strip, firmly pasted, and of high protection grade;
6. Toughened glass made of high-strength material, with strong impact resistance, thermal shock resistance and high light transmittance;
7. Power factor cos φ ≥0.95；
8. The combined emergency device can be equipped according to the use requirements. When the power supply is cut off, it can automatically switch to the emergency lighting state;
Specification:
| Explosion protection | |||
| Ex Mark | II 2G Ex d e IIC T6 | ||
| For use in | Zone 1, 2 & Zone 21, 22 | ||
| Electrical data | |||
| Rated voltage | 100-240VAC, 50Hz | ||
| Power factor | ＞0.95 | ||
| THD | ＜20% | ||
| Luminous characteristics | |||
| Power consumption [W] | 20-40 | 40-60 | 60-80 |
| Colour rendering [CRI] | 80±2 | ||
| Colour temperature [K] | 3000~6700 | ||
| Luminaire efficiency [Lm/W] | 115~135 | ||
| Beam angle | 115° | ||
| Mechanical data | |||
| Degree of protection | IP65 | ||
| Cable entry | G3/4" | ||
| Weight [kg] | 3.8 | 6 | 8.1 |
| Terminal | ≤2.5 mm² | ||
| Mounting Styles | Ceiling; Wall Bracket; Pendant | ||
Application:
1. A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present;
2. Areas requiring frequent on-and-off of lights or power cycling- no warm up time required;
3. Areas with high energy costs;
4. It is applicable to the places in Zone 1 and Zone 2 of explosive gas environment;
5. It is applicable to the places in Zone 21 and 22 of combustible dust environment;
6. Suitable for IIA, IIB and IIC explosive gas environment;
7. Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Company introduction:
Changzhou JUJUN Ex-proof company is a professional LED lighting manufacturer and it founded in 2011, Specialized in explosion proof led lights, strobe and sounder light, plug and sockets, switches, push buttons, exhuast fan, axial flow fan and so on.
There are 30,00 square meters of factory buildings. With over 10 years of lighting experience, profound industry knowledge in the field of the explosion proof light, appliances etc.
Welcome customers to visit our factory.
FAQ:
Q:What certificates do you have for explosion proof led light fixture?
A:We have passed ATEX.
Q:What place are your products used in?
A:They are widely used in petroleum chemical, aerospace, coal electrical power, railway, metallurgy, shipbuilding, medicine, marine, wine-making, fire fighting, municipal and other industries.
Q:Can I have a sample order for explosion proof led light fixture?
A:Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q:Can you accept OEM or ODM for explosion proof led lighting?
A:Yes. Please inform us and confirm the design firstly based on our sample.
Q: Do you offer guarantee for explosion proof led light?
A: Yes, we offer 3-5 years warranty to our products.
Q: is OEM or ODM available for explosion proof led light?
A: Yes
